| Prod Model: |
RSM-100/I4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Rtc |
| Model: |
Rsm-100 |
| Radio Brand: |
Icom |
| Radio Model: |
IC-F50/IC-F51/IC-F61/IC-F30gt/IC-F30GS/IC-F31g/IC- |
| Application: |
Voice |
| Signal Transmission: |
Wired |
| Directivity: |
Omni-direction |
Product Description

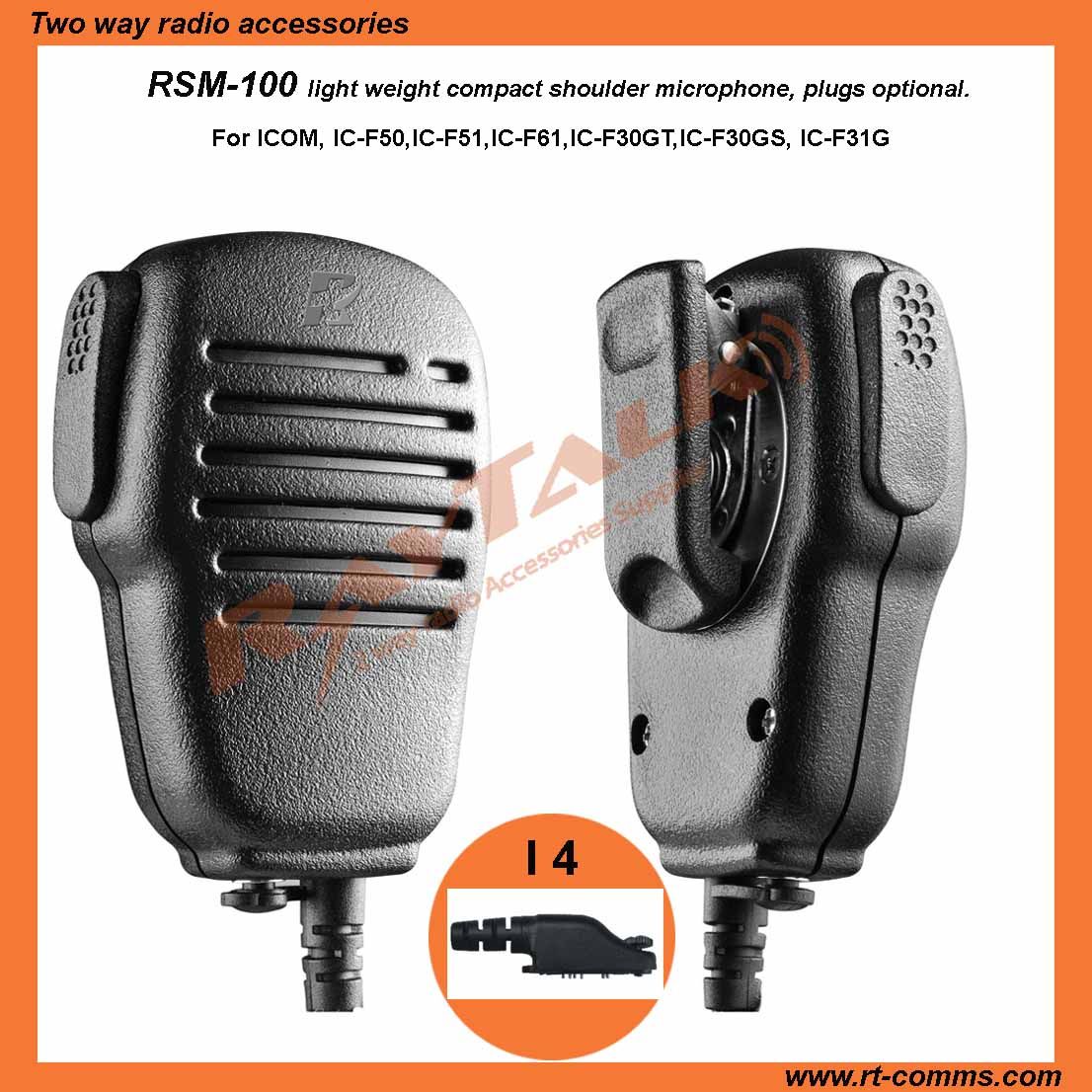

RSM-100 Remote Shoulder SPEAKER MICROPHONE for Icom
IC-F50/IC-F51/IC-F61/IC-F30GT/IC-F30GS/IC-F31G/IC-M87/IC-M88
Feature
· Professional grade
· Environmental PU cable with Kevlar™ Re-enforcement
· High quality components for superior audio
· Heavy duty strain relief
· Wind, water, impact & dust resistant
· Standard 3.5mm accessory jack
Microphone:
Sensitivity: -36dB± 3dB @ 1000Hz(0dB=1V/Pa)
Impedance: 2.2KΩ @ 1KHz
Operating Voltage" 1.1-10VDC | Speaker:
Dimensions: Φ 45mm
Impedance: 8Ω ±15% @ 1000Hz
Rated Input Power: 500mW
Sound Pressure Leavel: 103 4dB @ 1KHz
|
Robust, slim-line, lightweight traditional lapel worn speaker/microphone.
High quality audio reproduction with the option to fit an earphone via the 3.5mm socket.
Kevlar lined for added strength and longevity
Water resistant with a 8 way robust metal clothing clip and extremely durable coil cable.
Microphone Specifications
Dimension: Ø 9.7 X 6.5mm
Sensitivity: -40 ± 3dB
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Current Consumption: 500A
Working Voltage: 1.5V
Audio Response: 50Hz 10kHz
Speaker Specifications
Dimension: Ø 36mm
Impedance: 8 Ω ± 15%
Output Sound Pressure Level: 80± 3dB
Power Rating: Normal. 05W
Maximum 1W
Frequency Range: 280Hz-6kHz average
SPL-10dB
Cable Specifications
Cable Diameter: Ø 3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes
Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone
Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc
