| Prod Model: |
PH-100AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Pilot Helicopter Helmet Headset |
| Communication: |
Wired |
| Connectors: |
Nexus Connector |
| Use For: |
Aviation,Pilot,Airline,Helicopter,etc |
| Function 1: |
Microphone, Noise Cancelling |
| Earphone Plug: |
Pj-055( .25"F6.3 Phone Plug) |
| Microphone Plug: |
Pj-068( .206"F5.2 Phone Plug) |
| Operating Temperature: |
-20 to 70 °c |
| Weight: |
530g |
| Warranty: |
12 Months |
| Style: |
Headband |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Use: |
Industrial |
| Earpad Size: |
Medium |
| Wire Material: |
PU |
| Jack Type: |
Nexus Plug |
| Color: |
8 Colors, Black, Green, Blue, Red, Pink, Yellow |
Product Description

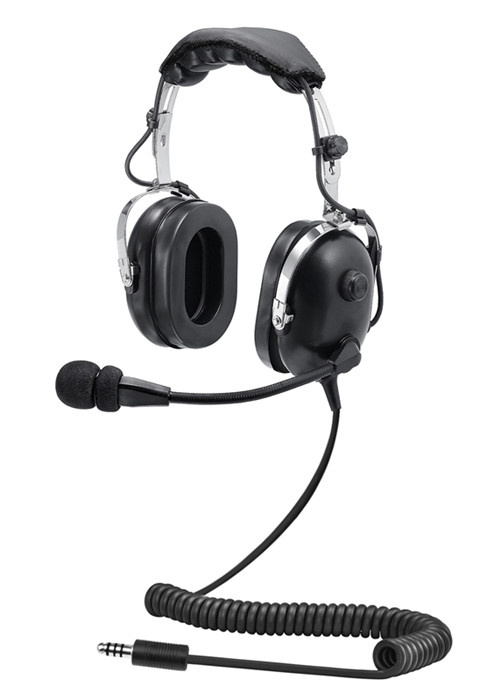

Pilot helicopter helmet headset
Product Description: 1. Over the head style
2. Soft,Air-Flow head pad
3. PNR Noise Reduction Rating:24 dB
4. Standard foam ear pads,Gel ear pads optional
5. Nexus plugs
6. One year warranty,when order up to 50pcs,free logo is welcome
7. 8 colors are avialable: Black,blue,grey,green,white,yellow,red,pink
8. Spare parts available
Features and Applications
Helicopter Series
RAN-1000AH PNR Aviation headset
Overview
PNR Aviation Headset
Helicopter Use U174/U Plug
Super Soft Double Foam Head Pad
Noise-canceling electret Microphone
Strong Steel Boom for perfect microphone placement
Easy-to-wear super soft silicone gel ear seals
Headband Size Adjustment
Coiled cord from headset to molded plug, 70CM
Assembled strictly following the FAA TSO standards
Color: Black, green
Noise Reduction Ratings (NRR):24dB
Specifications
Headphone
Type: Dynamic (F50)
Frequency Response:100Hz to 8 kHz
Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup
side) full volume on ear simulator
Impedance:150 ohms (300 ohms each; wired in parallel)
Rate Input:100mW
Max. Input: 250mW
Microphone and Amplifier
Element Type: Noise-canceling electret
Frequency Response:100Hz to 5 kHz
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity:-33+/-4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC
load) | General
Operating Temperature: -20 to 70°C
Cordage: RAN-1000AH Coiled cord from headset
to molded plug, 70CM
Intercom Connections Plug: U174/U
Weights: RAN-1000AH ----570g
Noise Reduction Specifications:
Attenuation Frequency Band: 20Hz~20KHz
Main Attenuation Frequency Band: 20Hz~600Hz
Attenuation Capability: 18~21dB
Power Consumption: 30 mW
Headset size range Height: 10 to 14 cm |

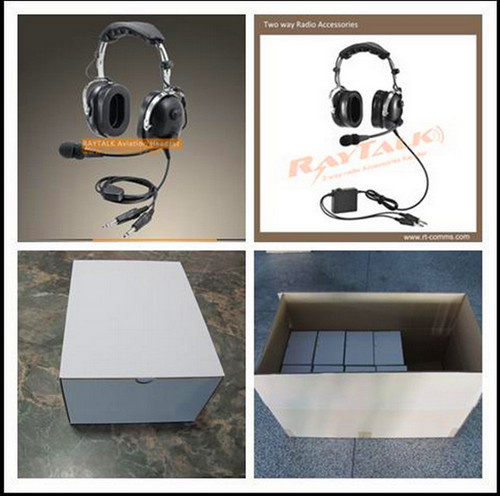

Package:
