| Prod Model: |
PH-100AC |
| Warranty: |
12 Months |
| Style: |
Headband |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
One Size |
| Wire Material: |
PU |
| Jack Type: |
Avaition Headset Plug |
| Use: |
Piloter |
| Color: |
Black,Blue,Yellow,Green,Gray,Pink,Red,White |
Product Description

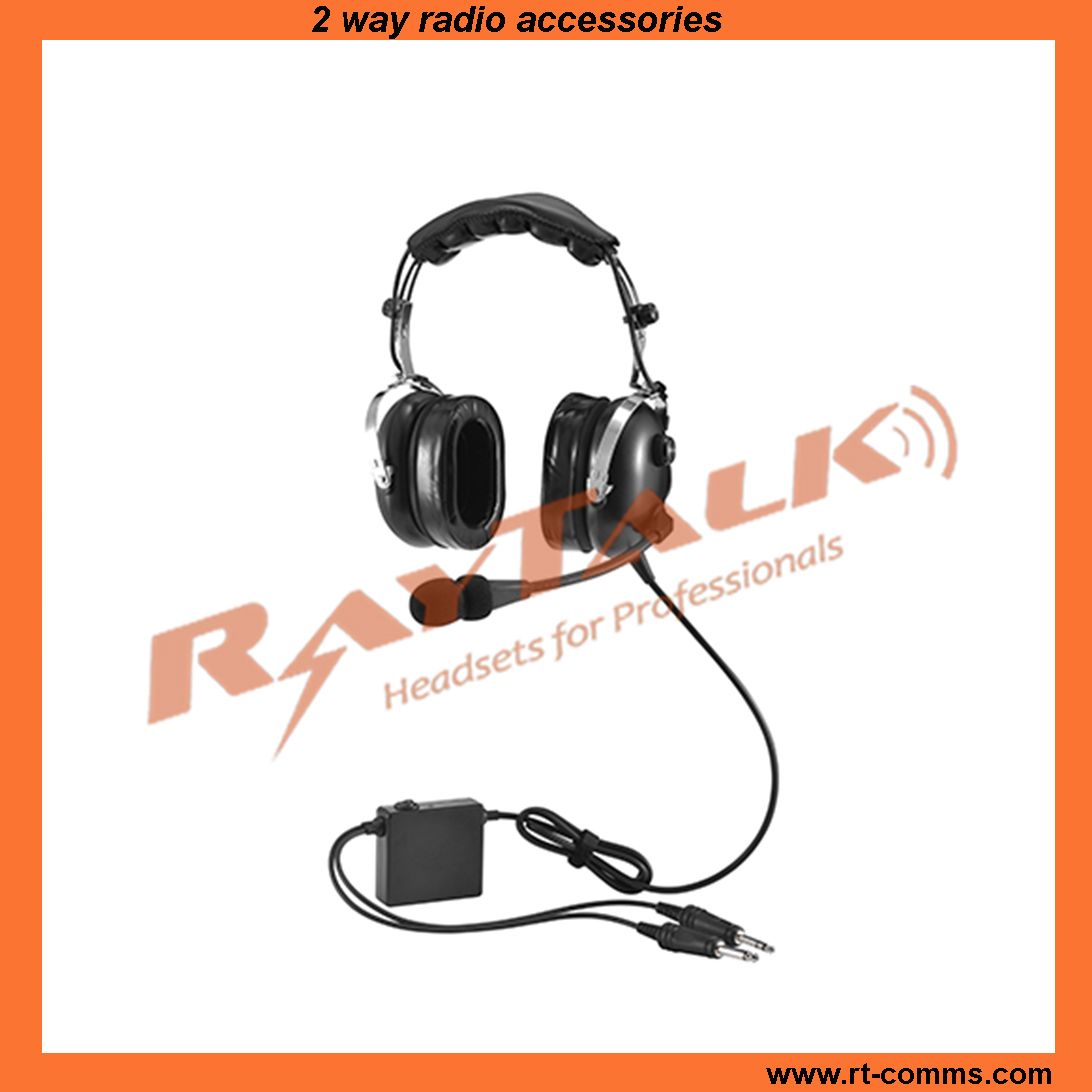

ANR Aviation pilot headset active noise reducing PH-100AC
Detailed Product Description
ANR Aviation Headset (ANR power: 9V battery)
GA Use Dual Plugs
Super Soft Double Foam Head Pad Noise-canceling electret Microphone
Precision flexible boom for perfect microphone placement
Easy-to-wear super soft silicone gel ear seals
Headband Size Adjustment Straight cord from headset to molded plug, 150CM
Assembled strictly following the FAA TSO standards
Technical Data:
| Headphone | Type: Dynamic (F30)
Frequency Response: 50 Hz to 20 kHz
Sensitivity: 95+/-5 dB SPL (1 kHz, 1 mW input per earcup side) full volume on ear simulator |
| Active Noise Attenuation: | Dynamic 42 ohms:
Rate Input: 30mW Max. Input: 100mW
Speech Sound:
Dynamic 300 ohms:
Rate Input: 30mW Max. Input: 100mW |
| Microphone and Amplifier: | Element Type: Noise-canceling electret
Frequency Response: 100Hz to 5 kHz
Operating Voltage (supplied by aircraft ): 8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity: -33+/-4 dB (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) |
| General | Operating Temperature: -20 to 70° C
Cordage: Straight cord from headsetto molded plug, 150CM
Intercom Connections Plug:
Earphone Plug: PJ-055(. 25"F6.3 phone plug)
Microphone Plug: PJ-068(. 206"F5.2 phone plug)
Weights: 600g
Noise Reduction Specifications:
Attenuation Frequency
Band__________20Hz~20KHz
Main Attenuation
Frequency Band__________20Hz~600Hz
Attenuation Capability__________18~21dB
Power Consumption__________30 mW
Headset size range Height: 10 to 14 cm
Color: Black Pink Red Yellow Blue White Gray
Boom: Flexible Boom |
