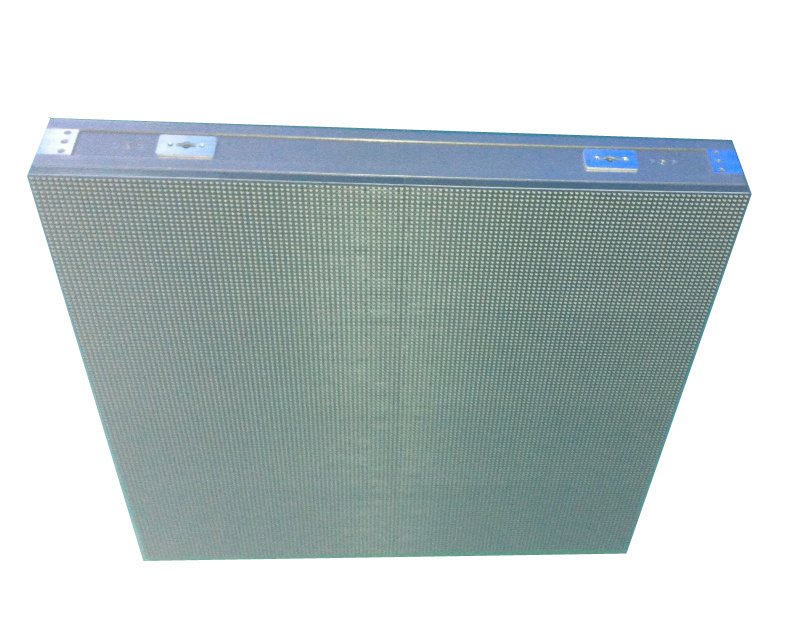

pH6 Indoor Rental LED Display
| Price: |
US $ 934/Square Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Box |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
PH6 SMD3535 LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
288mm*288mm |
| Cabinet Size: |
576*576*85mm (W*H) |
| Colors: |
281 Trillion |
| Brightness: |
More Than 2000 CD |
| Power: |
AC220/110 ± 10%, 47~63Hz |
| Refresh Rate: |
More Than 1000Hz |
| Processing: |
16 Bit |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
Product Description
PH6 indoor rental led display detailed specification
| Model | P6 |
|---|
| Model No.: | LEDA-IR-P6 |
|---|
| Pixel Pitch | 6mm |
|---|
| LED Type | SMD3528 |
|---|
| Pixel Configuration | 1R1G1B |
|---|
| LED Driving Method | 1/8 scan |
|---|
| Module Pixel | 48*48 (W*H) |
|---|
| Module Size | 288*288MM |
|---|
| Cabinet Pixel | 96*96 (W*H) |
|---|
| Cabinet Size | 576*576*85mm (W*H) |
|---|
| Cabinet Weight | 10KG |
|---|
| Max. Power Consumption | ≤1000W/ |
|---|
| Ave. Power Consumption | ≤350W/ |
|---|
| Hor. Viewing Angle | 140° |
|---|
| Verti. Viewing Angle | 140° |
|---|
| Brightness | ≥2000 cd/ |
|---|
| Pixel Density | 27778/ |
|---|
| Protection Level | IP43(Front & Back) |
|---|
| Processing | 16 bit |
|---|
| Colors | 281 trillion |
|---|
| Refresh Rate | ≥1000HZ |
|---|
| Frame Rate | 60fps |
|---|
| Lifetime | 100,000 Hours |
|---|
| Power | AC220/110 ± 10%, 47~63Hz |
|---|
| Operating Temperature | -20ºC to +60ºC |
|---|
| Operating Humidity | 20% to 90% |
|---|
| Brightness Level | Manual 100 levels,automatically 16 levels |
|---|
| Certifications | CCC, FCC, CE, ROHS, UL, ETL
|
|---|

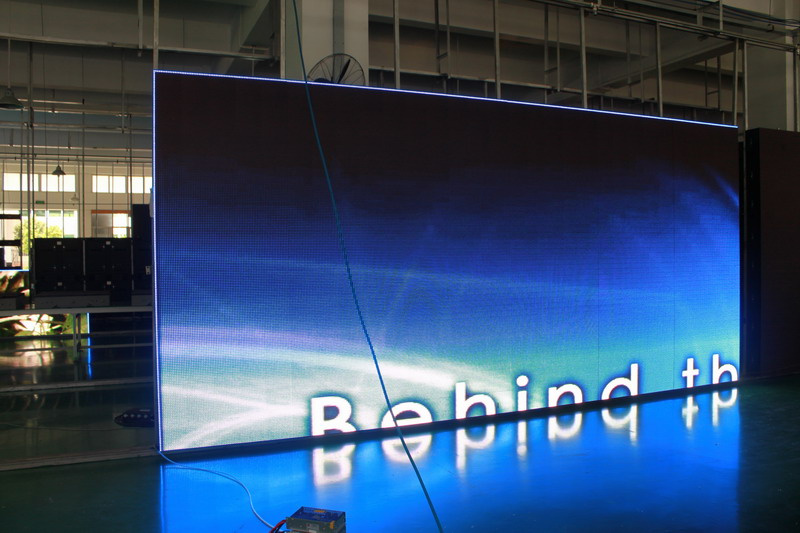

aging picture front view
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
