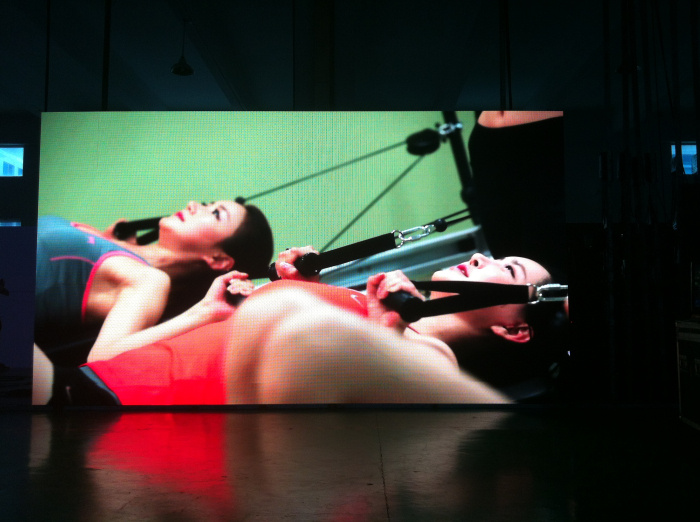

pH6 Indoor LED Display
| Price: |
US $ 510/Square Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Box |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
PH6 SMD LED display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm*96mm |
| Cabinet Size: |
768mm*576mm |
| Brightness: |
More Than 2000CD/Sqm |
| Cabinet Material: |
Steel |
| Cabinet Weight: |
32kg |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
Product Description
PH6 indoor led display detail and specification
| Item | Indoor Fixed LED display Series |
| Pixel Pitch(mm) | 4mm | 5mm | 6mm | 7.62mm | 10mm |
| Pixel density(pix/m2) | 62500 | 40000 | 27777 | 17223 | 17223 |
| LED Type | 2020 | 3528 | 3528 | 3528 | 3528 |
| Viewing Angle | H:140°,V:140° |
| Color Depth(nits) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Drive Method | 1/16 | 1/16 | 1/16 | 1/16 | 1/16 |
| Color Depth | 16384 |
| Refresh Rate(Hz) | 1200 | 1600 | 1600 | 1600 | 1600 |
| Module Size(mm) | 256X128x13 | 160X160x13 | 192X192x13 | 244X122x13 | 244X122x13 |
| Cabinet Size(mm) | 512X512X93 | 640X640X93 | 768X768X93 | 732X732X93 | 732X732X93 |
| Cabinet Material | Iron | Iron | Iron | Iron | Iron |
| Cabinet weight(kg) | 14.5 | 23 | 32 | 30 | 30 |
| Voltage | 110/220V |
| Average.Power(W/m2) | 270 | 160 | 130 | 120 | 120 |
| Max.Power(W/m2) | 800 | 480 | 380 | 350 | 350 |
| IP Grade | IP31 |
| Operating temperature/humidity | Temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | Temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CE,FCC,RoHS ,CCC |
LED Parameters
Item |
Luminous Intensity |
Viewing Angle(H/V) |
Wavelength |
Test Condition |
|
Red LED |
150-200mcd |
120º/120º |
620-630nm |
25ºC,20mA |
Green LED |
260-330mcd |
120º/120º |
520-535nm |
25ºC,20mA |
Blue LED |
55-65mcd |
120º/120º |
465-475nm |
25ºC,20mA |
Product Features
Variety of information is available to display:Information about computers, pictures, graphs, two-dimensional and tri-dimensional animation, etc. |
Multi-language compatible:Information could be displayed in English, French, German, Greek, Russian and Japanese, etc. |
Advanced LED coloration achieves higher brightness at lower temperatures, resulting in less stress and longer life span. |
Advanced tri-color calibration and stricter measuring standards achieve precision uniformity and extended endurance. |
OIC's indoor LED display panel provides high-quality images as the following characteristics:+high brightness, +high-contrast ratio, +enhanced color uniformity |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
