| Prod Model: |
PH6 SMD indoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm*96mm |
| Module Resolution: |
32*16 (W*H) |
| Cabinet Size: |
768*768mm |
| Cabinet Pixel: |
128*128 (W*H) |
| Cabinet Weight: |
35kg |
| Brightness: |
More Than 1500 CD |
| LED Type: |
SMD3528 |
| Refresh Rate: |
More Than 1000Hz |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
Product Description

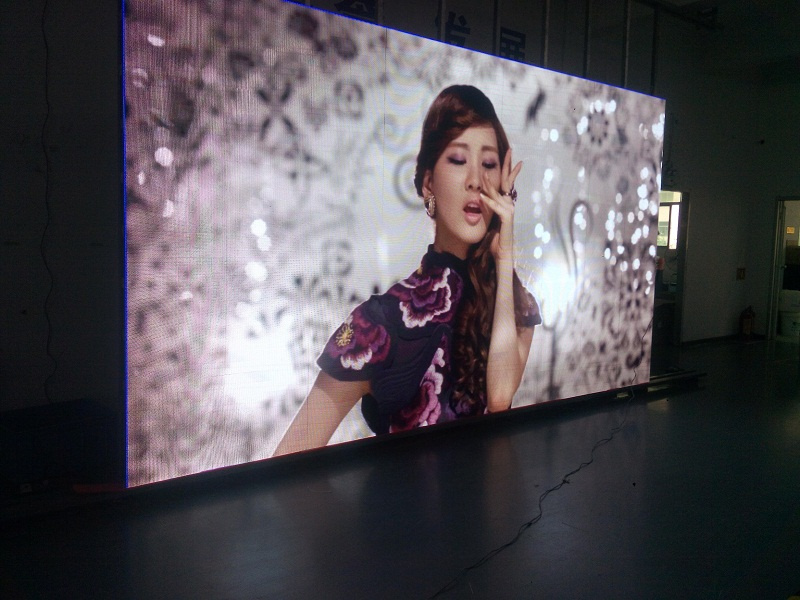

pH6 Indoor full color LED Display for advertising
indoor SMD 3in1 fullcolor led display has the function of uniformity color, wide viewing angle and perfect images, it is widely used in concerts, stage, church, shopping mall, airport, railway station, hotel, hospital and etc.
Wide Viewing Angle
Horizontal and vertical viewing angle is 140 degrees, pictures and videos of the display can be viewed by more viewers.
High Brightness and Brightness Adjustable
The brightness is more than 1500nits/sqm, and can be adjusted automatically, it saves power cost.
High Refresh Rate
The refresh rate is more than 1000HZ, it is flicker-free when live broadcast. It fully meets the needs of professional camera shooting.
Professional-grade Connectors
indoor SMD led displays use professional grade connectors for fast installation, safe and stable connection.
Fast and Easy to Maintain
indoor SMD display can be front service design, it can be maintenaned from front.
Quality Guaranteed
The product is designed and produced in strict compliance with international standards, such as CE, ROHS.
| Model | P6 |
|---|
| Model No.: | LEDA-IW-P6 |
|---|
| Pixel Pitch | 6mm |
|---|
| LED Type | SMD3528 |
|---|
| Pixel Configuration | 1R1G1B |
|---|
| LED Driving Method | 1/8 Scan |
|---|
| Module Pixel | 32*16 (W*H) |
|---|
| Module Size | 192*96MM |
|---|
| Cabinet Pixel | 128*128 (W*H) |
|---|
| Cabinet Size | 768*768MM |
|---|
| Cabinet Weight | 35KG |
|---|
| Max. Power Consumption | ≤1000W/ |
|---|
| Ave. Power Consumption | ≤500W/ |
|---|
| Hor. Viewing Angle | 140° |
|---|
| Verti. Viewing Angle | 140° |
|---|
| Brightness | ≥1500 cd/ |
|---|
| Pixel Density | 27777/ |
|---|
| Protection Level | IP43(Front & Back) |
|---|
| Processing | 16 bit |
|---|
| Colors | 281 trillion |
|---|
| Refresh Rate | ≥1000HZ |
|---|
| Frame Rate | 60fps |
|---|
| Lifetime | 100,000 Hours |
|---|
| Power | AC220/110 ± 10%, 47~63Hz |
|---|
| Operating Temperature |
-20ºC to +60ºC |
|---|
Operating Humidity |
20% to 90% |
|---|
Brightness Level | Manual 100 levels,automatically 16 levels |
|---|
| Certifications | CCC, FCC, CE, ROHS, UL, ETL
|
|---|
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
