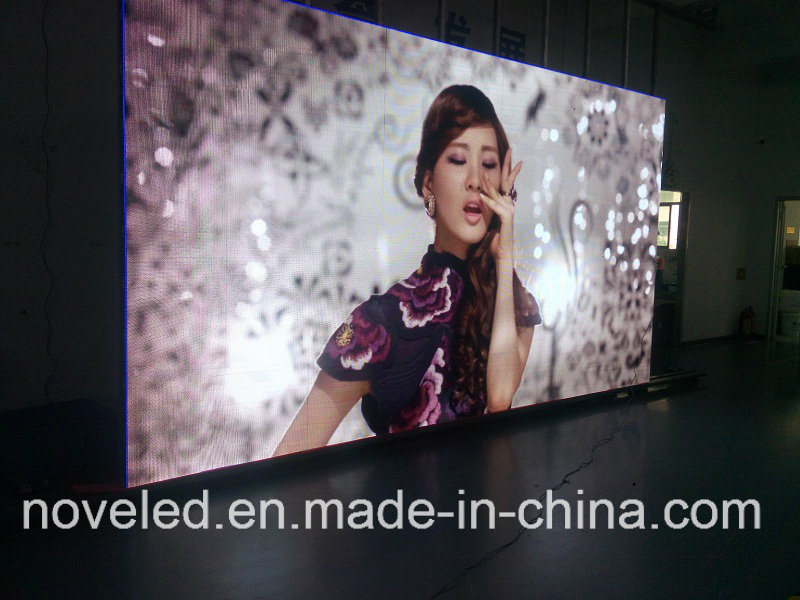

pH3 Black Lamp Die-Casting Aluminum LED Display
| Price: |
US $ 1984/Square Meter |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
PH3 SMD2121 black lamp LED display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm*192mm |
| Module Resolution: |
64dots*64dots for Real |
| Module Weight: |
0.5kg |
| Pixel Configuration: |
1r1g1b SMD2121 |
| Cabinet Size(W*H*D): |
576*576*80(Mm) |
| Cabinet Resolution: |
192DOT*192DOT for Real |
| Cabinet Pixels: |
36864 Dots |
| Material: |
Aluminum |
| Brightness: |
More Than 1800CD/Sqm |
| Warranty: |
2 Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111dots/Sqm |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
Product Description
PH3 black lamp die-casting aluminum led display
Product Features
High definition and could be adjusted, so it can meet the request of the customers according the application environments. |
Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light. |
To picture, video and character, have clear, exquisite and real display effects. |
Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion. |
Can repair each led lamp, so the cost of maintenance is lower, and easy to repair. |
LED Parameters
Item |
Luminous Intensity |
Viewing Angle(H/V) |
Wavelength |
Test Condition |
|
Red LED |
150-200mcd |
120º/120º |
620-630nm |
25ºC,20mA |
Green LED |
260-330mcd |
120º/120º |
520-535nm |
25ºC,20mA |
Blue LED |
55-65mcd |
120º/120º |
465-475nm |
25ºC,20mA |
Module Parameters
Pixel Pitch |
3mm |
|
Pixel Configuration |
1R1G1B SMD2121 3in1 |
Module Resolution |
64dots*64dots for real |
Module Pixels |
4096 dots |
Module Size |
192mm*192mm |
Module Weight |
0.5KG |
Cabinet Parameters
Cabinet Size(W*H*D) |
576*576*80(mm) |
|
Cabinet Resolution | 192dot*192dot for real |
Module Quantity |
9 pcs |
Cabinet Pixels |
36864 dots |
Pixel Density |
111111 dot/sqm |
Avg. Power Consumption |
250W/sqm |
Max. Power Consumption |
750W/sqm |
Material |
Aluminum |
Cabinet Weight |
20KG for aluminum cabinet |
Screen Parameters
Brightness |
≥1800cd/sqm |
Contrasts (Max. /Min.) |
1.1:1 |
Driving Method |
1/16 scan constant current |
View Angle |
Horizontal 120° Vertical 120° |
Optimal Viewing Distance |
3m to 50m |
Brightness Control |
Red, Green and Blue 256 Grade/Each |
Fresh Frequency |
≥600Hz |
Frame Frequency |
50 - 60Hz |
Input Voltage |
AC220V/50Hz or AC110V/60Hz |
Defects Rate |
≤0.00001 |
Screen Weight |
≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
MTBF |
>10,000 hours |
Life Span |
≥100,000 hours |
Brightness Uniformity |
<3% |
Earth Leakage Current |
<3mA |
Protective Grade |
IP45 |
Temperature-operating |
-40°C to 60°C |
Humidity-operating |
10% to 90% |
Operating System |
Windows98/me/2000/NT/XP/win7 |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
