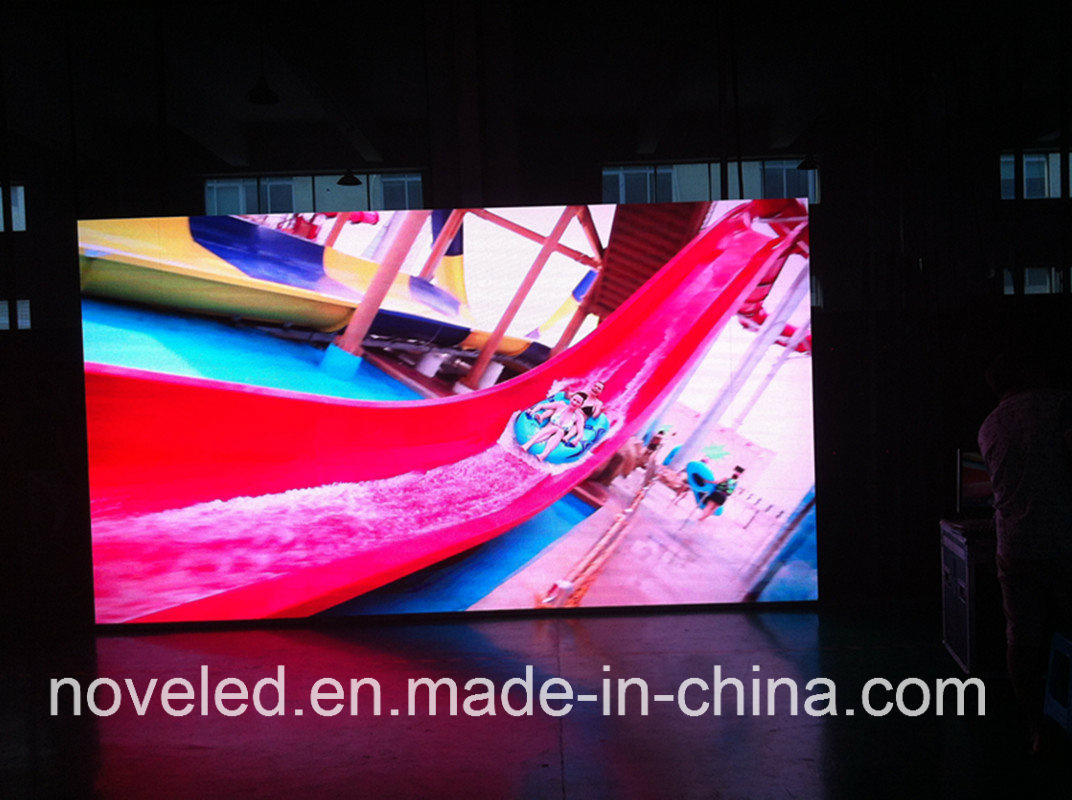

pH10 Outdoor LED Display
Price: |
US $ 800/Square Meter |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Square Meter |
Pay Type: |
T/T,Paypal,Western Union |
Prod Model: |
PH10 RGB outdoor led display |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
160mm*160mm |
Standard Cabinet Size: |
960mm*960mm |
Brightness: |
More Than 6500CD |
Cabinet Material: |
Steel |
Packed Material: |
Wooden Case or Flight Case |
Warranty: |
2 Years |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Certification: |
CCC |
Pixel Pitch: |
10mm |
Display Function: |
Video Display |
Application: |
Advertising |
Scanning Mode: |
1/4 Scan |
Pixel Density: |
10000 dot / m² |
Average Power Consumption: |
220W / m² |
Product Description
PH10 outdoor led display and detailed specification
Item | Outdoor DIP LED display |
Pixel Pitch(mm) | 10mm | 12mm | 16mm | 20mm |
Pixel density(/m2) | 10000 | 6944 | 3906 | 2500 |
LED Type | DIP346 |
Viewing angle: | H:120°,V:60° |
Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
Drive Method | 1/4 | Static |
Color Depth(nits) | 16384 |
Refresh Rate(Hz) | 2200 | 2800 |
Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
Cabinet Size(mm) | 960×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
Cabinet Material | Steel |
Cabinet weight(kg) | 50 | 55 | 68 |
Voltage | 110/220V |
Average.power(W / m2) | 250 | 170 | 250 | 220 |
Max.power(W / m2) | 750 | 500 | 750 | 650 |
IP Grade | IP65/IP54 |
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
Lifetime(h) | ≥50000 |
Compliant Standard | CCC,CE,Rosh |
LED Parameters
Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
Red LED | 300-500mcd | 120º/60º | 620-630nm | 25ºC,20mA |
Green LED | 1800-2200mcd | 120º/60º | 520-535nm | 25ºC,20mA |
Blue LED | 250-500mcd | 120º/60º | 465-475nm | 25ºC,20mA |
Product Features
P10 outdoor full color 1R1G1B LED Display As DIP LED display has experienced long term R&D and application, technology of DIP is mature, performance is stable and it is widely supported. Most of the complicated systems or complement measures are designed and manufactured on basis of DIP display standards, so DIP LED display is your conservative and reliable choice. |
High brightness, DIP LED display adopts independent encapsulation, so when it is the same brightness, DIP has more heat radiation sheet metal than SMD so that design is in favor of chip heat radiation and high brightness. Meanwhile, DIP LED adopts V shape encapsulation, which can increase its performance of lighting focus so as to raise brightness and viewing distance. |
Better IP rank, DIP LED display is IP65 and mostly installed outdoor or semi-outdoor because of its high brightness and better waterproof effect and solutions. |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
