| Prod Model: |

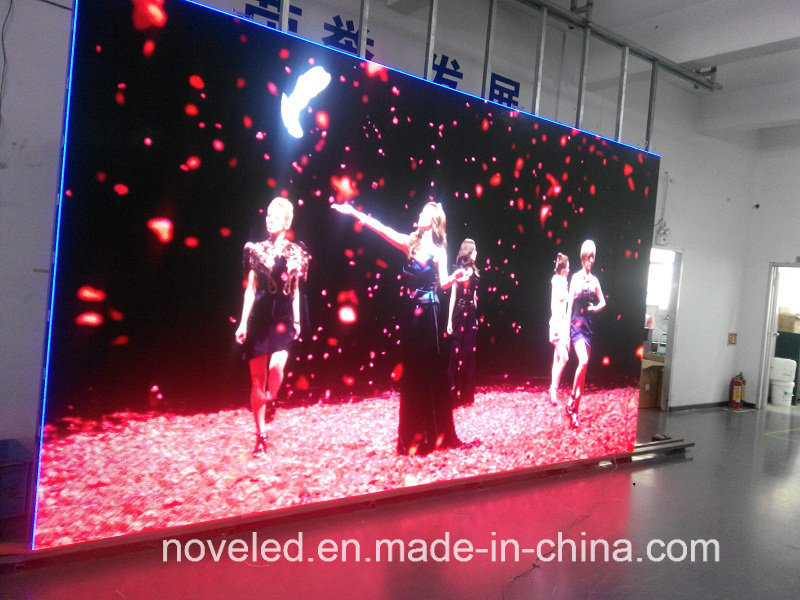

PH10 outdoor SMD3535 black lamp led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320*160mm |
| Module Resolution: |
32DOT*16DOT |
| Cabinet Size: |
640*640*80 |
| Cabinet Resolution: |
4096 |
| Cabinet Material: |
Aluminum |
| Cabinet Weight(Kg): |
17 |
| Brightness(Nits): |
More Than 5000CD |
| Warranty: |
2 Years |
| LED Type: |
SMD3535 Black Lamp |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
220W / m² |
Product Description
| Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm |
| Pixel density(pix/m2) | 22545 | 15625 | 10000 |
| LED Type | 3535 | 3535 | 3535 |
| Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
| Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/6 | 1/5 | 1/2 |
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Module Size (mm) | 320×160×16 |
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | aluminum |
| Cabinet weight(kg) | 12 | 17 | 17 |
| Voltage | 200-240V |
| Average.power(W/m2) | 230 | 230 | 230 |
| Max.power (W/m2) | 700 | 700 | 700 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC(CE)Rosh |
LED lamps: Epistar. High brightness LED lamps with wide viewing range and low driving current, consuming less power.
Driving IC: MBI 5224/MBI5024. The light decay can be controlled to maintain a stable brightness.
Power supply: With Meanwell and YHY power supply improves the efficiency of power, produces less heat, and saves energy.
Optical fiber: Shortening signal delay caused by long distance transmission.
Rental led display screen advantage:
1.Full HD, as clear as television
2.Large view angle
3.Made of die-casting aluminium make it light weight easy to carry
4.Fast installation
5.Indoor display screen with a more accurate color
6.High quality service
7.Competative factory price and famous leading brand
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
