Perimeter Advertising LED Display
| Price: |
US $ 1500-2500/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
LS-O-P10-SMD-P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
6,000nits |
| Panel Size: |
960X960 |
| Resolution Per Panel: |
96X96 |
| Mounting System: |
Stand on Ground by Bracket |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
RoHS |
| Pixel Configuration: |
3in1 SMD |
| Average Power Consumption: |
344W/Sqm |
Product Description

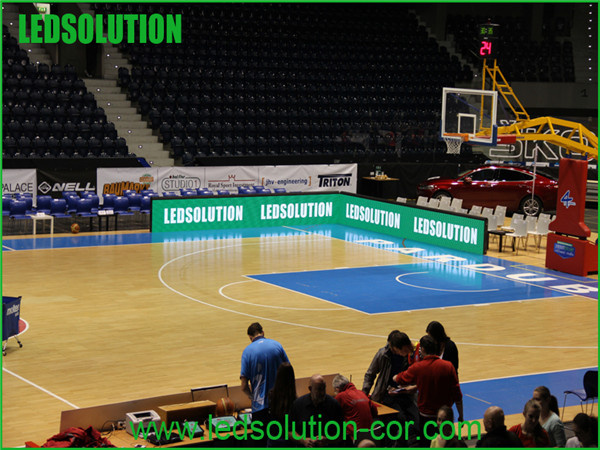

LEDSOLUTION P10 Perimeter LED Display
Main Product Features:
*high brightness
*good heat dissipation
*easy maintenance
*excellent after-sales service
*Claw lock system to link cabinets to avoid visible gaps between cabinets.
*Soft rubber mask facia to protect the screen and the players on impact
*Simple power and data connections, daisy chain from one cabinet to the next for fast connection
*Any cabinet in any position, no need for numbering cabinets and ensuring they are connected in the correct order, easy software set-up when cabinets are connected.
Product Photos:
Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 54 |
| Panel width | mm | 960 |
| Panel height | mm | 960 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 0.922 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Panel Mode |
| Quick Assembly Cabinet with Bracket |
| Special Design |
| Soft Plastic Mask |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 96x96 |
| Dot per panel |
| 9,216 |
| Dot per sq. meter |
| 10,000 |
| LED per sq. meter |
| 10,000 |
| Recommended minimum viewing distance | m | 10 |
| Recommended best viewing distance | m | 10~30 |
| Colors |
| 1,073.7 million |
| Grey scale (linear) | Levels | 1,024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts /sq. m. | 860 |
| Input power (typical) | Watts /sq. m. | 344 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Stand on ground by bracket |
