| Prod Model: |
PIA 120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply Voltage: |
110~125V AC or 220 |
| Rated Power: |
120W |
| Frequency Response: |
50~15,000Hz(±3db) |
| Working Temperature: |
-10to +40 |
| Size(W*H*D): |
483X90X410mm |
| Weight: |
11kg |
| Color: |
White |
| Type: |
Professional Amplifier |
| Function: |
Amplifier Combined |
| Element Number: |
Monoamplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Usage: |
Commercial |
Product Description
Product description

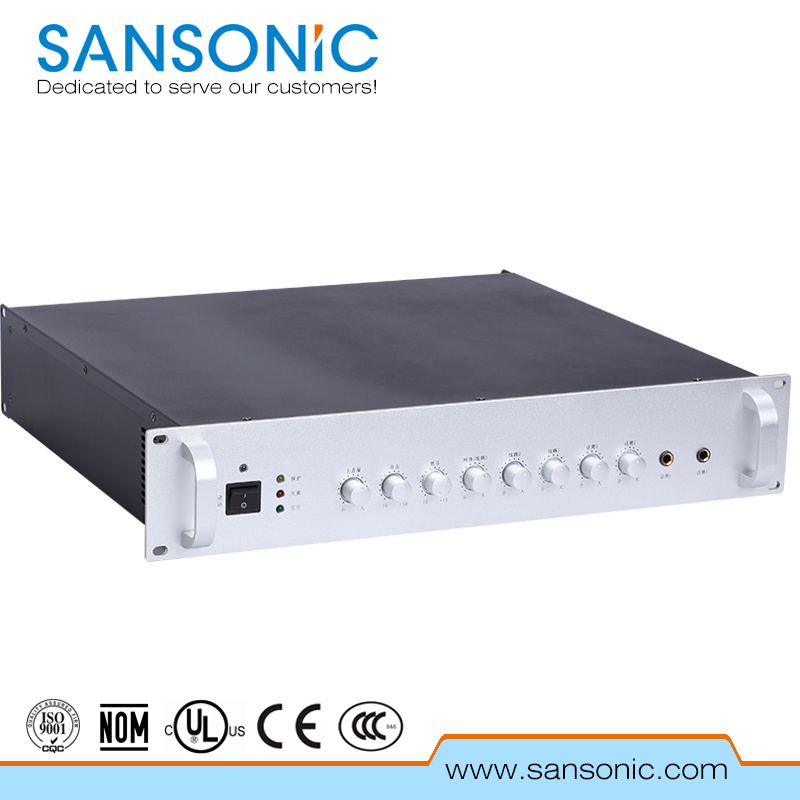

PIA120series is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 120W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 100V, 70V and 4ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC1-2 microphone balanced input,
3. AUX1-2 line RCA linear input, AUX3 line RCA linear or RJ45 input
4.1V600Ω Pre-out
5. Constant pressure output 100V/70V and rated resistance 4Ω ;
6. Signal lamp, peak lamp display
7. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Port allocation:
1. MIC 1~6 line microphone balanced input, input sensibility: 3~10mV;
2. Aux 1~2 line RCA linear input, input sensibility: 100mV or 300mV switchable;
3. Aux 3 line RCA linear input or RJ45 input, input sensibility: 100mV or 300mV switchable;
4.4Ω , 70V, 100V output terminal multi-impedance output
5. Pre-out 1V 600Ω ;
| Specification |
|
| Model | PIA120 |
| Power Requirement | 110~125V AC or 220~230V AC,50/60Hz |
| Rate Output | 120W |
| Distortion | Less than 0.8% at 1 kHz |
| Frequency Response: | 50~15,000Hz(±3dB) |
| Output | Pre Output | 0dB, 600ohm Unbalanced, RCA pin jack
|
| Direct Output | High Impedance: 100V\70V screw terminal
|
| Input | MIC1-2: | 3 ~ 10mV balanced Phenix Input
|
| AUX1-2: | 300mV/100mV (-10dBV/-20dBV) Selectable Unbalanced,RCA pin jack
|
| AUX 3/NETWORK INPUT: | 300mV/100mV(-10dBV/-20dBV)Selectable Unbalanced,RCA pin jack,RJ45
|
| Working temperature: | -10to +40
|
| Size(W*H*D) : | 483X90X410MM
|
| Color: | Black
|
| Weight: | 11kg |
