| Prod Model: |
I9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Power Amplifier |
| Function: |
Pre-amplifier |
| Tube Type: |
Tube Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
AB |
| Usage: |
Stage Concert Disco Club |
Product Description

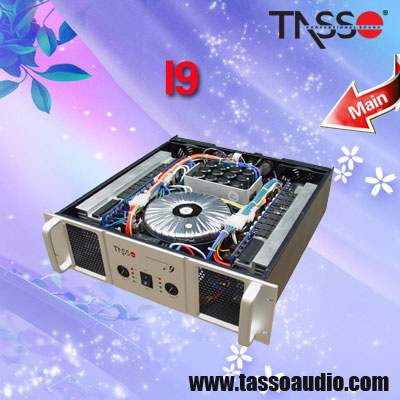

Through continued improvement and innovation, TASSO i Series amplifiers offers features found in just a few top brands. High-efficiency Class H output circuits. It brings the users a sound of complete new level. Not only does it give you tighter bass and clean transparent highs, i also cuts waste heat, boosts reliability and gets rid of unwanted noise and hum. Its revolutionary power supply technology provides ample current to the audio power circuitry, guarantees efficient energy and ensures a clean audio signal.
Multi-protections (3U)
Full short circuit, open circuit, thermal (output will be cut when temperature is over 100degree), RF protection, On/off muting, DC-fault power supply shutdown.
TASSO Audio Manufactory specializes in research, developing, manufacturing, sales and technical services in pro audio products. Over 15 years of technical experience of our engineers is the foremost guarantee to all of our operation.
Nearly 150 electro-acoustic professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs have built up solid foundation to our quality as well as to our success in the industry. TASSO implements a 5M and 6S QA Optimum System in our management. We have the world top-ranking DAAS, EASE, SMART LIVE, INT, America AP amplifier tester and other professional test equipment. Most of our products have already been approved by SGS for CE & RoHs certification, China CCC certification.
Contact information
Tel: +86-20-39141508
Fax: +86-20-31190966
Website: www.tassoaudio.com
|
Model |
I6 |
I9 |
I12 |
|
Input Impedance |
20KΩ balanced, 10KΩ unbalanced |
|
Frequency Response |
20Hz-20KHz |
|
Input Sensitivity |
0dB(0.775V for rated power) |
|
Damping Factory |
>800 |
|
S/N(broad band width) |
>105dB |
|
IMD(rated power) |
≤0.05% |
|
Output(8Ω) |
2×1100W |
2×1300W |
2×1500W |
|
Output(4Ω) |
2×1600W |
2×1900W |
2×2400W |
|
Bridge(8Ω) |
3200W |
3800W |
4800W |
|
Mains |
AC 220V/50-60Hz |
|
Dimensions HWD(mm) |
140×483×515 |
|
Shipping HWD(mm) |
195×590×590 (0.07CBM) |
|
Net Weight(Kg) |
36.5 |
37 |
42 |
|
Gross Weight(Kg) |
38.5 |
39 |
44 |
