| Prod Model: |
LBA-680 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
60-1000W |
| Place Of Origin: |
Guangzhou ,Cn |
| Brand Name: |
Qqchinapa |
| Use: |
Hotel,School,Airport,Departmen,Church |
| Certificate: |
CE, FCC,RoHS,CB |
| Protetion: |
High Temp,Overload&Short-C |
| Factory History: |
More Than 10 Years |
| Warranty: |
3 Years |
| Deliver Time: |
2-25days |
| Factory Ability: |
OEM ODM |
| Usage: |
Public Address System |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Sound Channel: |
3.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Type: |
PA Amplifier |
| Used For: |
PA Address System |
Product Description

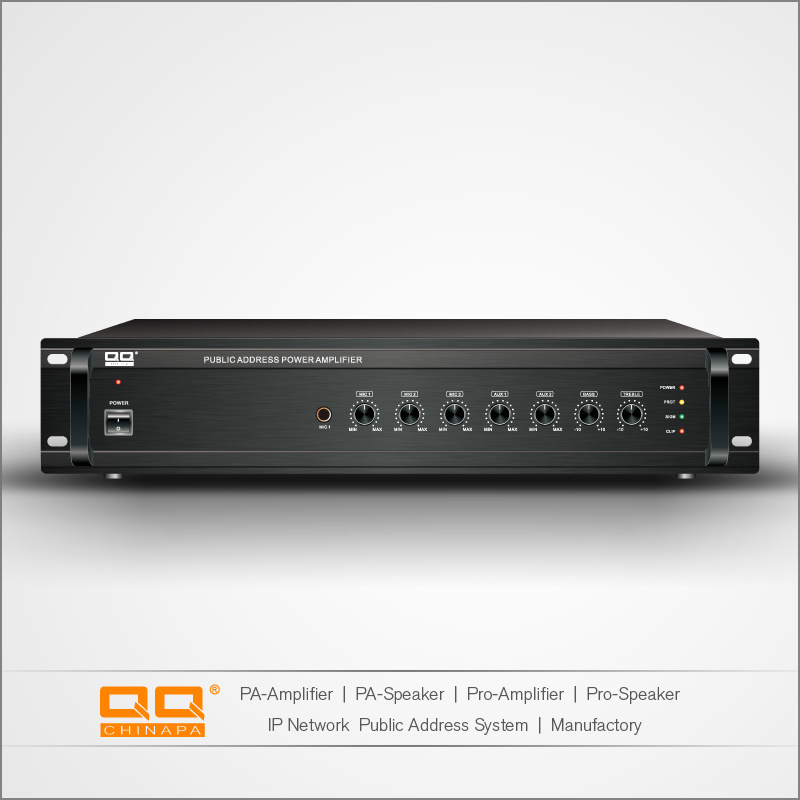

Mixer amplifier (LBA-280, LBA-380, LBA-480, LBA-680, LBA-880, LBA-1000)
Product Features:
1: Three microphone inputs. Two auxiliary inputs, and one auxiliary outputs for link.
2: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
3: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
4: Muting function.
5: Individual volume control, low and high tone control
6: Short circuit protection & alarm
7: with limiter function, music without distortion
8: Series amplifiers of high output power available.
| Model | LBA-280 | LBA-380 | LBA-480 | LBA-680 | LBA-880 | LBA-1000 |
| Line voltage | 70-100V | 70-100V | 70-100V | 70-100V | 70-100V | 70-100V |
| Sensitivity | 230mv\15mv | 230mv\15mv | 230mv\15mv | 230mv\15mv | 230mv\15mv | 230mv\15mv |
| Sensitivity | > 80db | > 80db | > 80db | > 80db | > 80db | > 80db |
| Harmonic distortion | < 0.3 % | < 0.3 % | < 0.3 % | < 0.3 % | < 0.3 % | < 0.3 % |
| FREQ. RESP | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz | 20Hz-20KHz |
| Rated power | 280W | 380W | 480W | 680W | 880W | 1000W |
| Fuse | F5AL | F5AL | F8AL | F8AL | F10AL | F10AL |
| Dimension | 435*390*90mm | 435*390*90mm | 435*390*90mm | 435*390*90mm | 435*390*90mm | 435*390*90mm |
| Weight(KG) | 13 | 14.5 | 16 | 18.5 | 20 | 21.5 |
Our Advantage:1.OEM Ability ---Over10 years speakers and amplifiers product manufacturer experience .2.Famous factory ---- We have been the supplier of 2008 Beijing Olympics China .3.Quality--- We have strict quality control system with 5 steps of inspection to assure the stability of quality. Certificated with CE,CCC,ROHS,FCC,CB and so on .4.Competitive ---- we focus on help our customers to build their brand name to be the famous brand in their country .
