Guangzhou Sanway Professional Audio Equipment Co., Limited >> PA Speaker Professional Audio (W8LC)

PA Speaker Professional Audio (W8LC)

PA Speaker Professional Audio (W8LC)
Price: US $ 1-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 4/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: Sanway W8LC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drivers: 6PCS Neodymium Drivers
Color: Grey or Black
Speaker System: Optional Combination
Hi-Fi: Hi-Fi
Operation Mode: Wire / Remote Control
Speaker Material: Wood
Monitor: VFD Screen
Application: Commercial
THD: 0.005%-0.01%
Noise: <95dB
Certification: RoHS

Product Description

Pa Speaker Professional Audio W8LC

1>. Line Array Pa Speaker Box
2>. Mini Line Array Pro Audio System
3>. Professional Audio Speaker Line Array
4>. Single 12" Neodymium Line Array System

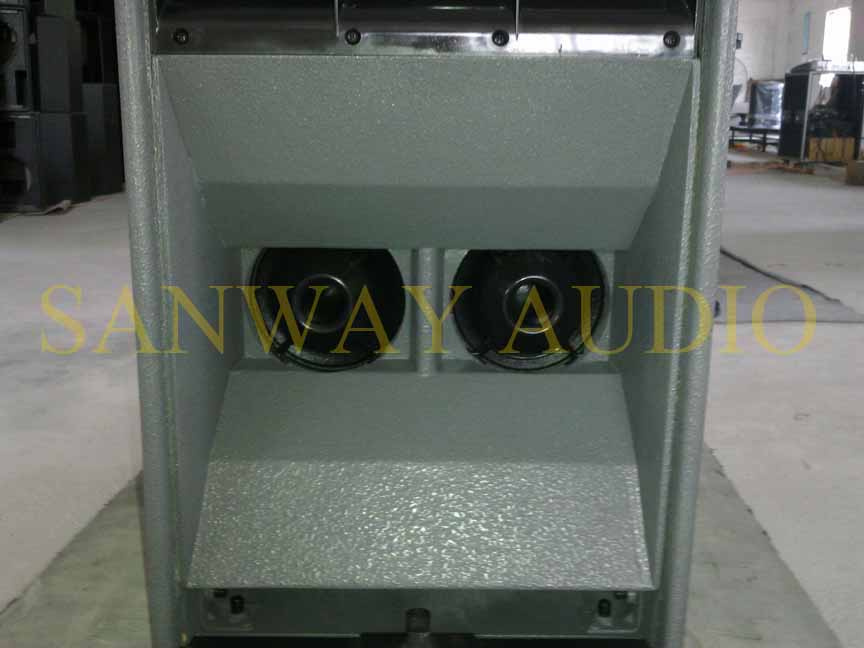

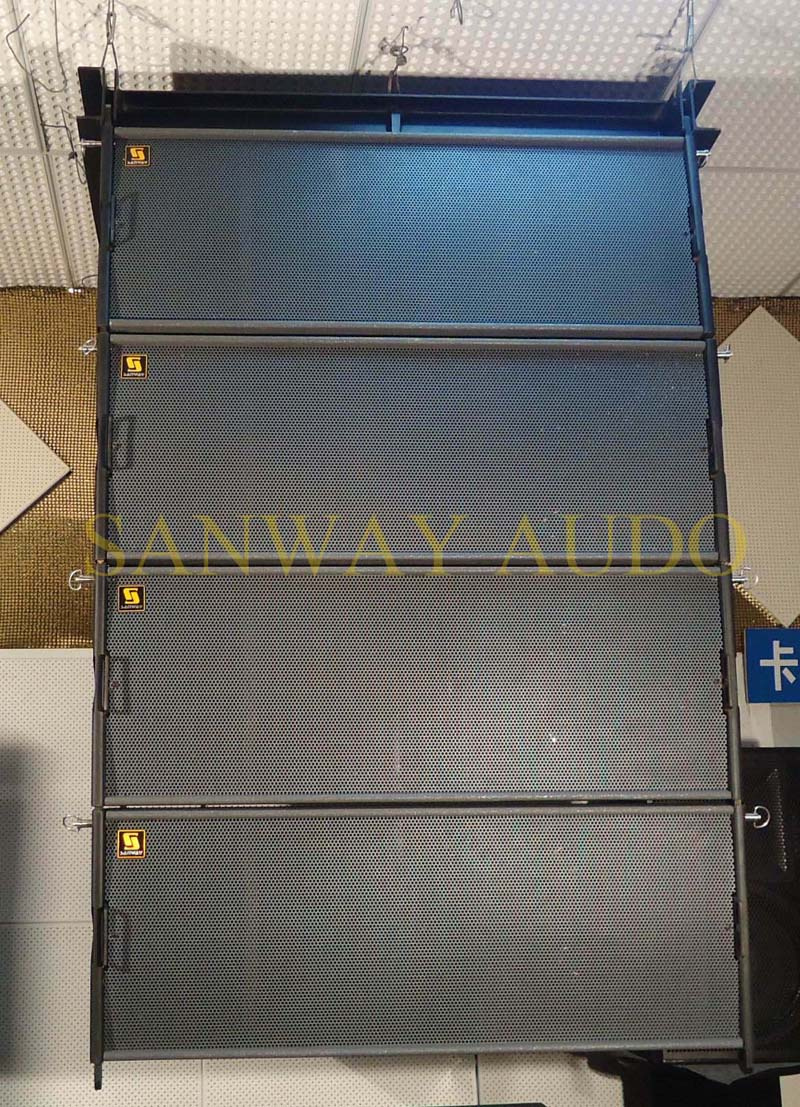

Line Array Speaker Box System W8LC
1). Compact, high performance three-way line array enclosure
2). High power - maximum SPL 129dB continuous, 135dB peak (single unit)
3). Superior bass impact - all horn design
4). Wide bandwidth - 60Hz-18kHz +3dB (single unit)
5). True 90° (-6dB) horizontal MID and HF pattern control
6). Very smooth off-axis response - useable out to 120 (-10dB)
7). Compatible with the full-sized W8L Line Array
8). Fast, integral rigging system with variable splay angles from 0 to 7.5;
9). Common grid may be used for flying or ground stacking




TECHNICAL SPECIFICATION


W8LC three way line array audio speaker system
Frequency Response (±3 dB) 60 Hz - 18 kHz
Sensitivity (1w/1m) LF 103 dB / MF 106 dB / HF 109 dB
Maximum SPL LF 135 dB / MF 135 dB / HF 135 dB
Nominal Impedance LF: 8 ohms      MF: 8 ohms    HF: 8 ohms
 Power rated(rms) LF: 400 watt     MF: 200 watt   HF: 100 watt
Peak Power handling LF: 1600 watt     MF: 800 watt   HF: 400 watt
Nominal Dispersion 90ºH optional×7.5ºV
Dimensions (H x W x D) 367 mm x 1000 mm x 550 mm
Enclosure Material  18 mm plywood
Surface Finished  Textured grey wear-resistant paint
Grille heavy grey perforated steel framed
Net weight  58kg
Low Frequency Driver 12" high effeciency Neodymium magnet driver
 Mid Frequency Driver 2×6.5" high effeciency Neodymium magnet driver
High Frequency Driver 3×1" effeciency Neodymium magnet driver
 Input Connectors Speakon NL8×2
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.

With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.

Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.

Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.

Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.

We always keep and follow the principle to do business:

The same product, we win by the quality;

The same quality, we win by the price,

The same price, we win by the service.

We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.

Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
