| Prod Model: |
LPA-200CD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
200W |
| Place Of Origin: |
Guangzhou ,Cn |
| Brand Name: |
Qqchinapa |
| Use: |
Hotel,School,Airport,Departmen |
| Certificate: |
CE, FCC,RoHS,CB |
| Warranty: |
3years |
| Delivery Detail: |
2 Days Upon The Payment Is Confirmed |
| Packaging Details: |
Carton or Road Case |
| Our Market: |
Get a High Reputation All Around The World |
| Factory History: |
Over 10years |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
PA Amplifier |
| Sound Channel: |
3.1 |
| Output Number: |
8 |
| Voltage: |
AC 110V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Usage: |
Public Address System |
Product Description

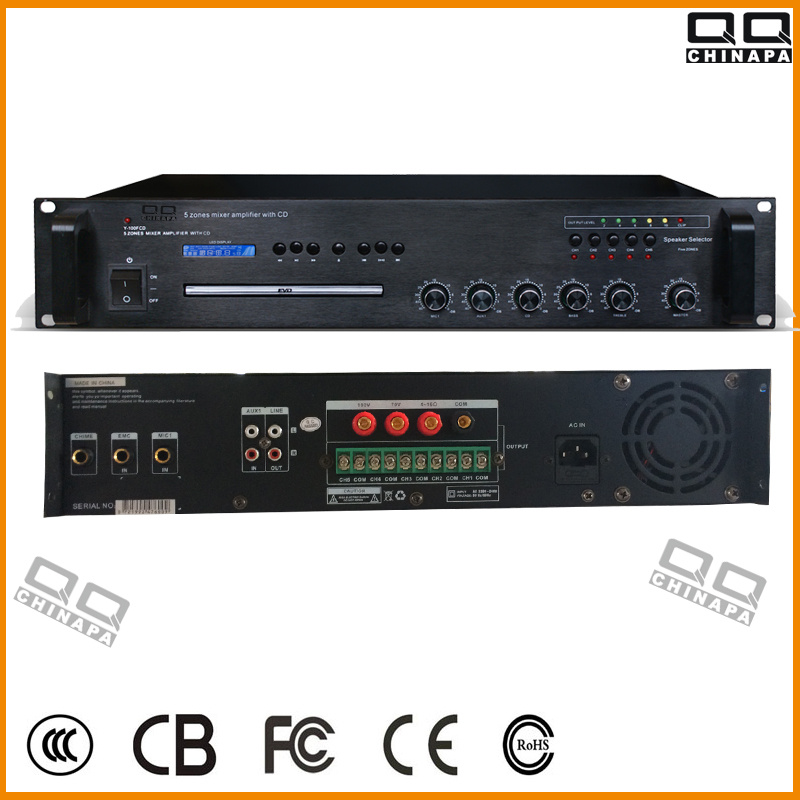

Pre-amplifier with 5zone+ CD(60-300w)
1: Three microphone inputs. Two auxiliary inputs, and one auxiliary outputs for link.
2: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
3: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
4: Muting function.
5: Individual volume control, low and high tone control
6: Five zone,Individual volume control, low and high tone control
7: Short circuit protection & alarm
8: Individual distributor for 6 channels, the volume can be adjusted independently
9:Panel colour :Black or White
| Model |
| LPA-60CD | LPA-100CD | LPA-150CD | LPA-200CD |
| Rated power |
| 60W | 100W | 150W | 200W |
| Line voltage |
| 70-100V,
| 70-100V
| 70-100V | 70-100V |
| impedance |
| 4-16Ω | 4-16Ω | 4-16Ω | 4-16Ω |
| Dimension |
| 485*360*90 | 485*360*90 | 485*360*90 | 485*395*90 |
|
|
| Model | LPA-300CD |
|
|
|
|
| Rated power | 300W |
|
|
|
|
| Line voltage | 70-100V,48v |
|
|
|
|
| impedance | 4-16Ω |
|
|
|
|
| Dimension | 485*395*150 |
|
|
|
|
