| Prod Model: |
P8 SMD3535 outdoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Matterail: |
Die Cast Alumium Cabinet |
| Cabinet Size: |
640mm X 640mm X 85mm |
| Cabinet Weight: |
12kg/ Cabinet |
| Brightness: |
Brightness More Than 5000 CD |
| Warranty Time: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
UL |
Product Description

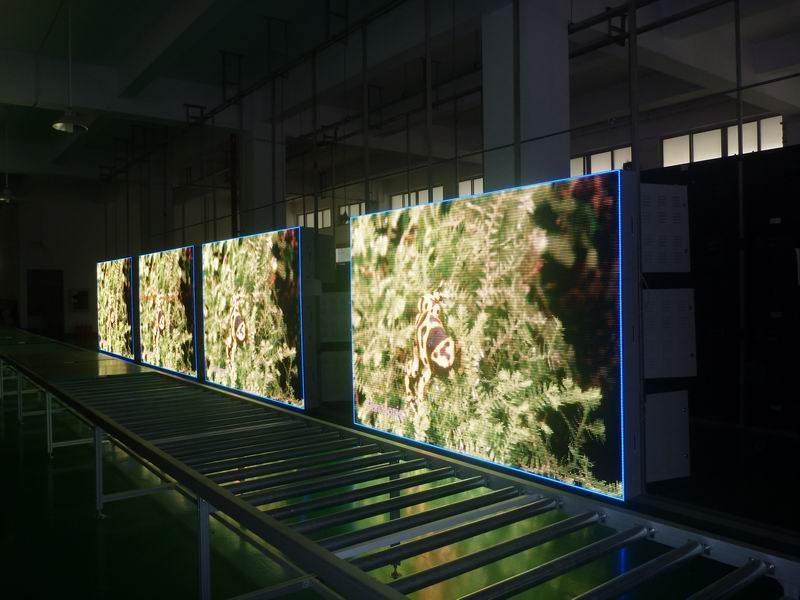

Outdoor Full Color LED Display (P8 advertising LED Display Screen)/LED sign/LED wall
1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
Description:LED Display /led display screen/LED sign/LED video wall
1). Model No.: P6.67 mm( SMD 3535 ), P8mm( SMD 3535 ), P10mm( Dip346 )
2). Display Color: 256*256*256
3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
7). Guarantee
Parameters | Outdoor Die-casting LED Display Series ( 640 MM X 640MM ) |
| Pixel Pitch (mm) | 6.67mm | 8mm | 10mm |
| Pixel density(pix/m2) | 22545 | 15625 | 10000 |
| LED Type | 3535 | 3535 | 3535 |
| Viewing Angle | X,Y140° | X,Y140° | X,Y140° |
| Brightness(nits) | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/6 | 1/5 | 1/2 |
| Color Depth | 65536 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 |
| Module Size (mm) | 320×160×16 |
| Cabinet Size(mm) | 640×640×80 |
| Cabinet Material | aluminum |
| Cabinet weight(kg) | 12 | 17 | 17 |
| Voltage | 200-240V |
| Average.power(W/m2) | 230 | 230 | 230 |
| Max.power (W/m2) | 700 | 700 | 700 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC(CE)Rosh |
Die cast rental screen 640 mm x 640 mm Feature :
P65 and Seamless Connection ,New design, suitable for outdoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks.
Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.
Quick and Easy Installation in 5 Seconds ,Fast lock for quick and easy installation.
Maximum support 50pcs hanging in a collum.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
