| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chip: |
Epistar/Silan (Optional) |
| Pixel Configuration: |
SMD3528 |
| IC: |
Jxi5020/Mbi5020/Mbi5024 (Optional) |
| Resolution: |
27777dots/Sq.M |
| Driving Method: |
1/8,1/16 Scanning (Optional) |
| Module Size: |
192X192mm |
| Cabinet Size: |
Rental Aluminum/Die-Casting Aluminum/Aluminum Prof |
| Refresh Rate: |
350Hz |
| Viewing Angle: |
160°/140° |
| Certificates: |
CE,RoHS,CCC,ISO9001 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| IP Rating: |
IP43 |
| Certification: |
ETL |
Product Description
High definition p6 led video display SMD rental led screen for indoor:
Display and Control Feature |
Structure Feature |
Spec ification |
Parameter |
Specification |
Parameter |
Pixel Pitch |
6mm |
Module size |
384mm*192mm |
Pixel composing |
1R1G1B |
Module resolution |
64 dots*32 dots |
Wavelength (R) |
625±5 |
Standard cabinet size |
768mm*768mm |
Wavelength (G) |
522±5 |
Weight per sqm |
45 Kg/sqm |
Wavelength (B) |
567±5 |
Protection classification |
--- |
Wave Angle (H) |
160°(H)/140°(V) |
Install mode |
Wallmount, hung and stand structure |
LED Chip |
SMD3528 |
SMD TYPE |
SMD 3in1 |
Density |
27777dots/sq.m |
Working Power |
Display color |
256*256*256 |
Specification |
Parameter |
Whiteness brightness |
≥1600cd |
Working voltage |
AC 220v/380v±10% 47~64Hz |
Brightness level |
128 grade |
Max power/sqm |
1500W/sqm |
Changing frame frequency |
60 Hz |
Average power/sqm |
700W/sqm |
Refresh |
350 Hz |
Short circuit protection |
Yes |
Driving method |
Constant driving 1/8 |
|
|
Control mode |
synchronous |
Working Environment |
Display port |
DVI |
Specification |
Parameter |
Display mode |
1024*768 1024*1024 |
Environment |
Indoor |
Out of control |
1/10,000 (scattered) |
Working temperature |
--30 °C~60°C |
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Features & Technical Specification:1. Wide application field & short ROI time: commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast ratio: 4000:1 Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
5. Convenient Servicing: Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

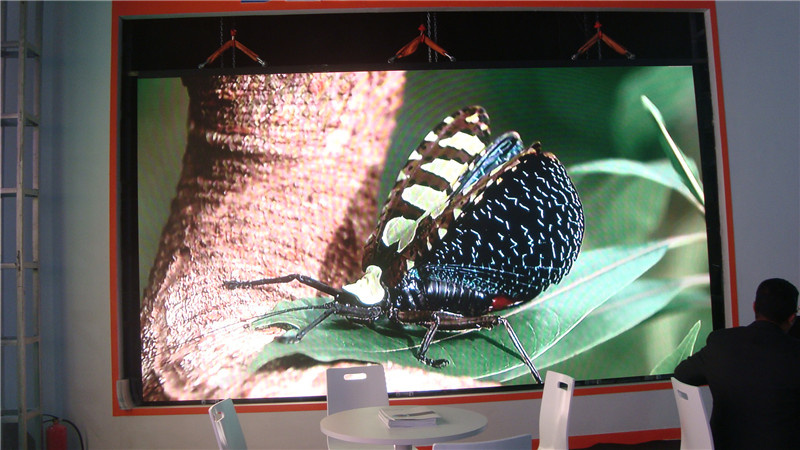

Screen Project:

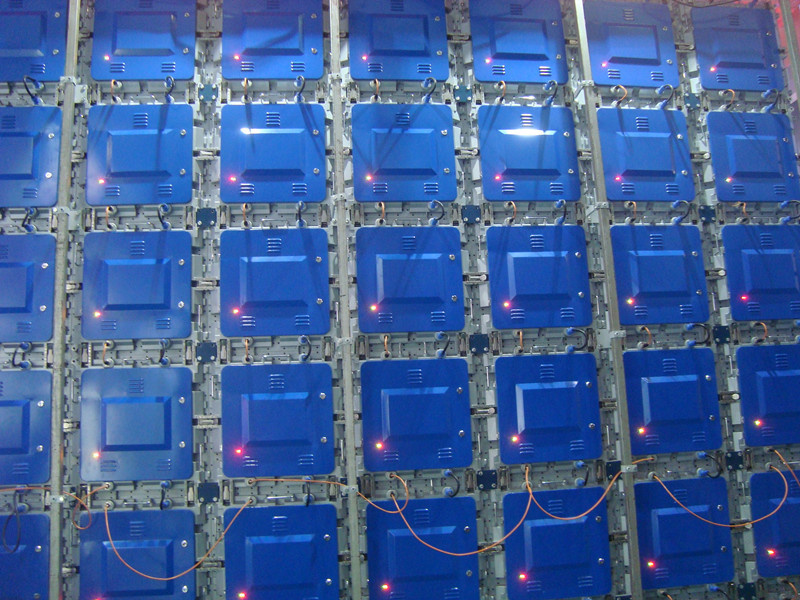

Details:1. Ultra-thin thickness: 76mm
2. Light weight: 8 kg per square meter (exclusive of power supply and LED module kit)
3. Excellent heat dissipation
4. Strong hardness and high precision
5. Excellent corrosion and rust resistance
6. Processes: CNC punching, shearing, riveting, drilling, welding, polishing, phosphating, spraying, assembly, silk-screen printing, packing.
7. Easy installation: Pushing, spinning and fastening only for 10 seconds.
8. Various appearance designs( mold and appearance of box can be modified slightly).
9. Size of tensile aluminum box series of boxes is as follows: 480mmX480mm,480mmX960mm,500mmX500mm, 500mmX1000mm, 512mmX512mm,576mmX576mm,640mmX640mm,768mmX768mm,800mmX800mm
If you want to place an order , please let me kown:
1. The width and height of your screen?
2. control system, synchronous or asynchronous?
3. cabinet material, iron,aluminum, rental or die-casting aluminum?
4. Package, Anti-shaking wooden case or Flight case?
5. Some other special request.
Our service:
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 3 years, a little investment for longer warranty time.
Being an over 12 years' LED display supplier, our company has developed an outstanding reputation for manufacturing and distributing all types of premium indoor and outdoor LED displays for commercial use including outdoor LED displays, LED billboards, mobile LED trailers and more at manufacture direct pricing. We are a leader in advanced LED technology with proprietary signage and software solutions.
