| Prod Model: |
FIS-P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
P5 Indoor LED Display |
| Module Size: |
160mm*160mm |
| IC: |
Mbi5020 |
| LED Chip: |
Epistar |
| Brightness: |
1900CD/Sq.M |
| Cabinet Size: |
640mm*640mm |
| Cabinet Material: |
Iron/Aluminum/Rental Cabinet |
| Weight: |
35kg/Sq.M |
| Function: |
Video/Graphic/Text |
| IP Grade: |
IP43 Front, IP30 Back |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
40,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
Product Description
P5 Indoor LED Display:
1. Application
Advertising LED display , shopping mall LED display for logo showing , bank &stock exchange LED display for rates showing ,train & bus station , airport ,school message board, telecommunication LED Screen system for information showing and instruction , Stage performance and so on .
2. Feature
Excellent visual effect, clear and exquisite, Good flatness, good viewing angle, vivid mixed colors, easy to assembly, install and transport with simple packing and convenient use, excellent heat-sinking, high stability ,no scrapped lamp .
3. Our advantage
1. Rich experience: established in 2005; familiar with technical and material about LED display and LED light.
2. Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
3. Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
4. Good quality: stable performance .
5. Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
6. We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime, and we will inspect our products which have been sold periodically.
Hight quality with favorable price and professional severice, you can't miss it !!!!
4. Specification
Pixel pitch
|
5mm
|
Module size
|
160mm*160mm
|
Module density
|
40000dots/sqm
|
Module resolution
|
32*32
|
Pixel configuration
|
SMD1R1G1B
|
Red wavelength
|
Epistar taiwan 625±2nm
|
Green wavelength
|
Epistar taiwan 525±2nm
|
Blue wavelength
|
Epistar taiwan 470±2nm
|
Best viewing distance
|
From 5m to 150m
|
Horizontal viewing angle
|
110°
|
Vertical viewing angle
|
90°
|
Maximum power consumption
|
Below 800W
|
Brightness
|
7500cd/sqm
|
Gray scale
|
More than 4096
|
Control method
|
Synchronization
|
Driving method
|
4Sconstant current
|
Frame frequency
|
60Hz
|
Refresh frequency
|
More than 300 Hz
|
Working voltage
|
AC220V±5%
|
IP grade
|
IP43
|
Working temperature
|
-20°C±50°C
|
MTBF
|
More than 5,000 hours
|
Life span
|
More than 100,000hours
|
Cabinet style
|
Waterproof cabinet
|
Cabinet size
|
W1024*H1024*D180mm
|
Cabinet weight
|
35kgs
|

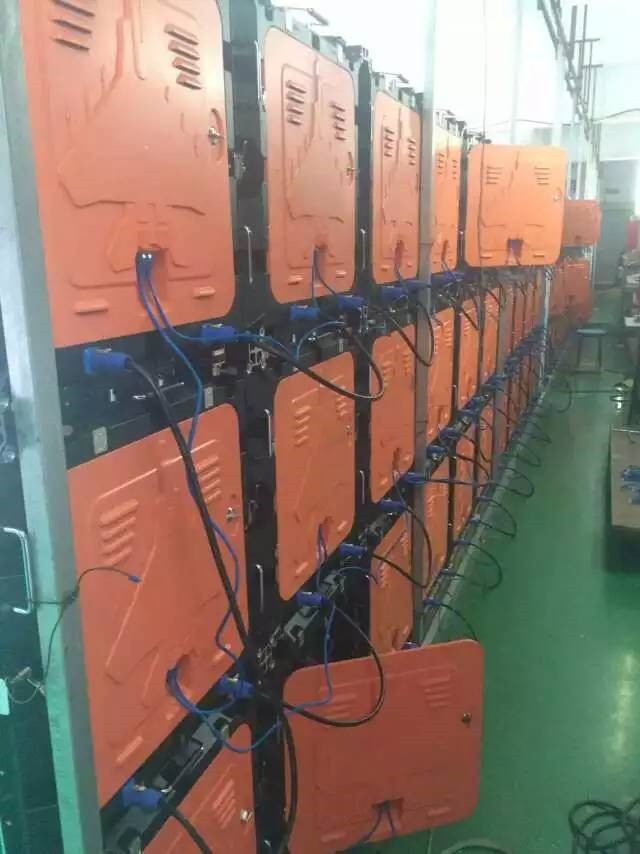

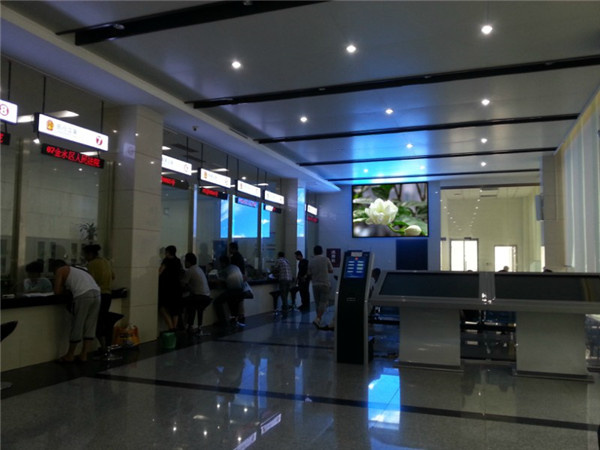

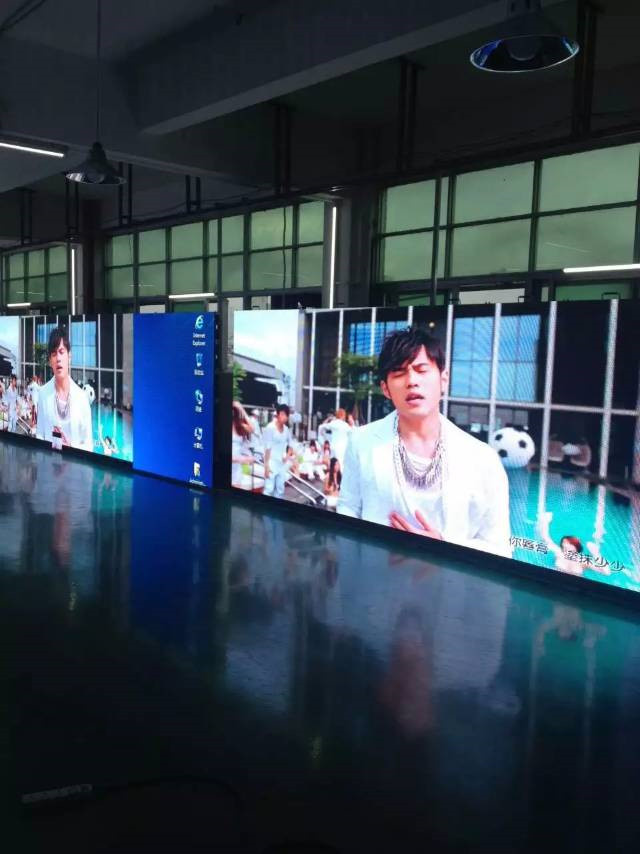

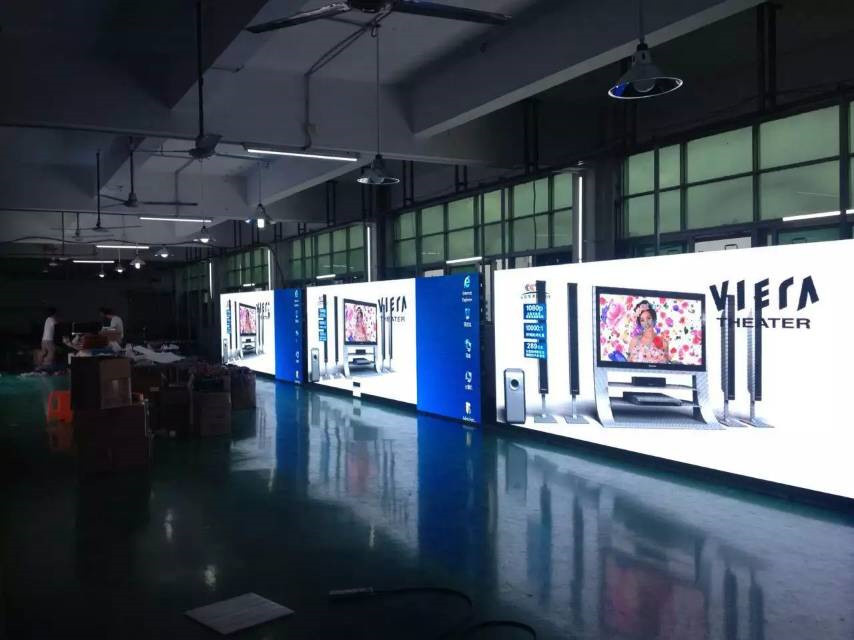

5. Project Pictures1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system 7. Product list1.P1.9/P2.5/P3/P4/P5/P6/P7.62/P10...indoor full color led display;
2.P5/P6/P7/P8/P10/P12/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.8. ServiceOur goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer.
No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture,deliver to installation and after-service.
We can manufacture strictly according to your drawings and request.
We can design ourself to supply you a most suitable proposal to you.9. Quality:Raw material reserves: Steel bought from major steel mill
Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC Continuous mode of production lines etc
Strictly quality control: Manufacture strictly according to drawings, Inspection every link,Pre assembled before delivery.10. Design& Delivery & Packingsales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.
With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.11. Certificate:We have ISO9001:2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
Being an over 12 years' LED display supplier, our company has developed an outstanding reputation for manufacturing and distributing all types of premium indoor and outdoor LED displays for commercial use including outdoor LED displays, LED billboards, mobile LED trailers and more at manufacture direct pricing. We are a leader in advanced LED technology with proprietary signage and software solutions.
