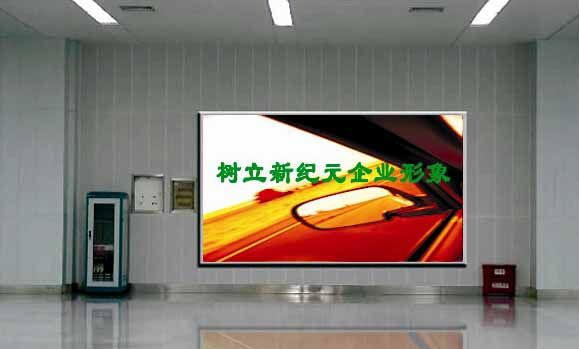

Prod Model: |
p6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
192mm*96mm |
Module Resolution: |
32*16 |
LED Light: |
Taiwan Epistar |
Module Weight: |
0.25kg/PC |
Brightness: |
1750CD/M2 |
Pixel: |
SMD Three in One |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Scanning Mode: |
1/8 Scan |
Application: |
Education |
Pixel Configuration: |
1R,1G,1B |
Pixel Pitch: |
6mm |
Certification: |
FCC |
Pixel Density: |
27,777 dots / m² |
System Operating Platform: |
WIN XP |
IP Rating: |
Depend on Customer Demand |
Product Description
Type: PH6
Pixel pitch(mm): 6mm
Pixel density(DOT/m² ): 27778
Pixel specification: 1R1G1B
View degree: 110
Module size: 192mm*96mm
Module resolution(DOT * DOT): 32*16
Module number / cabinet: Depend on cabinet size
Grey level(level): 4096
Refresh rate(Hz): >380
Brightness(CD/m² ): ≥ 1750
Weight(kg/m2): 20-24
Display color(color): 16777216
Best distance(m) >5
Power(w/m2)Max: : 800W
Average value: 266W
Drive mode: 1/8 scanning, Constant-current drive
Blind spot rate: ≤ 0.0003
Lifetime: 50000 hours
Working voltage (V): 110V/220∨ ± 15%
Working temperature (º C): -20º C~60º C
Working humidity (RH): 10%~90%RH
Control mode Synchronous control
Control system PCTV card +DVI display card+ main control card +fiber transfer
Software LED by studio or the user
Computer WINXP/WIN2000/WIN98 etc.
Display card DVI
Control distance Twisted-pair 100m, Fiber ≥ 500m
Shenzhen Yilong LED display Co., Ltd.Is specialized manufacturer in LED display and LED lightings, which was founded in year 2006.Yilong intergrates designing, manufacturing, sales, engineering services also after services.The quality system management ISO9001 and with many facilities as high-speed fully automated SMT machine, fully automated glue-pouring machine, reflow ovens, wave-soldering, also engineers with rich experience and skilled workers.
With an excellent quality and services, Yilong has owned rich customers'reputations both from China also from other countries in the world as Taiwan, Hong Kong, Singapore, USA, South-Africa, etc…Our main products include LED display screen single color, bi-color and full color and various modules.
