| Prod Model: |
P6 indoor led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size 576 Mm X 576mm: |
SMD3528 |
| Die Cast Alumium: |
Cabinet Weight 9 Kg |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP43 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
180W / m² |
| Pixel Pitch: |
6 |
| Pixel Density: |
27777 |
Product Description
Product Name:P6 Indoor LED Display for Stage Show1 Humanized structure designing guarantees the minimum assembly gap as 0.1mm between cabinets, Thickness of this cabinet is only 76.4mm2 Equipped with patented fast locks, durable and graceful. Easy assembly and dismantling
3 Speedy heat venting designing ensures steady cooling of the cabinets even equipped no fans4 A light base lessens the space,occupied by the display. P6 Indoor LED Display for Stage ShowApplication :

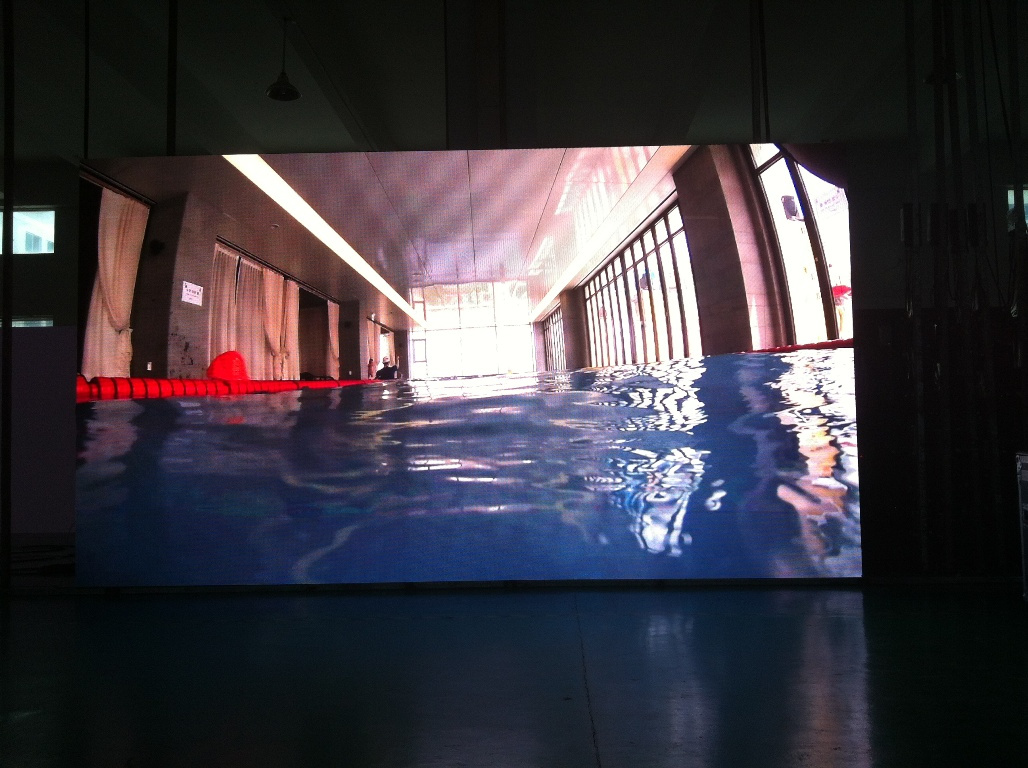

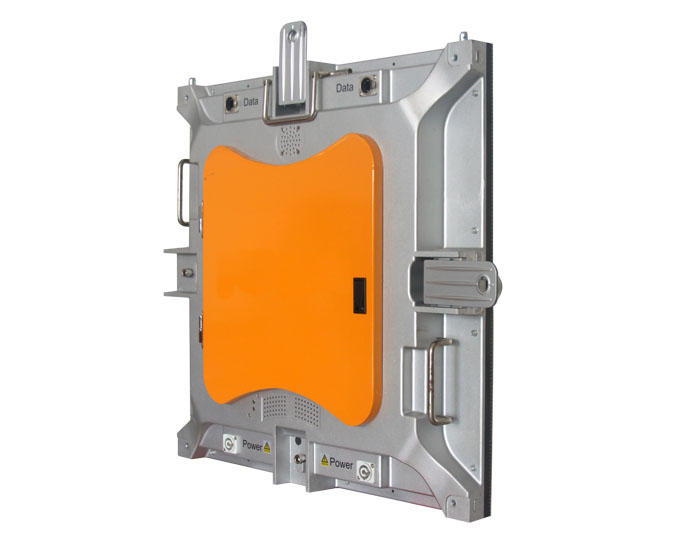

it is mainly used in high-grade entertainment disco, large-scale song and dance show, fashion show, outdoor advertising signs, building curtain wall etcP6 Cabinet view :
| Parameters | Indoor Die-casting LED display classical series(576*576) |
| Pixel Pitch (mm) | 4 mm | 5.33mm | 6mm |
| Pixel density(pix/m2) |
43402 | 35200 | 27777 |
| LED Type | SMD3528 |
| Viewing Angle | H:140°,V:140° |
| Brightness(nits) | 2500 | 2500 | 2000 |
| Drive Method | 1/15 | 1/9 | 1/12 |
| Color Depth | 16bit |
| Refresh Rate(Hz) | 600HZ | 1200HZ |
| Module Size (mm) | 288×288 |
| Cabinet Size(mm) | 576×576 |
| Cabinet Material | Die-cast aluminum |
| Cabinet weight(kg) | 10.5 |
| Voltage | 110/250V |
| Average.power(W / m2) | 170 | 270 | 190 |
| Max.power (W / m2) | 500 | 800 | 560 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
Feature :
1 Super thin and light weight(weight :9KG, thickness :80mm),
2 high refresh rate , high gray scale ,high contrast rate , perfect viewing effect.
seamless connection and soft image.
3Energysaving , environmental protection, low power consumption with average 160 W/m², save more than 50% energy.
4easy and fast installation without tools, and both for fixed installation and rental using, support hot-plug connection, and safety operation.
5 aluminum die-casting cabinet, flatness and uniformity screen with cabinet
6 difference controlling within 0.1mm and screen gap within 0.5mm.
both for fixed installation and rental using, various installation condition.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
