P6 -960X384mm Taxi LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LS-TX-P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2500nits |
| Viewing Angle: |
140/140 |
| Panel Size: |
W960mm*H384mm |
| Housing Size: |
W1,160mm*H480mm*D376mm |
| Panel Weight: |
21kg |
| Panel Design: |
Double Face |
| Panel Material: |
Aluminum |
| Panel Color: |
Silver/Yellow/Customized |
| Weather Protection: |
IP65/65 |
| Resolution Per Panel: |
160*64 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Certification: |
UL |
| Pixel Pitch: |
6mm |
| Average Power Consumption: |
320 |
| Pixel Density: |
27,777 |
| Application: |
Taxi Top |
Product Description
Introduction
LEDSOLUTION is a professional manufacturer in the market of LED Display.Providing high quality with competitive price is our principle for business with customers.Our products and service are well-received around the world.To choose LEDSOLUTION is to choose perfect LED solutions.
General

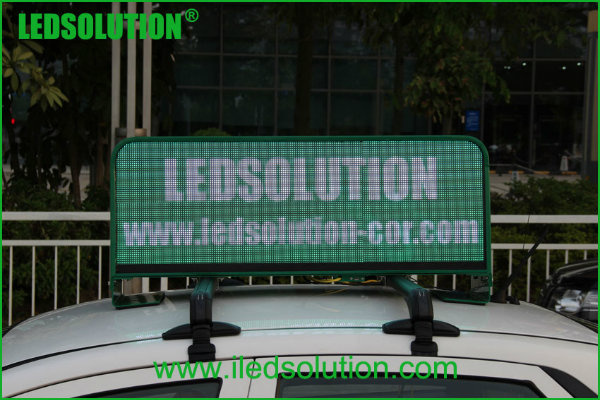

LED taxi display is especially suitable for outdoor mobile advertising. It's very lightweight and thin. Data interconnection by USB or 3G, easy for real time information publish. LED taxi display is one of the most cost saving and effective advertising media.
Specification
*3-year warranty
*Easy assembly
*Excellent after-sales services
*CE, RoHS, ISO, UL, ETL certificates
| Parameter | Value |
| Pitch | 6mm |
| Brightness | 2,500nits |
| Color temperature | 6,500 deg. K |
| Viewing angle – Horizontal (50% brightness) | 140(-70 ~ +70) deg. |
| Viewing angle –Vertical (50% brightness) | 140(-70 ~ +70) deg. |
| Panel weight | 21 kg |
| Panel size | W960mm*H384mm |
| Housing size | W1,160mm*H480mm*D376mm |
| Panel design | Double face |
| Panel material | Aluminum |
| Panel color | Silver/yellow/customized |
| Weather protection | IP65/65 |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | RH 10% ~ 90% |
| Pixel type and configuration | 3in1 SMD |
| Resolution per panel | 160*64pixel |
| Dot per panel | 10,240 |
| Dot per sq. meter | 27,777 |
| LED per sq. meter | 27,777 |
| Recommended minimum viewing distance | 4.56m |
| Recommended best viewing distance | 6~24m |
| Colors | 281 trillion |
| Grey scale (linear) | 65,536 levels per color |
| Contrast ratio | 1,000:1 |
| Processing depth | 16 bit |
| Video frame rate | 60 Hertz |
| Display refresh rate | 180~3,000 Hertz |
| Input voltage (nominal) | 9~36V |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 800W |
| Input power (typical) | 320W |
| Lifetime (50% brightness) | ≥100,000 |
| Red wavelength (dominant) | 620~625 nm |
| Green wavelength (dominant) | 520~525 nm |
| Blue wavelength (dominant) | 470~475 nm |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Controller | Asynchronous |
| Data interconnection | USB/3G wireless |
| Mounting system | Fixed with bolts |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
