| Prod Model: |
P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Physical Pitch: |
5mm |
| Pixel Configuration: |
1r1g1b |
| LED Specification: |
SMD3528(3-in-1) |
| Cell Board Dimension: |
320*160mm |
| Unit Board Rssolution(Length*Width): |
64*32 |
| DOT Ensity (DOT/M2): |
40000 |
| Brightness(CD/M2): |
>2000 |
| Scan Mode: |
1/16scanning |
| Visual Angle: |
Horizon 160degree, Vertical 110degree |
| The Best Visual Distance: |
>5m |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Application: |
Church |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
5mm |
| Certification: |
FCC,ISO9001,IP65 |
| System Operating Platform: |
WIN XP |
| IP Rating: |
IP65 |
| Pixel Density: |
40000dots/Sqm |
Product Description
Indoor full color led display
Product Description
Backdrop stage LED screen
1. CE, FCC, RoHS, C-tick, ISO9001: 2009;
2. Brightness: >1700CD/sqm;
3. High Refresh rate: 3000Hz-4800Hz;
4. Viewing angle: 110degree in vertical and 160degree in horizontal;
5.2 years warranty.
6. Long time techical support
Product Description

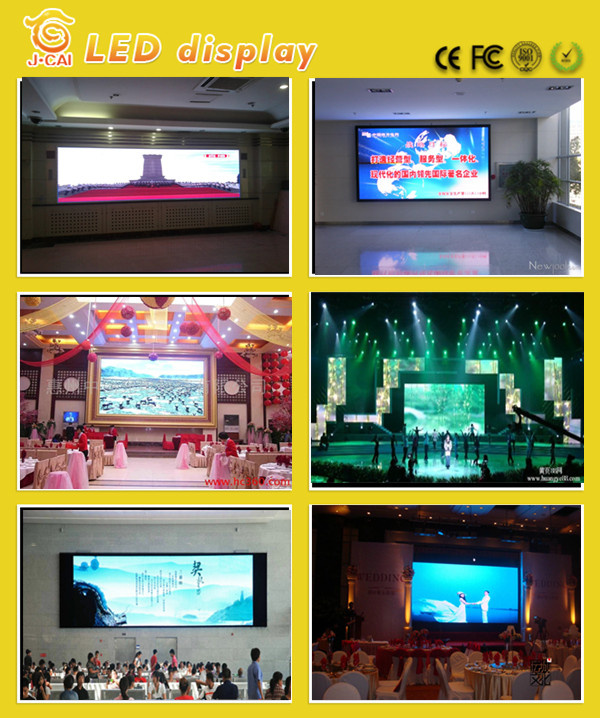

Indoor and outdoor Full Color LED Display Screen, usually used for Plaza, shopping mall, street side, high way, school, stadium, shows, entertainments etc with different commercial advertising purpose to attract more eye catching.
1. Focus on and only focus on LED display and modules more than 15 years
2. Customized LED Display and modules in irregular size and specifications, such as bus sign
3.1R1G1B as one pixel with top LED such as Silan, Epistar, etc.
4. Bigger modules, more flatness of screen surface
5. Best Color Uniformity and white balance; Color vividly, strong visual impact
6. Good heat dissipation, anti-shock with multi-layers PCB design
7. Constant current and static driver manner with longer life, low light decay
8. High brightness: More than 2000 nits per square meter for indoor display, and more than 8000 nits per square meter for outdoor display
9. Total black mask with high contrast ratio
10. On line free training for how to assemble LED display modules to cabinets, cabinets to screens, How to operate software, how to maintain, etc.
|
Pixel Pitch |
5mm |
|
Size(W×H) |
320mm*160mm |
|
Module Resolution(W×H) |
64*32 dots |
|
Pixel Density |
40000 (dots/ m2) |
|
Lamp Origin |
Epistar |
|
Pixel Configuration |
1R1G1B |
|
Led Specification |
SMD3528 (3 in 1) |
|
Gray Level/ Color |
65536 lever /16.7M |
|
Brightness |
≥1800cd/m2 |
|
Best view angle |
Horizon: 160° Vertical : 110° |
|
Control method |
Synchronous |
|
Scanning method |
1/16 constant current |
|
Power consumption |
Average: 220w/m2 Max:500w/m2 |
|
Best viewing distance |
3~25m |
|
Lifespan |
≥100,000 H |
|
MTBF |
≥10,001H |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥300HZ |
|
System Working Temperature |
–20°C ~ 50°C |
|
System Working Humidity |
10 ~ 90%RH |
|
Power |
5V/40A |
|
Module weight |
195G/PCS |
|
Brightness control lever |
0 ~ 100 lever |
|
Maintenance way |
Rear access |
|
Environment temperature |
-40°C ~ +85°C |
|
Suitable voltage |
DC5V |
|
Spending card |
kilomega network card |
|
Video signal |
PAL/NTSC |
|
Working voltage |
220V±10% |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
