| Prod Model: |
p4 SMD 3 in 1 indoor rental led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576 Mm X 576 Mm X 60 Mm |
| Module Size: |
288 Mm X 288mm |
| Warranty Time: |
2 Year |
| Cabinet Materail: |
Die CAS Alumium T Rental Cabinet |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Pixel Density: |
62500 |
| System Operating Platform: |
Windows(Win98\Win2000\ Win XP) |
Product Description

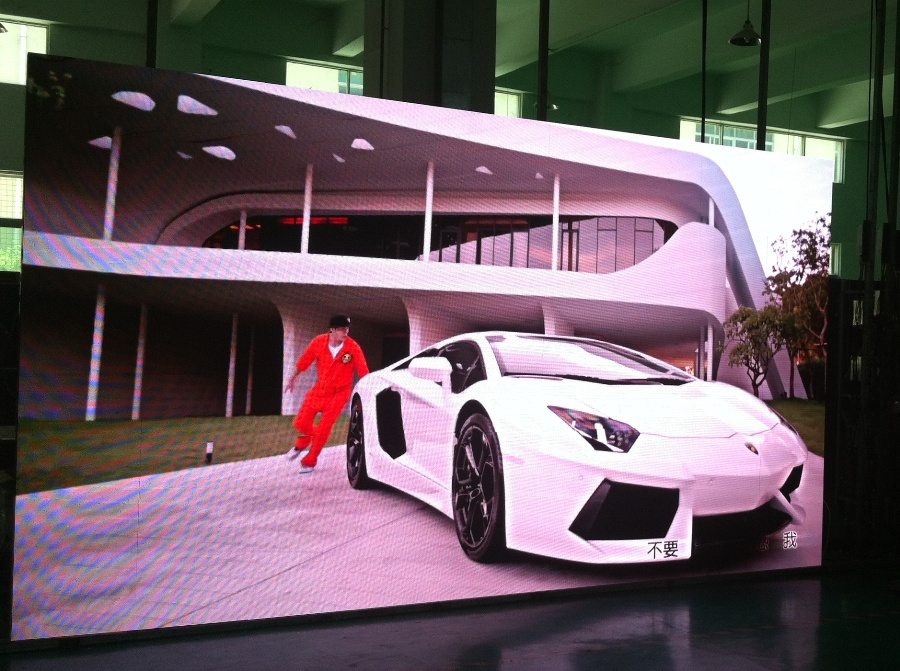

576 MM X 576 MM Die cast indoor rental LED Display
Application :Advertisement , Government Project , Theme Park, Stadium , Large Exhibition Hall and so on.Feature Adopts Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years.Features with light weight, thin body, silent working, and speedy heat venting, with graceful appearance.
Equipped with locks at four sides, can be hoisted and piled up. Smooth and steady.Fast assembling and disassembling
Singnal and power indicator light at outside of the cabinet, working status under watching, immediately response once fault happened

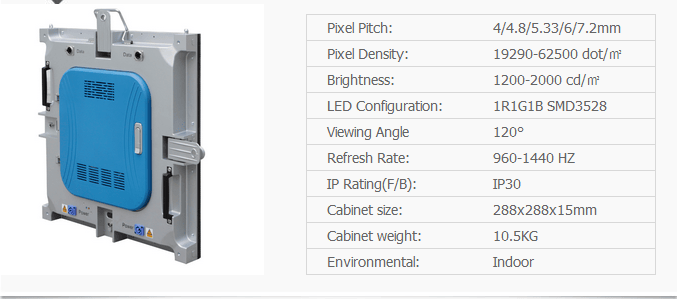

Detail Specification
| Parameters | Indoor Die-casting LED display classical series(576*576) |
| Pixel Pitch (mm) | 4 mm | 5.33mm | 6mm |
| Pixel density(pix/m2) |
43402 | 35200 | 27777 |
| LED Type | SMD3528 |
| Viewing Angle | H:140°,V:140° |
| Brightness(nits) | 2500 | 2500 | 2000 |
| Drive Method | 1/15 | 1/9 | 1/12 |
| Color Depth | 16bit |
| Refresh Rate(Hz) | 600HZ | 1200HZ |
| Module Size (mm) | 288×288 |
| Cabinet Size(mm) | 576×576 |
| Cabinet Material | Die-cast aluminum |
| Cabinet weight(kg) | 10.5 |
| Voltage | 110/250V |
| Average.power(W / m2) | 170 | 270 | 190 |
| Max.power (W / m2) | 500 | 800 | 560 |
| IP Grade | IP31 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |
Aging view :
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
