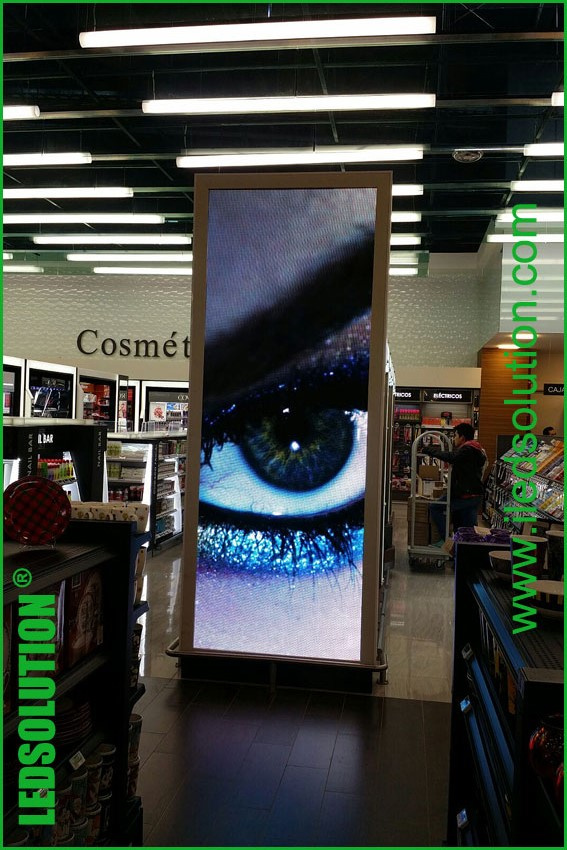

P4 Indoor Module Front Access LED Video Display
| Price: |
US $ 1500-4000/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T |
| Prod Model: |
LS-I-P4-MF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1,500nit |
| Viewing Angle: |
140/140 |
| Panel Size: |
512X512mm |
| Resolution Per Panel: |
128X128 |
| Panel Weight: |
18kg |
| Panel Material: |
Epoxy Paint Coated Cold Rolled Steel |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
3in1 SMD |
Product Description
Front Access/service LED Display/Screen, Acesso frontal LED, EL acceso frontal LED display
The front access LED display has two types:
1) Cabinet Front Service
This cabinet design suitable for both indoor and outdoor aplication only one cabinet virtical for the display.
2) Module Front Service
Features of the front access LED display:
* application for intallation site has no back maintenance space.
* zero distance from cabinet installation structure to the architecure wall.
LEDSolution LED Display:
Parameter | Unit | Value |
| Pitch | mm | 4 |
| Brightness | nits | 1,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle -Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle -Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 18 |
| Panel width | mm | 512 |
| Panel height | mm | 512 |
| Panel depth | mm | 150 |
| Panel area | sq. m. | 0.262 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Service access |
| Module front service |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 128x128 |
| Dot per panel |
| 16,384 |
| Dot per sq. meter |
| 62,500 |
| LED per sq. meter |
| 62,500 |
| Recommended minimum viewing distance | m | 4 |
| Recommended best viewing distance | m | 4~16 |
| Colors |
| 281 trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel | 300 |
| Input power (typical) | Watts / panel | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with4pcs M10 bolts |
