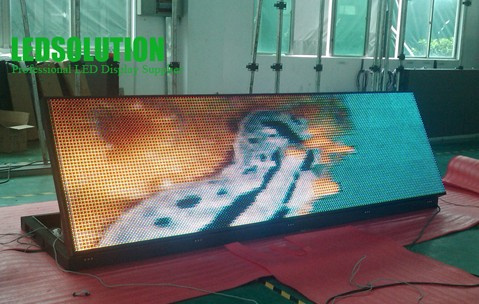

P20 Front Access LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
LS-O-P20-CF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
6, 000nits |
| Viewing Angle: |
130/60 |
| Panel Size: |
1,280X960 |
| Resolution Per Panel: |
64X48 |
| Panel Material: |
Epoxy Paint Coated Cold Rolled Steel |
| Panel Mode: |
Cabinet Front Service |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
20mm |
| Pixel Configuration: |
2R, 1G, 1B |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Average Power Consumption: |
196DOT/M&Sup2 |
| Pixel Density: |
2500DOT/M&Sup2 |
Product Description
Outdoor Front-Access/Service LED Display, Front Access LED-Anzeige, EL acceso frontal LED display
The front access LED display has two types:
1) Cabinet Front Service
This cabinet design suitable for both indoor and outdoor aplication only one cabinet virtical for the display.
2) Module Front Service
Module front service include LS-O-P16-MF and LS-O-P20-MF, both suitable for any display size outdoor.
Features of the front access LED display:
* application for intallation site has no back maintenance space.
* zero distance from cabinet installation structure to the architecure wall.
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 20 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle - Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 65 |
| Panel width | mm | 1,280 |
| Panel height | mm | 960 |
| Panel depth | mm | 200 |
| Panel area | sq. m. | 1.2288 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Panel Mode |
| Cabinet Front Service |
| Ingress protection (front/rear) | IP | IP65/IP65 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 2,1,1 |
| Resolution per panel |
| 64x48 |
| Dot per panel |
| 3,072 |
| Dot per sq. meter |
| 2,500 |
| LED per sq. meter |
| 10,000 |
| Recommended minimum viewing distance | m | 15.2 |
| Recommended best viewing distance | m | 20~60 |
| Colors |
| 1,073.7 million |
| Grey scale (linear) | Levels | 1,024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / sq. m. | 488 |
| Input power (typical) | Watts / sq. m. | 196 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with 4pcs M10 bolts |
