P4 Indoor High Resolution LED Video Display for Advertising

Prod Model:	P4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Chip:	Epistar/Silan (Optional)
Pixel Configuration:	SMD2121
IC:	Jxi5020/Mbi5020/Mbi5024 (Optional)
Resolution:	62500dots/Sq.M
Driving Method:	1/16 Scanning (Optional)
Module Size:	256mm*128mm
Cabinet Size:	Rental Aluminum/Die-Casting Aluminum
Refresh Rate:	350Hz
Viewing Angle:	160°/140°
Certificates:	CE,RoHS,CCC,ISO9001
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	4mm
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/8 Scan
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Advertising
IP Rating:	IP43
Certification:	ETL
Pixel Density:	62500dots/Sq.M

Product Description

P4 Indoor High Resolution LED Video Display for Advertising:

Display and Control Feature		Structure Feature
Spec ification	Parameter	Specification	Parameter
Pixel Pitch	4mm	Module size	384mm*192mm
Pixel composing	1R1G1B	Module resolution	64 dots*32 dots
Wavelength (R)	625±5	Standard cabinet size	768mm*768mm
Wavelength (G)	522±5	Weight per sqm	45 Kg/sqm
Wavelength (B)	567±5	Protection classification	---
Wave Angle (H)	160°(H)/140°(V)	Install mode	Wallmount, hung and stand structure
LED Chip	SMD2121	SMD TYPE	SMD 3in1
Density	62500dots/sq.m	Working Power
Display color	256*256*256	Specification	Parameter
Whiteness brightness	≥1600cd	Working voltage	AC 220v/380v±10% 47~64Hz
Brightness level	128 grade	Max power/sqm	1500W/sqm
Changing frame frequency	60 Hz	Average power/sqm	700W/sqm
Refresh	350 Hz	Short circuit protection	Yes
Driving method	Constant driving 1/8
Control mode	synchronous	Working Environment
Display port	DVI	Specification	Parameter
Display mode	768mm*768mm	Environment	Indoor
Out of control	1/10,000 (scattered)	Working temperature	--30 °C~60°C
lifetime	100,000 hours	Working Humidity	10~90%

Features & Technical Specification:
1. Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction

2. High Contrast ratio: 4000:1

Which is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip:

Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system

4. Easy Installation & Using:

easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

5. Convenient Servicing:

Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

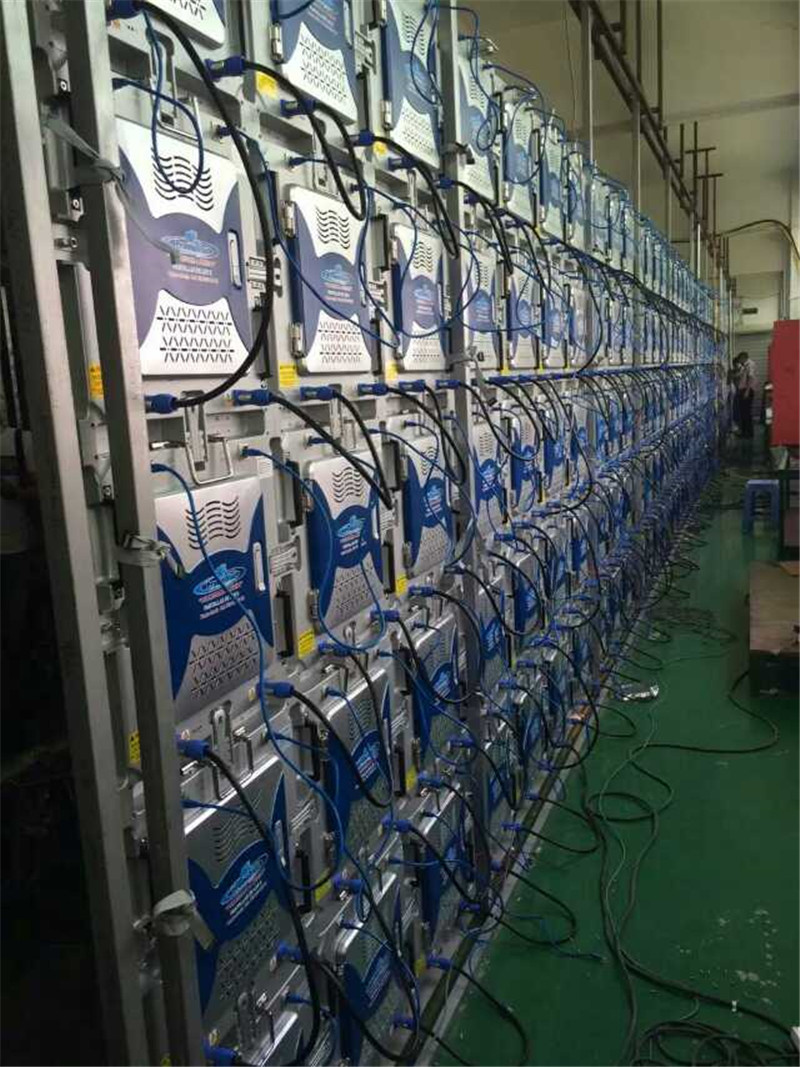

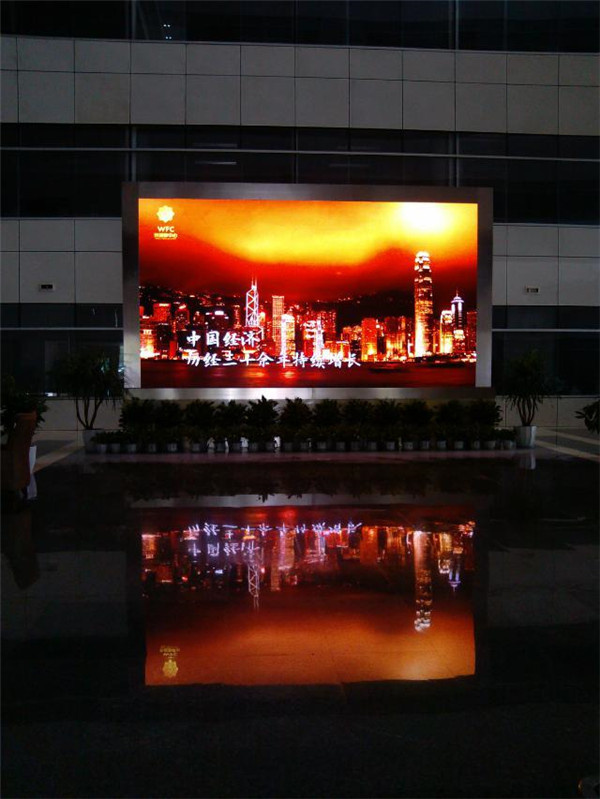

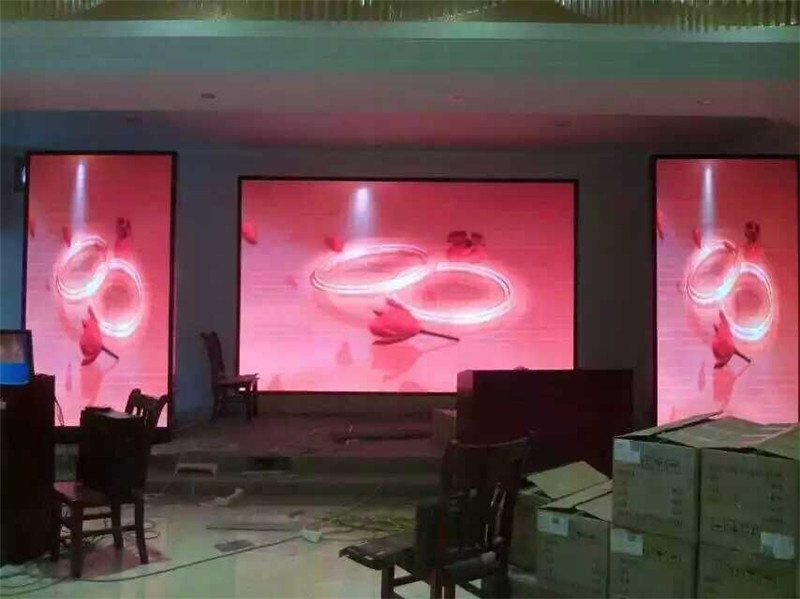

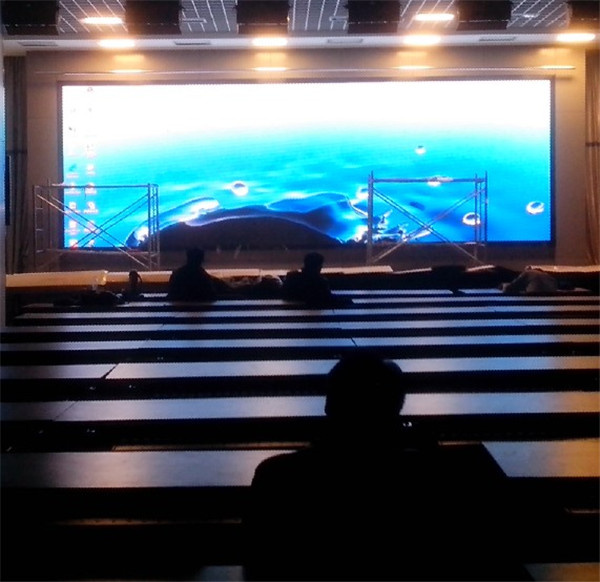

Screen Project:
 Details:

1. Ultra-thin thickness: 76mm

2. Light weight: 8 kg per square meter (exclusive of power supply and LED module kit)

3. Excellent heat dissipation

4. Strong hardness and high precision

5. Excellent corrosion and rust resistance

6. Processes: CNC punching, shearing, riveting, drilling, welding, polishing, phosphating, spraying, assembly, silk-screen printing, packing.

7. Easy installation: Pushing, spinning and fastening only for 10 seconds.

8. Various appearance designs( mold and appearance of box can be modified slightly).

9. Size of tensile aluminum box series of boxes is as follows: 480mmX480mm,480mmX960mm,500mmX500mm, 500mmX1000mm, 512mmX512mm,576mmX576mm,640mmX640mm,768mmX768mm,800mmX800mm

If you want to place an order , please let me kown:

1. The width and height of your screen?

2. control system, synchronous or asynchronous?

3. cabinet material, iron,aluminum, rental or die-casting aluminum?

4. Package, Anti-shaking wooden case or Flight case?

5. Some other special request.
