| Prod Model: |
P4 LED Panel |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ciq |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| Certification: |
RoHS |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Display |
| Scanning Mode: |
1/ 16 Scan |
| IP Rating: |
IP31 |
| Pixel Density: |
62500 Dost/Sqm |
Product Description
P4 indoor Ultra-thin led screen ,die-casting aluminum cabinet,10 KG each,60mm thickness,Novastar system,high refresh rate:2000Hz/s,High contrast rate up to 5000:1,very strong and precise,smooth surface,wide viewing angle.High definition but competitive prices
Features:
1.It is ultra-thin (60mm) and light weight (10KG),can save much costs especially shipped by air.
2.We use black body LED lamp,so the contrast rate is much higher than traditional white body LED lamp.Images on our LED screen looks very sharp.
3. High definition,27777 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end.
4.High strength,high precision due to that the cabinet material is die-casting aluminum,It is Low Tooling Cost, Molding In One, Stable Size, Short Lead Time.
5.Rapid assembling sets, only 3 steps to lock the adjacent cabinets,can save much labor cost
6. The new structure design enables diversified installation,can be hung-up or stacked;
7.The same cabinet can be compatible with different pitches:P4/P4.8/P5.33/P6

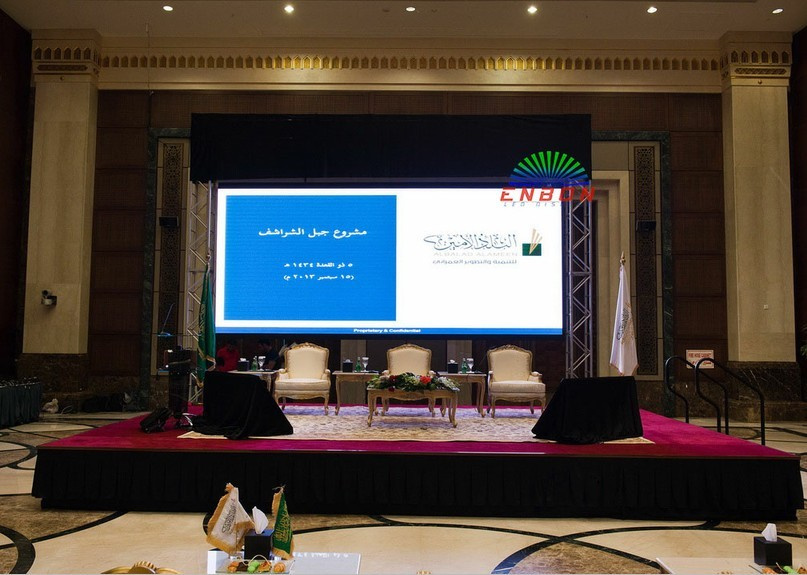

Some pictures of our Saudi digital wall projects showing below:
| The parameters of 576 sereis indoor LED display screen |
| Pixel Pitch | P4 | P4.8 | P5.33 | P5.33 | P6 | P6 |
|
| LED Chip | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan | Opto+Silan |
|
| LED lamp type | SMD(Black Body) | SMD3528(White Body) | SMD3528(Black Bodoy) | SMD3528(White Body) | SMD3528(Black Body) | SMD3528(White Body) |
|
| Pixel density | 62500dots/m 2 | 35200 dots/m 2 | 35200 dots/m 2 | 25600 dots/m 2 | 25600 dots/m 2 |
|
| Module size | 288* 288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm | 288*288mm |
|
| Cabinet Size(mm) | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm | 576*576*60mm |
|
| Cabinet pixels(W*H) | 144*144 dots | 120*120 dots | 108*108 dots | 108*108 dots | 96*96 dots | 96*96 dots |
|
| Driving Method | 1/16 scan | 1/15 scan | 1/9 scan | 1/9 scan | 1/8 scan | 1/8 scan |
|
| Driving IC | Sum2016 / Sum2017 / MBI5152 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5053 | MBI5020 / MBI5024 / MBI5042 / MBI5050 | MBI5020 / MBI5024 / MBI5042 / MBI5050 |
|
| Refresh Rate | ≥1000Hz | ≥1000Hz | ≥1500Hz | ≥1500Hz | ≥2200Hz | ≥2200Hz |
|
| Brightness | ≥1500CD/m 2 | ≥2500CD/m 2 | ≥1500CD/m 2 | ≥2500CD/m 2 | ≥1100CD/m 2 | ≥2500CD/m 2 |
|
| Max.Power Consumption | 800w/m 2 | 800w/m 2 | 1000w/m 2 | 1000w/m 2 | 1000w/m 2 | 1000w/m 2 |
|
| Average power consumption | 250w/m 2 | 250w/m 2 | 350w/m 2 | 350w/m 2 | 350w/m 2 | 350w/m 2 |
|
| Cabinet Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum |
|
| The weight of single cabinet | 11Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet | 10.5Kg/Cabinet |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
