| Prod Model: |
P10 |
| Module No.: |
P10 |
| Cabinet Size: |
960 W(mm)X960 H(mm) |
| Cabinet Resolution: |
96 Pixels(W)X96 Pixels(H) |
| Module Size: |
160 W(mm)X160 H(mm) |
| Module Pixels: |
16 Pixels(W)X16 Pixels(H) |
| LED Lamp Type: |
Epistar +Slian |
| View Angle(H/V): |
120/140 Degree |
| Brightness: |
>7500CD/Sqm. |
| Life Time: |
>100,000hours |
| Mtbf: |
5,000 Hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Average Power Consumption: |
250 W/Sqm |
Product Description

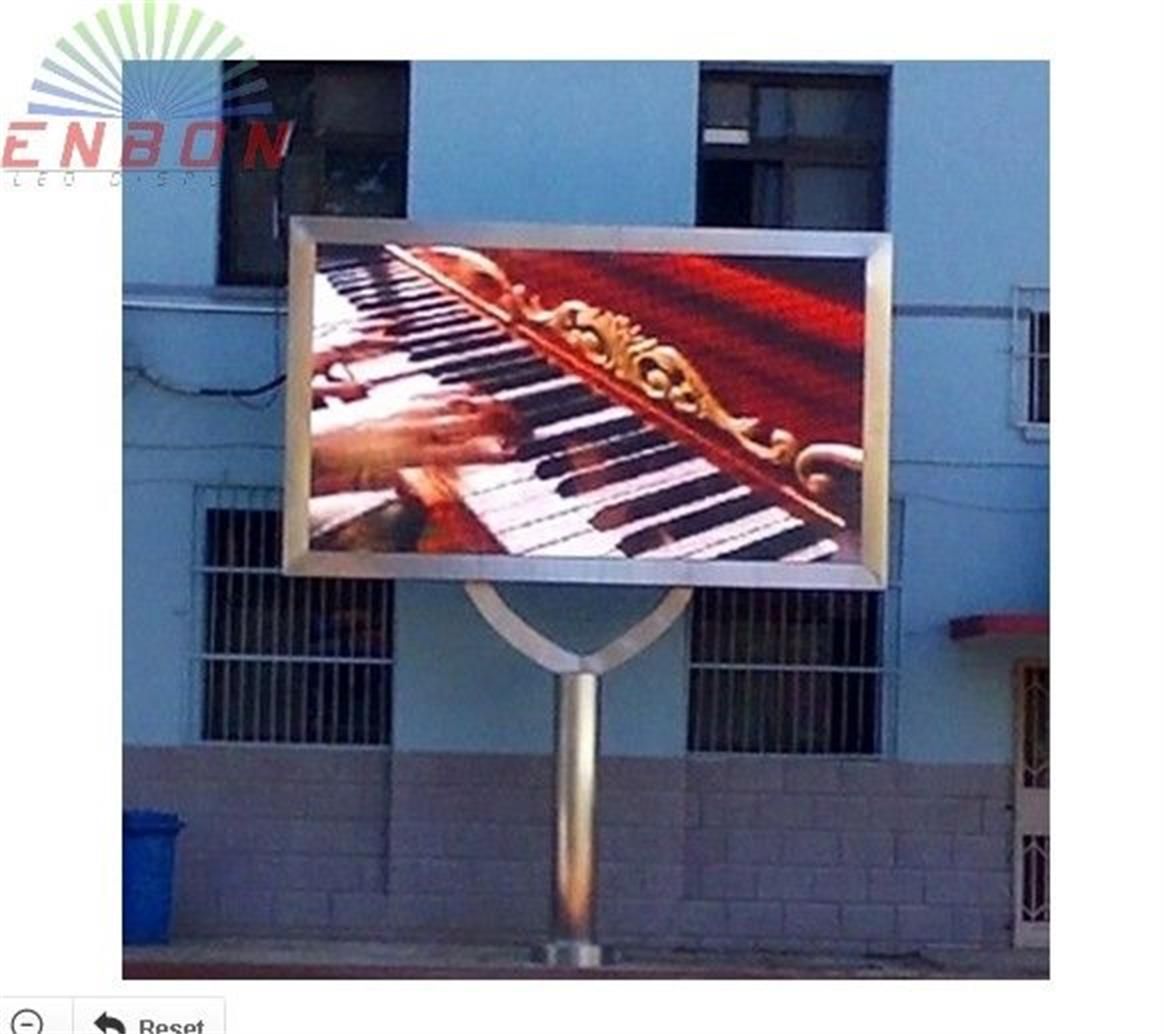

P10 DIP346 LED Advertising Display for permanence installation
P10 Outdoor Full Color Electronic LED display Board is one of the most popular models for outdoor advertising use, 10000pixels/sqm. Enbon Electronic board can display very clear video, images and texts.
Features of the LED video wall:
1) High definition, bringing very vivid viewing experience to audiences.
2) High brightness, over 7000nits, can meet requirements of different environments, no problem to work under direct sunshine.
3) Waterproof: IP65, no need do structure to protect the rear side of LED display, can save much costs
3) Long lifespan, High refresh rate, no scaning line when photographed...
4) Low maintenance cost, can be repaired by single lamp.
5) We have solution to make it saveing energy of 30%! ! ! ! ! ! !
6) The cabinet can be made thinner(135mm thickness) and lighter (by adopting aluminum material)
P10 is our competitive product, we produce huge per month, price is extremely competitive. Please contact me for a solution and we will respond in 1 day.
| Technical Prameters |
| PROJECT | P10 outdoor LED screen |
| Pixel pitch | 10mm |
| Pixel density | 10000 Pixels/sqm |
| Module size(W*H) | 160 W(mm) | 160 H(mm) |
| Module pixels(W*H) | 16 Pixels(W) | 16 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving static scan |
| LED lamp type | Epistar DIP346 |
| Cabinet size(W*H*D) | 960 W(mm) | 960 H(mm) |
| Cabinet resolution | 96 Pixels(W) | 96 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 120/70 degree |
| Brightness (White balance) | ≥7500cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:250W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 60 Kg / M 2 for Iron cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
