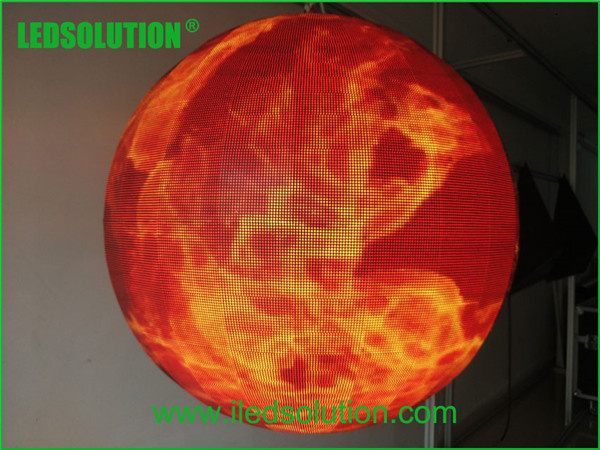

P4.8 Indoor Full Color Sphere LED Ball Display
| Price: |
US $ 5500-7000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
LS-BALL-P4.8-D1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1500nits |
| Viewing Angle: |
140/140 |
| Diameter: |
1,000mm |
| Panel Area: |
3.14sq. M. |
| Material: |
Steel |
| Package: |
Flight Case |
| Flight Case Size: |
1.2 * 1.2 * 1.4m |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Hotels |
| Certification: |
UL |
| Pixel Pitch: |
4.8mm |
| Pixel Configuration: |
3528SMD |
| IP Rating: |
IP23 |
Product Description
Company Introduction
LEDSOLUTION is a professional manufacturer of LED Display. We dedicate to supply high quality products with competitive prices. Our products and services are well-received around the world. It's our mission to satisfy evevry customer's expectation to the greatest extend.
To choose LEDSOLUTION is to choose perfect LED solutions!
Product Description
LED screen market is changing greatly, from traditional advertising display to irregular shape display. Expect the traditional function of showing information, LED display also updated the requirements on outside looking, which made it be more suitable for various occasion. P10 indoor LED ball display is born for stage rental use. It has 360 degree viewing angle, perfect playing effect, precise workmanship. You are worth it!
P4.8 LED Ball Features
1. Viewing angle: 360 degree
2. Frame structure: Light, convenient, firm
3. Ball's diameter: Customized as requested
4. Good heat dissipation
| Parameter | Unit | Value |
| Pitch | mm | 4.8 |
| Brightness | nits | 1,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Net Weight | kg | 70 |
| Diameter | mm | 1,000 |
| Panel area | sq. m. | 3.14 |
| Operating temperature range | deg. C | -30 to +60 |
| Material |
| Steel |
| Ingress protection (front/rear) |
| IP23 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Dot per sq. meter |
| 43,402 |
| LED per sq. meter |
| 43,402 |
| Recommended minimum viewing distance | m | 3.6 |
| Recommended best viewing distance | m | 4~60 |
| Colors |
| 281 trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/panel | 2,000 |
| Input power (typical) | Watts/panel | 800 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Control way |
| Synchronous |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging & Stand on ground |
| Package |
| Flight case |
| Flight case size | m | 1.2 * 1.2 * 1.4m |
| Gross weight | kg | 310 |
| Volume Weight | kg | 336 |
