| Prod Model: |
P3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
480mm*480mm |
| Weight: |
6.5kg/PCS (14.33 Lb/PCS) |
| Cabinet Size(mm): |
480*480*60mm |
| Driving IC: |
Sum2016 / Sum2017 / Mbi5152 |
| Brightness: |
>2000CD/M2 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 Dots /M2 |
| System Operating Platform: |
Windws XP, Windows 7 |
| IP Rating: |
IP31 |
Product Description
Our P3 indoor LED wall is ultra-thin and super light, each panel 480mm*480mm, we use special drive IC to reach high grey scale, high refresh rate and high brightness. This LED display board can show extremely clear and vivid image,especially good at displaying clear texts,ppt documents etc..

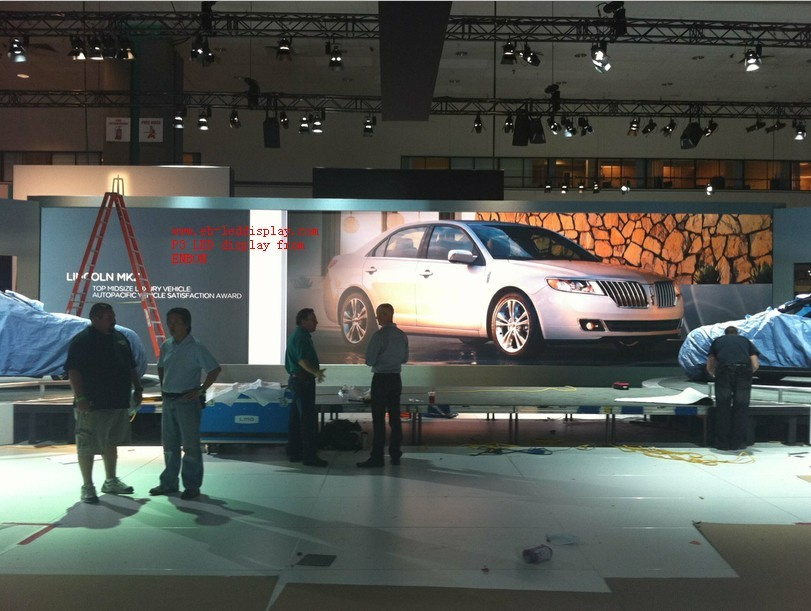

This led wall The new structure design enables diversified installation to meet the hanging-up and stacking requirements,can be stacked on ground or hung on truss so it's good for both rental application or fixed installation.
Other advantages:
1. Die casting aluminum material, is precise,strong and light
2. High refresh rate by choose Linsn or Novastar control system.
3. We use black LED for higher contrast rate up to 9000: 1
4. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness;
5. We adopt rapid assembling sets which is beautiful and user-friendly
6. Good thermal design, excellent heat dissipation even no fan installation,very quiet.
7. The same size cabinet can be compatible with P3, P3.75, P4, P5, you can update your LED panel only by chaning the LED module
P. S IT CAN BE NORMAL INDOOR LED DISPLAY TOO, MUCH LOWER PRICES AVAILABLE HERE!
| The parameters of 480 sereis indoor LED display screen |
|
| Pixel Pitch | P3 | P3.75 | P4 | P5 | P5 |
| LED Chip | Epistar+Silan | Epistar+Silan | Epistar+Silan | Epistar+Silan | Epistar+Silan |
| LED lamp type | SMD2121(Black Body) | SMD2121(Black Body) | SMD2121(Black Body) | SMD3528(Black Bodoy) | SMD3528(White Body) |
| Pixel density | 111111 dots/m2 | 71111 dots/m2 | 62500 dots/m2 | 40000 dots/m2 | 40000 dots/m2 |
| Cabinet Size(mm) | 480*480*60mm | 480*480*60mm | 480*480*60mm | 480*480*60mm | 480*480*60mm |
| Driving Method | 1/16 scan | 1/16 scan | 1/15 scan | 1/16 scan | 1/16 scan |
| Driving IC | Sum2016 / Sum2017 / MBI5152 | Sum2016 / Sum2017 / MBI5152 | Sum2016 / Sum2017 / MBI5152 | Sum2016 / Sum2017 / MBI5152 | Sum2016 / Sum2017 / MBI5152 |
| Refresh Rate | ≥100Hz | ≥900Hz | ≥1000Hz | ≥1500Hz | ≥1500Hz |
| Brightness | ≥2000CD/m2 | ≥1800CD/m2 | ≥1600CD/m2 | ≥1300CD/m2 | ≥2000CD/m2 |
| Max.Power Consumption | 1000w/m2 | 1000w/m2 | 1200w/m2 | 1000w/m2 | 1000w/m2 |
| Average power consumption | 450w/m2 | 420w/m2 | 400w/m2 | 250w/m2 | 250w/m2 |
| Cabinet Material | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum | Die cast Aluminum |
| The weight of single cabinet | 6.5Kg/Cabinet | 6.5Kg/Cabinet | 6.5Kg/Cabinet | 6.5Kg/Cabinet | 6.5Kg/Cabinet |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
