| Prod Model: |
P3 indoor LED Display |
| Module Size: |
240 * 240 |
| Module Resolution: |
80*80 |
| Cabinet Size: |
480*480 |
| Cabinet Resolution: |
256DOT*256DOT for Real |
| Module Weight: |
0.5kg |
| Cabinet Material: |
Alumium Cabinet |
| Cabinet Weight: |
8kg for Iron Cabinet |
| Brightness: |
More Than 1800CD |
| Fresh Frequency: |
More Than 600Hz |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111dots/Sqm |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
Product Description

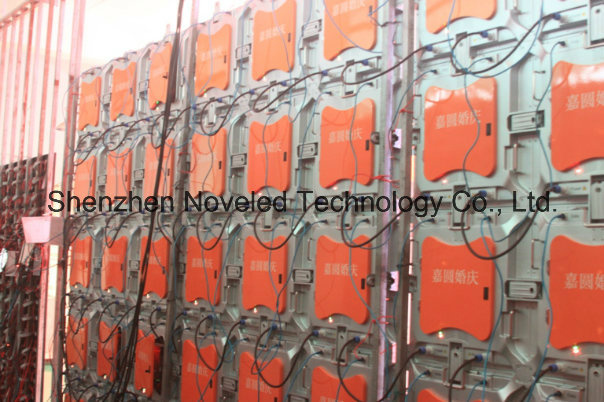

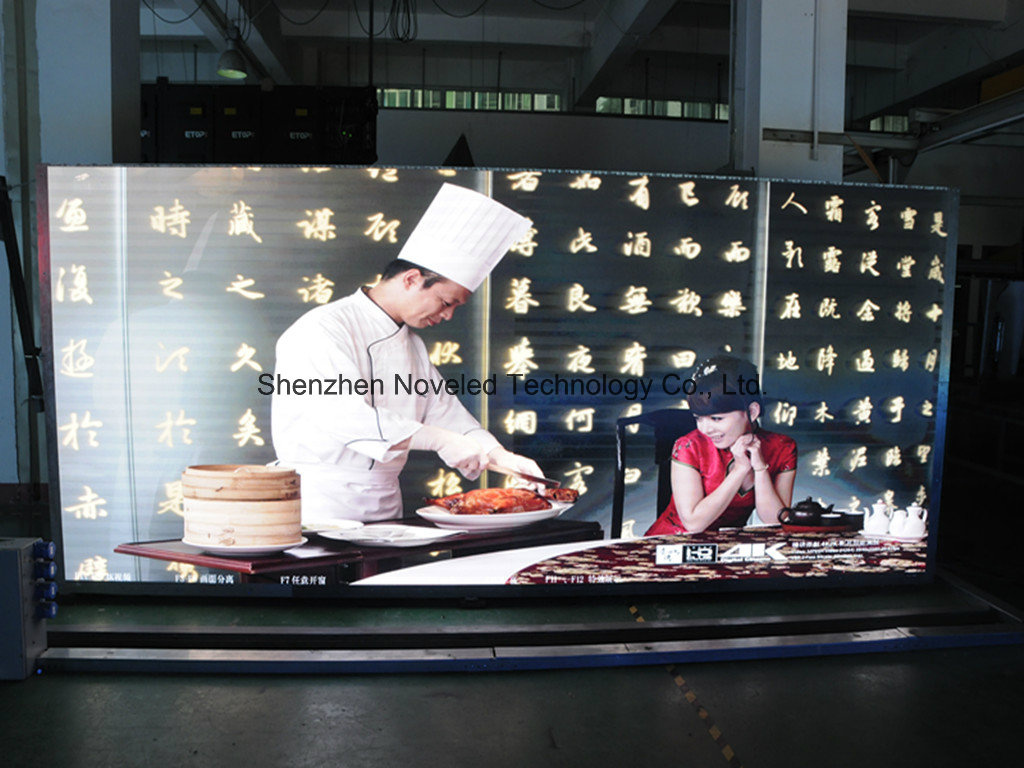

P3 indoor Die cast rental led display aging view in the factory
P3 indoor led display detail specifiction :
LED Parameters
| Item | Luminous Intensity | Viewing Angle(H/V) | Wavelength | Test Condition | |
| Red LED | 150-200mcd | 120º/120º | 620-630nm | 25ºC,20mA |
| Green LED | 260-330mcd | 120º/120º | 520-535nm | 25ºC,20mA |
| Blue LED | 55-65mcd | 120º/120º | 465-475nm | 25ºC,20mA |
Module Parameters
| Pixel Pitch | 3mm | |
| Pixel Configuration | 1R1G1B SMD2121 3in1 |
| Module Resolution | 80 dots*80dots for real |
| Module Pixels | 6400dots |
| Module Size | 240mm*240mm |
| Module Weight | 0.5KG |
Cabinet Parameters
| Cabinet Size(W*H*D) | 480 *480 (mm) or Customized | |
| Cabinet Resolution | 160dot*160dot for real |
| Module Quantity | 4pcs |
| Cabinet Pixels | 65536 dots |
| Pixel Density | 111111 dot/sqm |
| Avg. Power Consumption | 250W/sqm |
| Max. Power Consumption | 750W/sqm |
| Material | Aluminum |
| Cabinet Weight | 8KG for aluminum cabinet |
Screen Parameters
| Brightness | ≥1800cd/sqm |
| Contrasts (Max. /Min.) | 1.1:1 |
| Driving Method | 1/16 scan constant current |
| View Angle | Horizontal 120° Vertical 120° |
| Optimal Viewing Distance | 3m to 50m |
| Brightness Control | Red, Green and Blue 256 Grade/Each |
| Fresh Frequency | ≥600Hz |
| Frame Frequency | 50 - 60Hz |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| Defects Rate | ≤0.00001 |
| Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
| MTBF | >10,000 hours |
| Life Span | ≥100,000 hours |
| Brightness Uniformity | <3% |
| Earth Leakage Current | <3mA |
| Protective Grade | IP45 |
| Temperature-operating | -40°C to 60°C |
| Humidity-operating | 10% to 90% |
| Operating System | Windows98/me/2000/NT/XP/win7 |

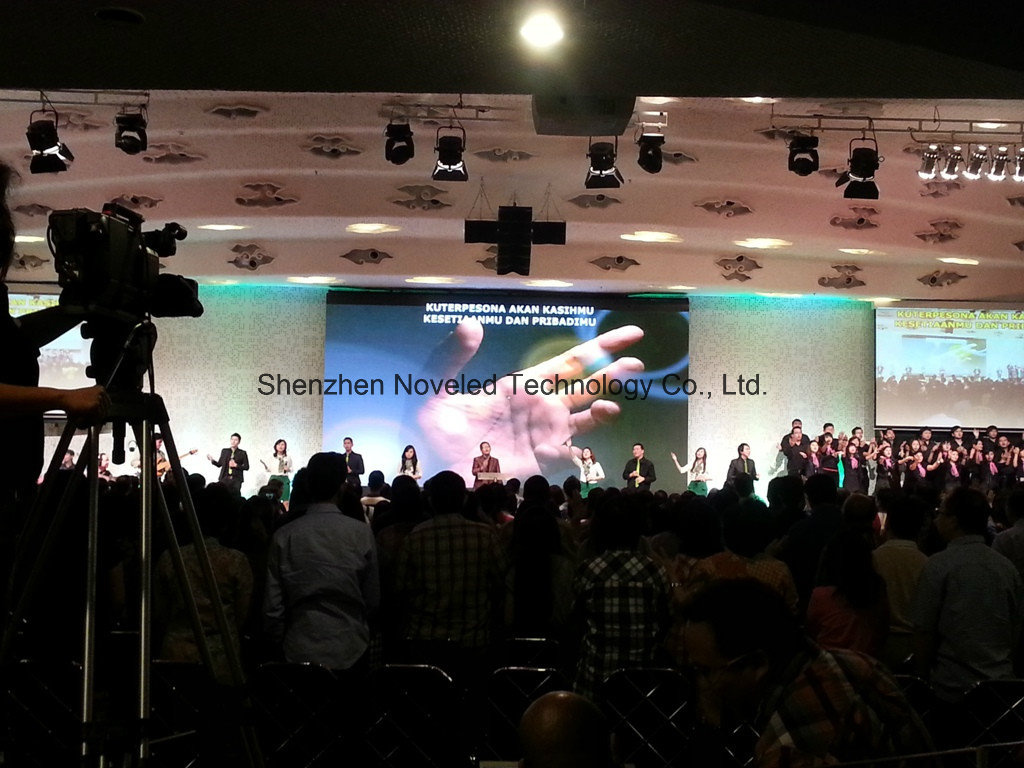

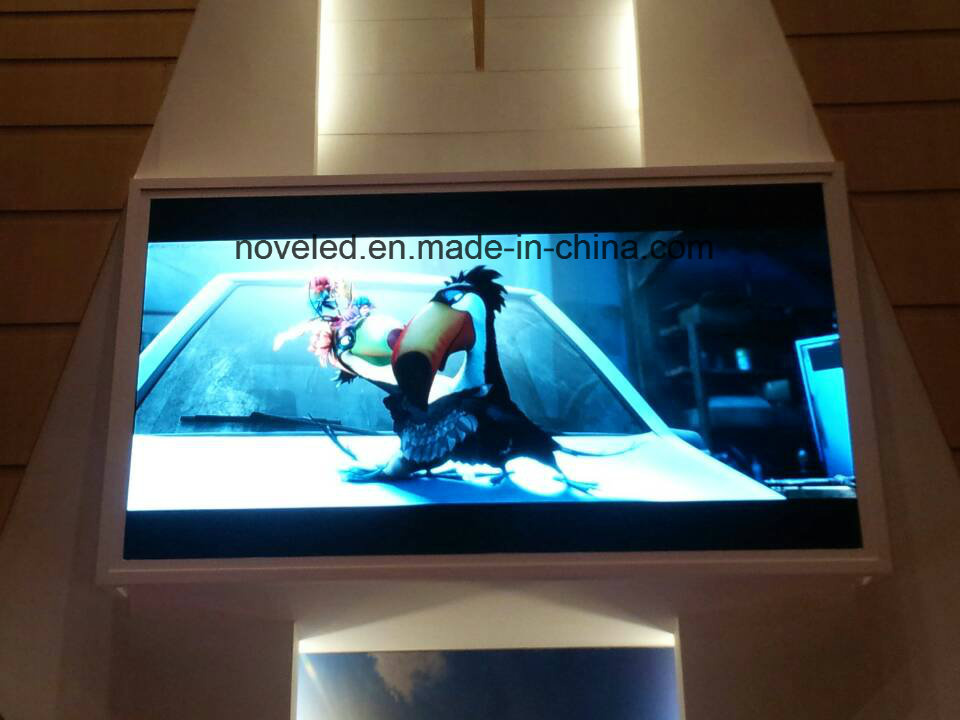

p3 indoor LED Display installation in the Indonesia

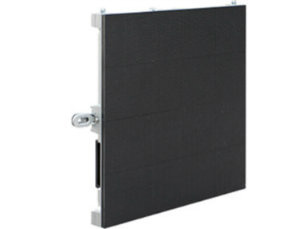

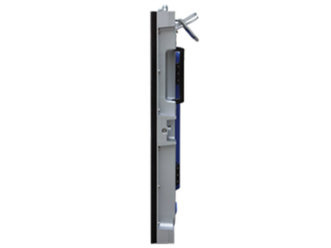

The P3 indoor full color LED Display 480 mm x 480mm cabinet view
P3 indoor full color Die cast cabinet screen feature and adantage
1 Obtain high contrast and high gray scale, It can realize the HD and exquisite image
2 Super thin and light weight (thickness :75mm weight :7kg), easy to install and transport
3Aluminum die-casting cabinet, automatic heat dissipation, and low power consumption
4 Seamless connection with high flatness and soft image
5 Support point correction function, ensure the color and brightness consistency
6 High RGB gray scan processing, colorful, vivid and clear viewing effect
7 High stability and reliability with integrated circuit
8 Accurate and fast installation with buckled cabinet design, which can be used in different application
9 One case with multi-purpose, product upgrading only need to change the module, low upgrade cost.
10 Buckle cabinet design makes it fast installation and dismantle, both for fixed installation and rental using
11 Professional and standard air plug with high quality guarantee
Application :Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video
