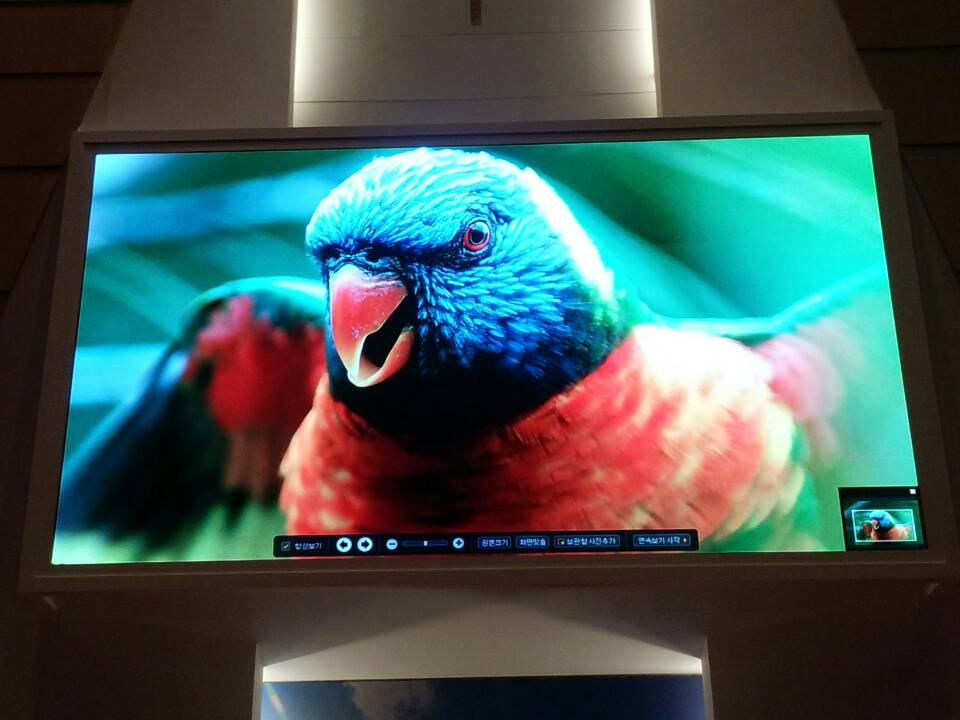

P3 Indoor LED Display for Advertisement
| Price: |
US $ 900-950/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
3/Square Meter |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
P3 SMD2121 led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
128mm*128mm |
| Module Resolution: |
32*32 |
| Cabinet Size: |
512*512mm |
| Cabinet Resolution: |
128*128 |
| Refresh Rate: |
≥1000Hz |
| Brightness: |
More Than 1500CD |
| Warranty: |
2 Years |
| Cabinet Weight: |
15kg |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Certification: |
CCC |
| Pixel Density: |
62500dots/Sqm |
| System Operating Platform: |
Windows98/Me/2000/Nt/XP/Win7 |
Product Description
Product Features
High definition and could be adjusted, so it can meet the request of the customers according the application environments. |
Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light. |
To picture, video and character, have clear, exquisite and real display effects. |
Big viewing angle to 120 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no brightness varies, no picture twists, no color excursion. |
Can repair each led lamp, so the cost of maintenance is lower, and easy to repair. |
LED Parameters
Item |
Luminous Intensity |
Viewing Angle(H/V) |
Wavelength |
Test Condition |
|
Red LED |
150-200mcd |
120º/120º |
620-630nm |
25ºC,20mA |
Green LED |
260-330mcd |
120º/120º |
520-535nm |
25ºC,20mA |
Blue LED |
55-65mcd |
120º/120º |
465-475nm |
25ºC,20mA |
Module Parameters
Pixel Pitch |
3mm |
|
Pixel Configuration |
1R1G1B SMD2020 3in1 |
Module Resolution |
32dots*64dots for real |
Module Pixels |
2048 dots |
Module Size |
192mm*96mm |
Module Weight |
0.5KG |
Cabinet Parameters
Cabinet Size(W*H*D) |
768*768*160(mm) or Customized |
|
Cabinet Resolution |
256dot*256dot for real |
Module Quantity |
32 pcs |
Cabinet Pixels |
65536 dots |
Pixel Density |
111111 dot/sqm |
Avg. Power Consumption |
250W/sqm |
Max. Power Consumption |
750W/sqm |
Material |
Iron or Aluminum |
Cabinet Weight |
28KG for iron cabinet;
20KG for aluminum cabinet |
Screen Parameters
Brightness |
≥1800cd/sqm |
Contrasts (Max. /Min.) |
1.1:1 |
Driving Method |
1/16 scan constant current |
View Angle |
Horizontal 120° Vertical 120° |
Optimal Viewing Distance |
3m to 50m |
Brightness Control |
Red, Green and Blue 256 Grade/Each |
Fresh Frequency |
≥600Hz |
Frame Frequency |
50 - 60Hz |
Input Voltage |
AC220V/50Hz or AC110V/60Hz |
Defects Rate |
≤0.00001 |
Screen Weight |
≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
MTBF |
>10,000 hours |
Life Span |
≥100,000 hours |
Brightness Uniformity |
<3% |
Earth Leakage Current |
<3mA |
Protective Grade |
IP45 |
Temperature-operating |
-40°C to 60°C |
Humidity-operating |
10% to 90% |
Operating System |
Windows98/me/2000/NT/XP/win7 |
