| Prod Model: |
P2.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module No.: |
P2.5 |
| Cabinet Size: |
480mm*480mm |
| Module Size: |
160mm(Width)*80 mm(Height) |
| Module Pixels: |
64 Dots *32 Dots |
| LED Lamp Type: |
SMD2121 |
| Color Scale: |
65,536 Degree |
| View Angle(H/V): |
140/120 Degree |
| Brightness (White Balance): |
>1300CD/Sqm. |
| Life Time: |
>100,000hours |
| Mtbf: |
5,000 Hours |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
CCC |
| Pixel Pitch: |
2.5mm |
| Pixel Density: |
160000 Dots /M2 |
| Scanning Mode: |
1/32 |
| System Operating Platform: |
Windows 2000 / Windows XP / Windows 7 / Windows 8 |
| IP Rating: |
IP31 |
Product Description

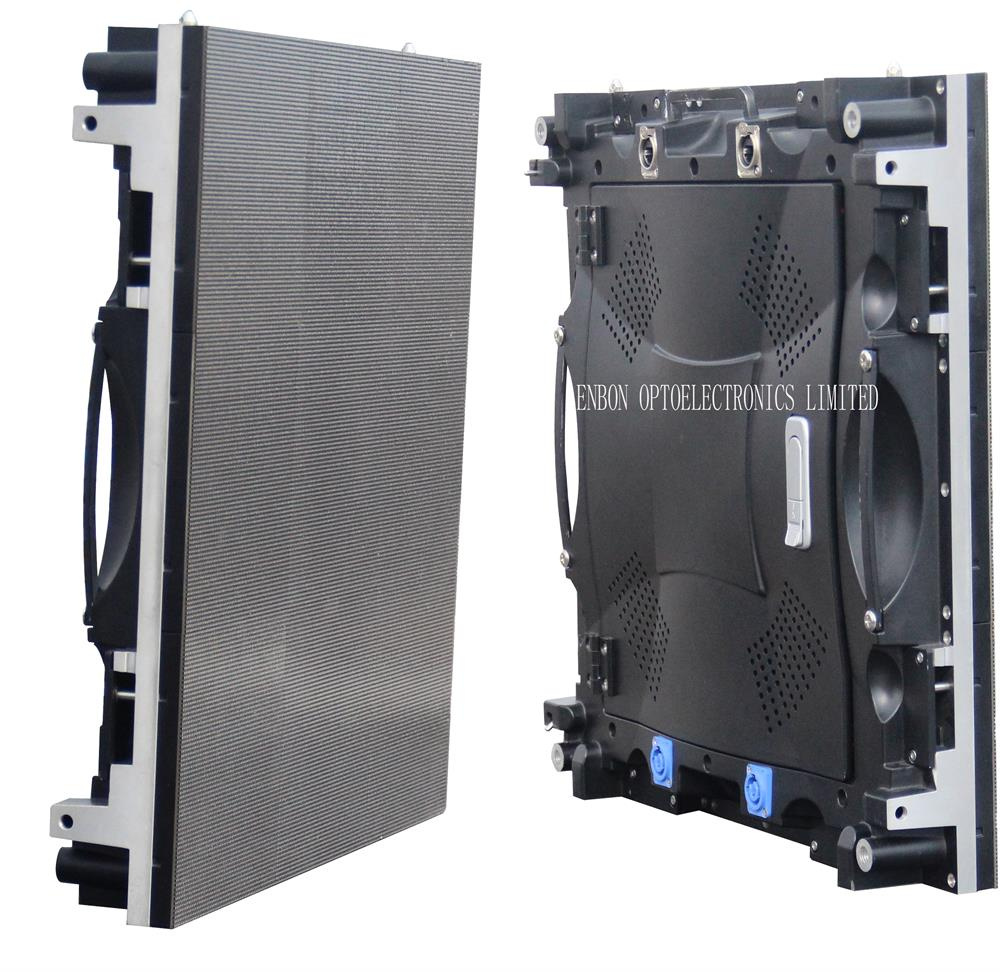

P2.5 HD Full Color LED Video Display
1. High refresh rate by choose Linsn or Novastar control system.
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness;
3. We adopt rapid assembling sets which is beautiful and user-friendly
4. Good thermal design, excellent heat dissipation even no fan installation,very quiet.
| Model | P2.5 LED display for rental indoor |
| Pixel pitch | 2.5mm |
| Pixel density | 160000 dots /sqm |
| Module size(W*H) | 160mm(width) * 160 mm(height) |
| Module pixels(W*H) | 64 dots * 64 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1 / 32 scan |
| LED lamp type | SMD2020 |
| Cabinet size(W*H*D) | 480mm*480mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 1300cd/sqm. |
| Power consumption(one cabinet) | Max:600W / cabinet , Average: 120W / cabinet |
| Operating Voltage | AC110V±10% or 220V ±10%; 50---60HZ |
| Net weight | 6Kg / cabinet |
| Operating temperature | -30°C----+70°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP30 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
