| Prod Model: |
P16 outdoor front service led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size : 1792 Mm X 1024 Mm: |
P16 DIP346 |
| Module Size :256 Mm X 128mm: |
Brightness More Than 6500 CD |
| Temperature:-20 ~ 50c Humidity:10~90%Rh: |
CCC\CE\Rosh |
| Front Access Design: |
Double Face Front Cabinet |
| Light Alumium Cabinet: |
Voltage 110/220V |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Application: |
Stage Performance |
| Scanning Mode: |
Static Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
180W / m² |
Product Description
P16 outdoor Front service LED Display

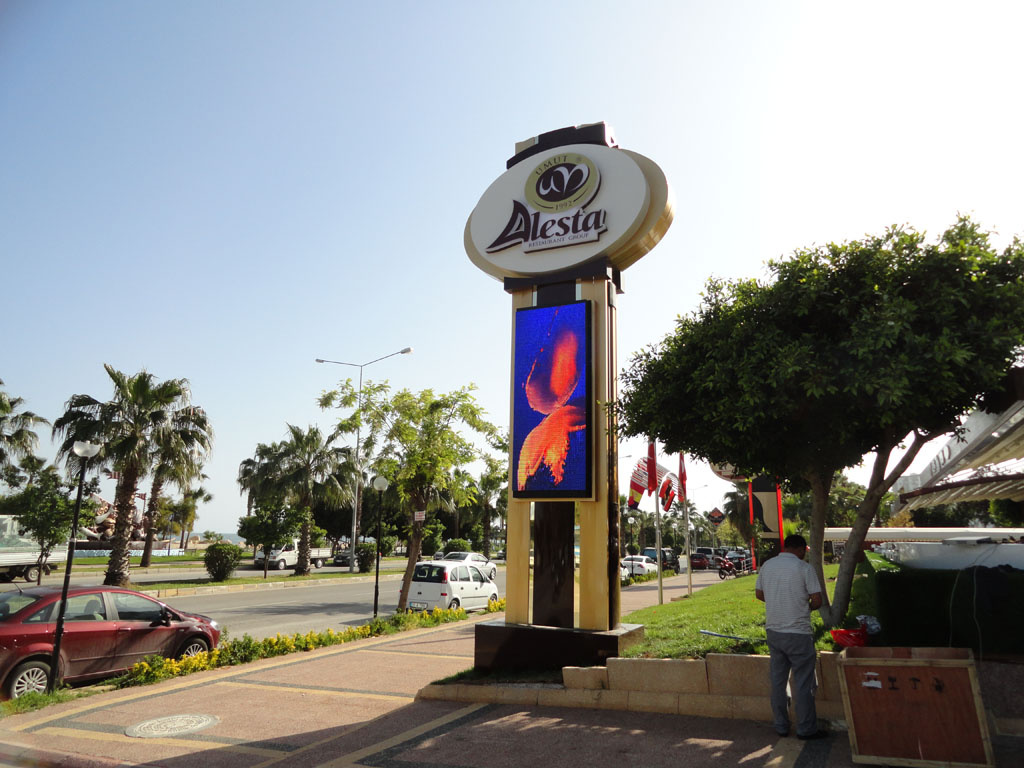

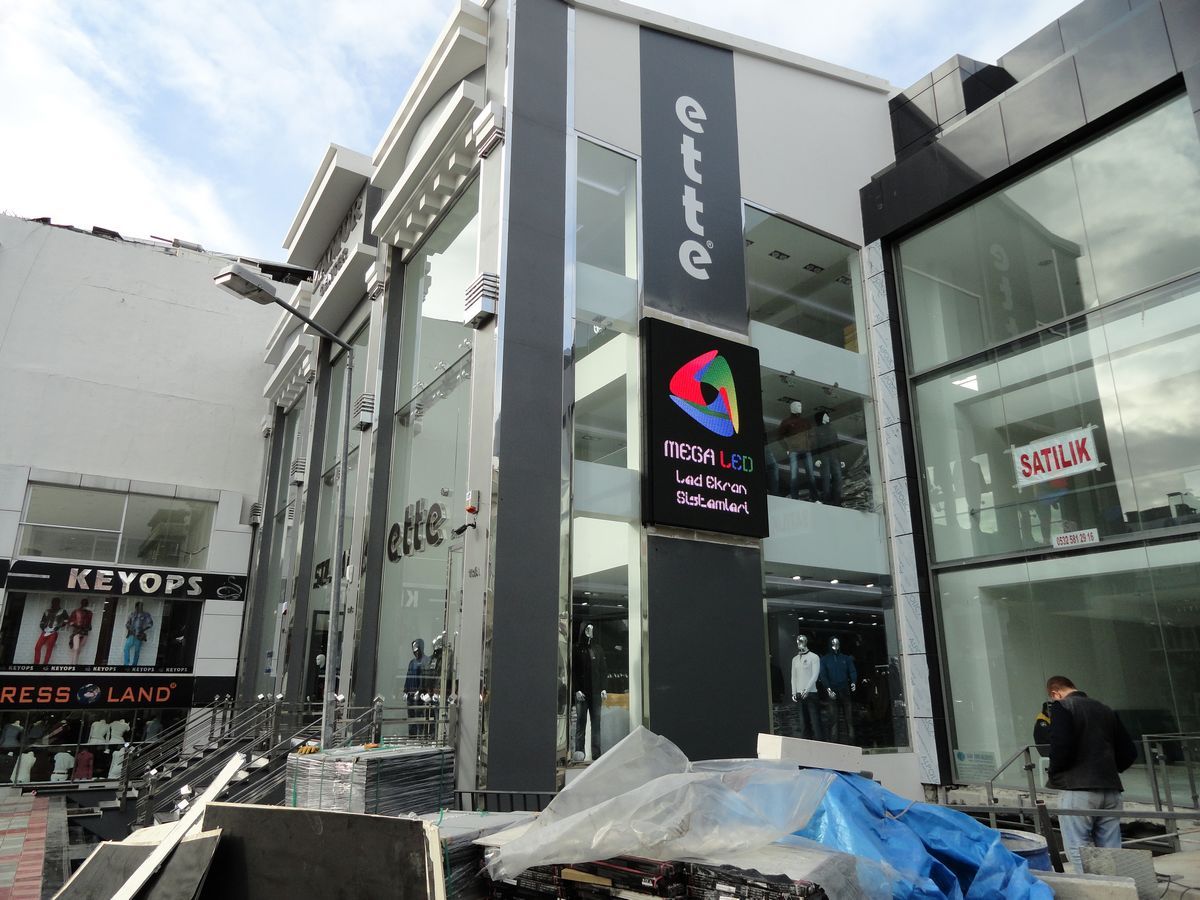

P16 Front service LED Display Application :outdoor advertising, shopping mall, square, park, stadium and so on.
Detail Specification | Item | Front Service Outdoor LED display |
| Pixel Pitch(mm) | 10mm | 12mm | 16mm | 16mm |
| Pixel density(/m2) | 10000 | 6944 | 3906 | 3906 |
| LED Type | DIP346 |
| Viewing angle: | H:120°,V:60° |
| Brightness(nits) | ≥6500 | ≥5000 | ≥7000 | ≥5500 |
| Drive Method | 1/4 | Static |
| Color Depth(nits) | 16384 |
| Refresh Rate(Hz) | 2200 | 2800 |
| Module Size(mm) | 160×160x28.5 | 192×192x28.5 | 256×256x28.5 | 320×320x28.5 |
| Cabinet Size(mm) | 1280×960x178.5 | 1024×1024x178.5 | 1280×960x178.5 |
| Cabinet Material | Steel/ Alumium |
| Cabinet weight(kg) | 50 | 55 | 68 |
| Voltage | 110/220V |
| Average.power(W / m2) | 250 | 170 | 250 | 220 |
| Max.power(W / m2) | 750 | 500 | 750 | 650 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE,Rosh |

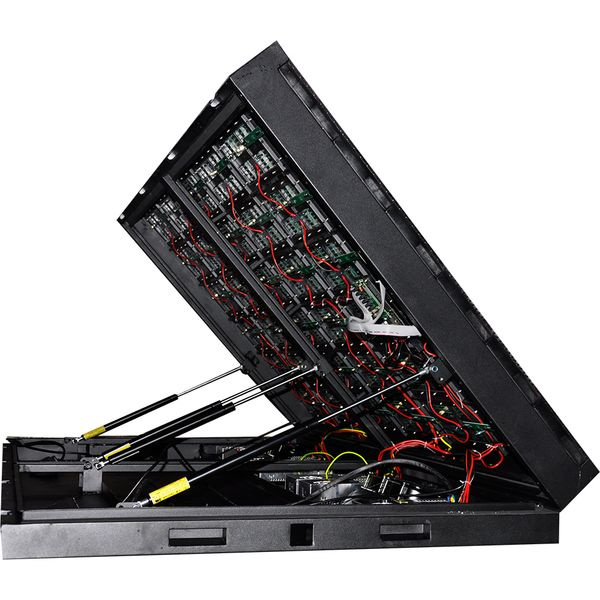

Feature : 1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time
2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall
3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious
4 It can also make double sides front service LED signs
