| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
1024 * 1024 mm or Customized |
| LED Control System: |
Nova-Star or Linsn |
| Inputting Voltage: |
90 - 264 VAC |
| Refresh Rate: |
> 3,000 Hz / S |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Density: |
3,096 Dots / Sqm |
Product Description

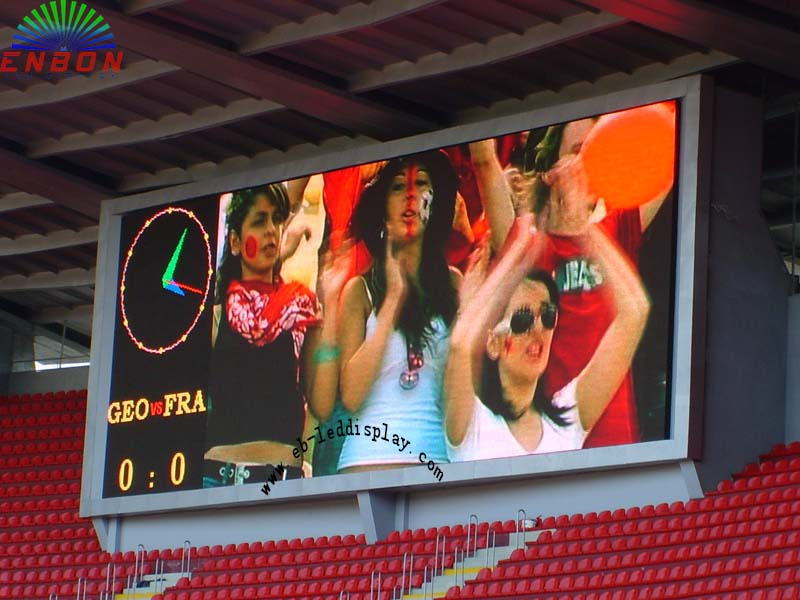

P16 outdoor Stadium LED display has these features bellow.
1. Applications:
Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2. High brightness:
We display support automatically or manually adjust the brightness of the LED display screen.
3. Good LED chip:
High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.
4. Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5. Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
| Technical Parameters |
| Model | P16 outdoor LED stadium display |
| Pixel pitch | 16mm |
| Pixel density | 3,906 Pixels/sqm |
| Module size(W*H) | 256 W(mm) | 256 H(mm) |
| Module pixels(W*H) | 16 Pixels(W) | 16 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving static scan |
| LED lamp type | Epistar DIP346 |
| Cabinet size(W*H*D) | 1024 W(mm) | 1024 H(mm) |
| Cabinet resolution | 64 Pixels(W) | 64 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 120/70 degree |
| Brightness (White balance) | ≥7500cd/sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:350W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 47---63HZ |
| Net weight | 60 Kg / M 2 for Iron cabinet |
| Operating temperature | -30 °C----+ 70 °C |
| Operating humidity | 10% - 95% RH |
| Life time | ≥ 100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤ 0.3mm Juncture |
| Frame frequency | > 60 Hz/s |
| Refresh rate | ≥ 3,000 Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V / 220V ± 15% 47 -- 63 Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7, win8 , win8.1 , win10 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
