P16 Outdoor Advertising Full Color LED Display
| Price: |
US $ 22.3-23.1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DOT Pitch: |
16mm |
| Module Dimension: |
256*256mm |
| Module Resolution: |
16*16 |
| DOT Density: |
3906 |
| Brightness: |
7500CD/Sqm |
| LED Specification: |
1r1g1b |
| Pixel Configuration: |
DIP346 |
| Driving IC: |
Jxi5020 |
| Scan Mode: |
Static |
| LED Lamp Brand: |
Epistar |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
FCC,ISO9001 |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
3906dots/Sqm |
Product Description
P16 Full Color Outdoor LED Display (256*256mm LED Display)
A. High brightness with low power comsumption.
B. Stabel lifespan.
C. Flatness gap between cabinets.
D. Standarlization frame in case update.
E. Easy installation charactristic.
Brilliantopto Group is specialized in LED display, LED display screen, outdoor led display, advertising led display and LED billboard. we offer good products and customized solution that meet the need of our customers.
The LED application products research and develop by Brilliantopto Group has full range and structure diversification, its products cover LED full color display for indoor and outdoor, LED advertisement display, LED stage display, LED irregular-shape display, LED display for taxi, LED sports display, LED traffic information display, which has been dominated in demestic and international market in this industry.

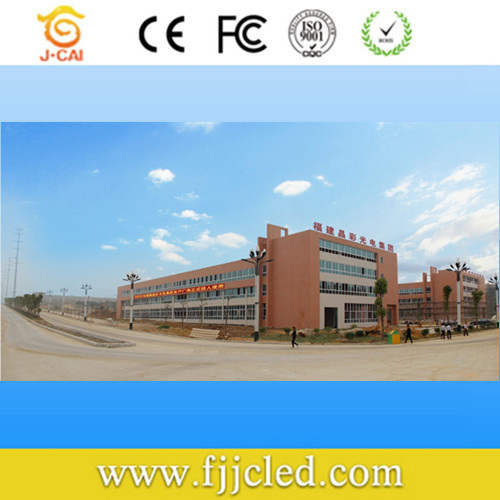

Our branch factory
Our P10 Outdoor led display Features
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 120 degree / elevation angle 90 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
Our led project case
Product Certification
|
Pixel Pitch |
16mm |
|
Module Size(W×H) |
256mm*256mm |
|
Module Resolution(W×H) |
16*16dots |
|
Pixel Density |
3,906 (dots/ m2) |
|
Lamp Origin |
Epistar |
|
Pixel Configuration |
1R1G1B |
|
Led Specification |
DIP346 |
|
Gray Level/ Color |
65,536 lever /16.7M |
|
Brightness |
≥7,500cd/m2 |
|
Best view angle |
Horizon: 120° Vertical : 90° |
|
Control method |
Synchronous |
|
Scanning method |
Static |
|
Power consumption |
Average: 350w/m2 Max : 800w/m2 |
|
Best viewing distance |
8~100m |
|
Lifespan |
≥100,000 H |
|
MTBF |
≥10,000H |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥320HZ |
|
System Working Temperature |
–20°C ~ 50°C |
|
System Working Humidity |
10 ~ 90%RH |
|
Power |
5V/40A |
|
Module weight |
1013g/pcs |
|
Brightness control lever |
0 ~ 100 lever |
|
Maintenance way |
Rear access |
|
Environment temperature |
-40°C ~ +85°C |
|
Suitable voltage |
DC5V |
|
Spending card |
kilomega network card |
|
Video signal |
PAL/NTSC |
|
Working voltage |
220V±10% |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
