| Prod Model: |
P16F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life Span:100,000h: |
Full White Brightness:More Than 7000CD/Sqm |
| Control Mode:Synchronous Control: |
Module Size:256mm*128mm |
| Best View Distance:8~150m: |
View Angle:V110 Degree,H90 Degree |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
FCC |
| Average Power Consumption: |
850W/Sqm |
| Pixel Density: |
3906 |
| Scanning Mode: |
4s |

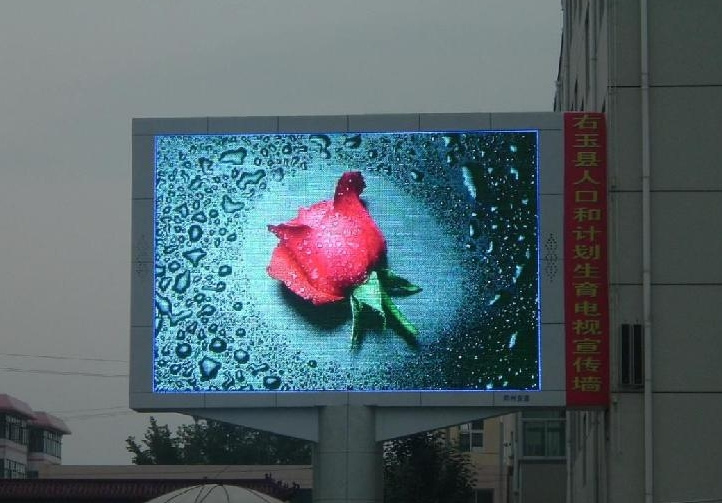

Product Description
Brilliantopto co.,limited (Jingcai(fujian) photoelectronic co.,ltd )
professional development manufacturing LED display system products and lighting products, was founded in 2005, with the registered capital 20.18 million, own workshop area 20000 m2, branch office and agents cover all over China, with about 400 employees.
Why choosed us :
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
Products list
1. P3\P4\P5\P6...indoor full color led display;
2.P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Pixel pitch
|
16mm
|
Module size
|
256*128mm,256*256mm
|
Module density
| 3906dots/sqm
|
Module resolution
|
25.6*12.8,25.6*25.6
|
Pixel configuration
|
1R1G1B
|
Red wavelength
|
OPTO taiwan 625±2nm
|
Green wavelength
|
Silan taiwan 525±2nm
|
Blue wavelength
|
Silan taiwan 470±2nm
|
Best viewing distance
|
From 10 to 150
|
Horizontal viewing angle
|
110°
|
Vertical viewing angle
|
90°
|
Maximum power consumption
|
Below 800W
|
Brightness
|
7500cd/sqm
|
Gray scale
|
More than 4096
|
Control method
|
Synchronization
|
Driving method
|
4Sconstant current
|
Frame frequency
|
60Hz
|
Refresh frequency
|
More than 300 Hz
|
Working voltage
|
AC220V±5%
|
IP grade
|
IP65
|
Working temperature
|
-20°C±50°C
|
MTBF
|
More than 5,000 hours
|
Life span
|
More than 100,000hours
|
Cabinet style
|
Waterproof cabinet
|
Cabinet size
|
W640*H640*D120mm
|
Cabinet weight
|
Less than 28kgs
|
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
