| Prod Model: |
LS-O-P12-SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
6, 000nits |
| Viewing Angle: |
140/140 |
| Panel Size: |
768X576 |
| Resolution Per Panel: |
64X48 |
| Panel Material: |
Epoxy Paint Coated Cold Rolled Steel |
| Recommended Best Viewing Distance: |
16~42 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
12mm |
| Display Function: |
Video Display |
| Pixel Density: |
6944 dot / m² |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Configuration: |
3in1 SMD |
| Average Power Consumption: |
283W/M&Sup2 |
Product Description

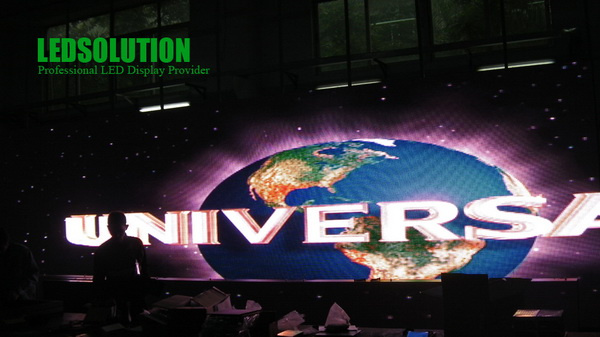

P12 SMD 3in1 Outdoor Stage LED Display/screen, SMD LED ekran, na zewnatrz SMD LED.
The Outdoor LED Display use state-of-art outdoor application LEDs, the display brightness can be comparable with DIP oval LED Display but with much wider viewing anglel reach to 140 degree both horizontal and vertical. The LEDs has the advantage of UV against.
Features of the outdoor SMD LED Display:
*Wide viewing angle: Horizontal 140degree, Vertical 140degree
*Weatherproof to IP65 standards
*UV against
*Easily configured for various size and aspect ratios
*Brightness from 6000 nits onwards
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 12 |
| Brightness | nits | 6, 000 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 24 |
| Panel width | mm | 768 |
| Panel height | mm | 576 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 0.442 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 64 x 48 |
| Dot per panel |
| 3, 072 |
| Dot per sq. meter |
| 6, 944 |
| LED per sq. meter |
| 6, 944 |
| Recommended minimum viewing distance | m | 12 |
| Recommended best viewing distance | m | 16~42 |
| Colors |
| 1, 073.7 million |
| Grey scale (linear) | Levels | 1, 024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts /sq. m. | 706 |
| Input power (typical) | Watts /sq. m. | 283 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with 4pcs M10 bolts |
