| Prod Model: |
LS-OC-P12.5-0.5mx0.5m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
5, 000nits |
| Viewing Angle: |
120/120 |
| Panel Size: |
500X500mm |
| Resolution Per Panel: |
40X40 |
| Panel Material: |
Epoxy Paint Coated Aluminum Strip |
| Mounting System: |
Hanging/Fix Installation |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Certification: |
CE |
| Pixel Pitch: |
12.5mm |
| Pixel Configuration: |
3in1 SMD |
| Pixel Density: |
6400DOT/M2 |
Product Description

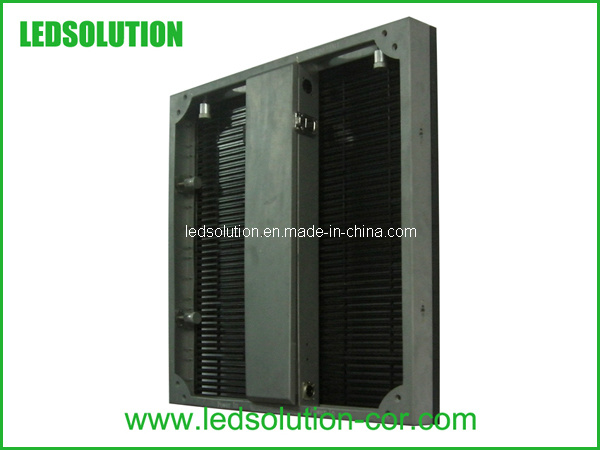

LED Curtain Display Screen, LED Curtains, curtain LED display, LED stage background, stage LED display, LED screen, LED signs:
P18.75 Curtain Outdoor SMD Display, Cortina de tela LED, Kurtyna LED ekran
Features of the Curtain LED Display:
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Main Application: Stage and outdoor fixed installation
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 12.5 |
| Brightness | nits | 5,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 120(-60~ +60) |
| Viewing angle – Vertical (50% brightness) | deg. | 120(-60~ +60) |
| Panel weight | kg | 8 |
| Panel width | mm | 500 |
| Panel height | mm | 500 |
| Panel depth | mm | 65 |
| Panel area | sq. m. | 0.5 |
| Panel material |
| Epoxy paint coated Aluminum Strip |
| Transparent Rate |
| 25% |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| International Protection | IP | IP65/43 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 40x40 |
| Dot per panel |
| 1,600 |
| Dot per sq. meter |
| 6,400 |
| LED per sq. meter |
| 6,400 |
| Recommended minimum viewing distance | m | 9.5 |
| Drive Mode |
| Constant current drive Static |
| Colors |
| 281 Trillion |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1,000:1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/ panel | 400 |
| Input power (typical) | Watts/ panel | 160 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
| Mounting System |
| Hanging/Fix Installation |
