| Prod Model: |
GS10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Lamp: |
SMD3528 |
| Module Size(Mm): |
320 X 320 |
| Thickness: |
10mm |
| Brightness (CD/Sqm): |
4200 |
| Screen Weight: |
13--15kg/Sqm |
| Controller: |
Linsn |
| Processing Depth: |
16bit |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
ETL |
| Pixel Density: |
10,000 dots / m² |
| Application: |
Advertising |
| Pixel Configuration: |
Full Color SMD |
| Pixel Pitch: |
10 |
| IP Rating: |
IP20 |

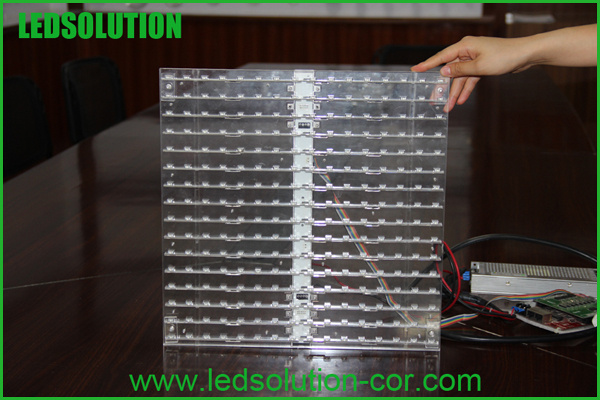

Product Description
Features:
· High Degree of Visibility
80% transparent see-through, so it is convenient for people inside and outside to look-through. The integrated LED lamps are very tiny and almost invisible from outside of the building. It makes no difference on the appearance of the building.
· Compact design and light weight
8mm thickness of the LED panel has it almost suitable for any glass wall building. The weight is only 12Kg/sqm and minimizes the load to the glass wall.
· Ease of Installation and Maintenance
No need to change any building structure. The modules can be stuck to the back of the glass wall by the special glue which presented by us. It needs only 10 second to install one module. Should any maintenance occurs, it only requires to do it at the indoor.
· Saving money in decoration for the architecture
Since the LED glass wall makes the vivid decoration and advertising, it saves other lights to lighting up the building.
· Wide application
The Glass Wall LED Screen can be applied wherever the glass wall existed such as commercial building, landmark architecture, art center, shopping mall, super market, chain stores, etc.
MODEL NAME | GS10 | GS16 | GS20 | GS25 | GS31.25 |
Pixel pitch | 10mm | 16mm | 20mm | 25mm | 31.25mm |
LED lamp | SMD3528 | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
Module size(mm) | 320 x 320 | 512 x 256 | 320 x 320
640 x 320 | 400 x 200 | 500 x 250 |
Module resolution | 32 x 32 | 32 x 16 | 16 x 16/32 x 16 | 16 x 8 | 16 x 8 |
Brightness (CD/sqm) | 4200 | 3500 | 3000 | 2500 | 1800 |
See-through area | ≥75% | ≥70% | ≥75% | ≥85% | ≥90% |
Maximum power consumption (W/sqm) | 1200 | 950 | 680 | 480 | 350 |
Average power consumption(W/sqm) | 420 | 330 | 240 | 170 | 130 |
Viewing angle (50% brightness) |
Horizontal:140°(+70°/-70°);Vertical:140°(+70°/-70°) |
Processing depth |
16bit |
Video frame rate |
60 frame/Sec. |
Display refresh rate |
2000 Hz (MBI5024,) |
Thickness |
10mm |
Ingress protection |
IP20 |
Controller |
LINSN |
Video input |
VGA mapped / NTSC / PAL,JPG,BMP,AVI,WMV,RM etc. |
Video display function |
Synchronous display kinds of text, graphics, pictures, signs, flashes, and any signal from TV, VCD, DVD, Camera, and scanner and so on, support PAL, NTSC. |
Operating Temperature range |
_10 degree~ +45 degree |
Operating Humidity range |
10%_95%RH |
Screen Weight |
13--15kg/sqm |
