| Prod Model: |
LS-O-P10-SMD-AL-0.8x0.8m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
6, 000nits |
| Color Temperature: |
6,000deg.K |
| Viewing Angle: |
140/140 |
| Panel Size: |
800X800mm |
| Panel Material: |
Epoxy Paint Coated Aluminum |
| Panel Mode: |
Quick Assembly Cabinet with Bracket |
| Special Design: |
Soft Plastic Mask |
| Resolution Per Panel: |
80X80 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Configuration: |
3in1 SMD |
Product Description
Specification
*CE, RoHS, ISO, UL, ETL certificates;
* 3-years warranty;
* High brightness;
* Easy maintenance ;
*Excellent after-sales services.
General

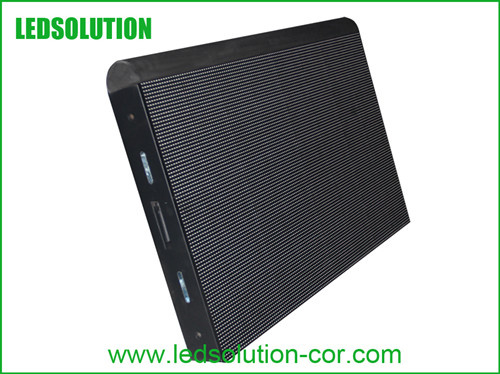

LEDSolution's Perimeter LED displa is an effective and attractive display used in the stadium.It's favorable for sports live broadcast and commercial advertising.The display can be installed around the whole stadium.Advanced stadium software is used to manage the content of the display instantly.It can automatically calibrate the colors and adjust the color temperature, very user friendly.
Feature
*IP65 weatherproof standard,against harsh environment such as water, dust , and grass clippings;
*Convenient installation and software setup.No need to number the cabinets;
*Easy power and data connections, daisy chain used from one cabinet to the next for quick connection;
*Long viewing distance and wide viewing angle;
*Excellent flatness between cabinets, with claw lock system to link the cabinets;
*Impact resistance. Soft rubber mask facia to protect the screen from the players' impact and protect the players themselves;
*Stable performance and long lifetime.
Certificate
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 48 |
| Panel width | mm | 800 |
| Panel height | mm | 800 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 0.64 |
| Panel material |
| Epoxy paint coated Aluminum |
| Panel Mode |
| Quick Assembly Cabinet with Bracket |
| Special Design |
| Soft Plastic Mask |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 80x80 |
