P10 Indoor LED Display
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
P10 1m full color led ball display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P10 |
| Pixel Composition: |
1r1g1b |
| LED Encapsulation: |
SMD3528 |
| Brightness: |
1500nit |
| Average Power Consumption: |
230W/M2 |
| Max Power Consumption: |
470W/M2 |
| Application Environment: |
Indoor |
| Diameter: |
1m |
| Whole Screen Area: |
3.14m2 |
| AC Input Voltage: |
110-240V ±10% |
| Tube Chip Color: |
Full Color |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/4 Scan |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Certification: |
FCC |
| Display Function: |
Animation, Text, Video, Pictures |
| System Operating Platform: |
Win7, XP |
Product Description
1)Description

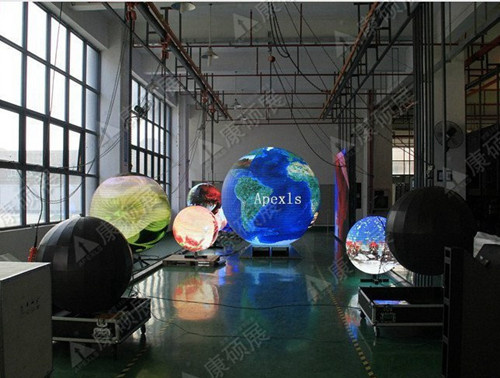

Sphere LED display (we can also call them sphere LED screen or LED panel, LED global, LED ball) is a creative LED display with a ball shape. It is our patent product developed in 2011. Through two years of improvement and R&D, the technology is mature and promising now.
2)Application
Up to now, we have accepted orders from casino, shopping mall, bar, disco, exhibition hall, besides it is also be widely used in Museum, Planetarium, Sports Stadium, Airport, Hotel, Railway Station, Children's Palace, Gymnasium, Lounge or Waiting Hall, Large Open Space, etc.
3) Main feature
Unique Appearance & 360° View angle
Easy installation & Easy operation
4) Model
Customized Design
This patent product can be customized according to different requirement.
You can choose P4, P5, P6, P7.62, P8 and P10.
The smallest diameter of it is 1m, above that; You can choose any diameter as you like.
| Type | P4 | P5 | P6 | P7.62 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 6mm | 7.62mm | 8mm | 10mm |
| LED | SMD
2121 | SMD
3528 | SMD
3528 | SMD
3528 | SMD
3528 | SMD
3528 |
| Pixel Density | 62500 | 40000 | 27777 | 17222 | 15625 | 1000 |
| Pixel Configuration | IRIGIB | IRIGIB | IRIGIB | IRIGIB | IRIGIB | IRIGIB |
| Scan Mode | 1/10 | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 |
| Brightness(nits) | 2000 | 1800 | 1600 | 1400 | 1100 | 1000 |
| View Angle | 360° | 360° | 360° | 360° | 360° | 360° |
| Max. Power Consumption | 833W/M² | 605W/M² | 810 W/M² | 510W/M² | 885 W/M² | 780W/M² |
| Nor. Power Consumption | 375W/M² | 273W/M² | 365 W/M² | 230W/M² | 355 W/M² | 330W/M² |
| Weight | 28kg/ M² | 28kg/ M² | 28kg/ M² | 28kg/ M² | 28kg/ M² | 28kg/ M² |
| Uniformity | Uniform brightness, uniformity 1:1.3 |
| Working temperature | -40°C~70°c |
| Humidity | 25%~95% |
| Linkage current | < 3mA |
| Control way | Synchronous with computer(display) |
| Refresh frequency | 1200Hz |
| Grey grade | 4096 grade |
| Life span | 100000 hours |
| Continuous failure-free working time | ≥10000hours |
| Communication media, control distance | Multimode optical fiber<500m,single mode fiber < 30km,cat 5 cable < 60m |
| IP Grade | IP43 |
| Software | LEDVISION |
| Input way | Computer and ancillary, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI etc. |
| Display content | Video, DVD, VCD, TV, Image, Text, Animation and others |
| Protection | Damp proof, dust proof, anti-corrosion, static free, anti-thunder, with over current, short circuit, over voltage and short voltage function |
