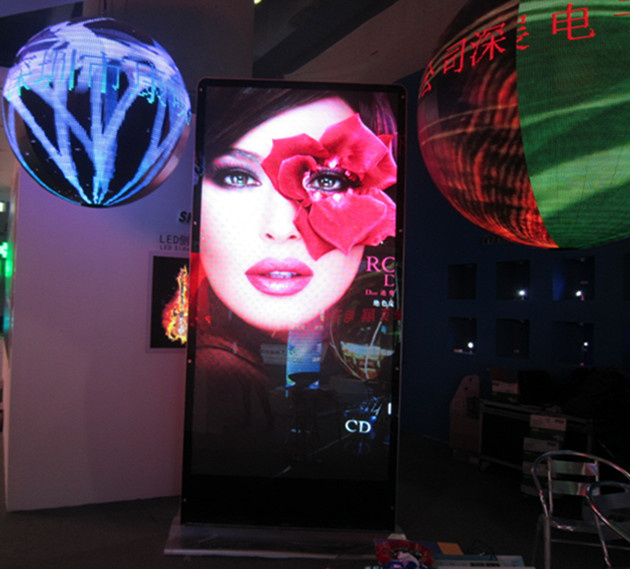

CNC Aluminum Cabinet LED Display Indoor LED Display
| Price: |
US $ 1000/Meter |
| Trade Terms: |
FOB |
| Min Order: |
5/Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
P2.5-P10 led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P2.5-10 |
| Pixel Composition: |
1r1g1b |
| LED Encapsulation: |
SMD3528 |
| Brightness: |
1800CD/M2 |
| Application Environment: |
Indoor |
| AC Input Voltage: |
110-240V ±10% |
| Working Temperature: |
-35degree~+60degree |
| Working Humidity: |
10~60% |
| Lifespan: |
>100000 Hours |
| Module Resolution: |
16*16dots |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/8 Scan |
| Certification: |
FCC |
| Pixel Pitch: |
2.5mm-10mm |
| Display Function: |
Animation, Text, Video, Pictures |
Product Description
Main features:
1. Protection: Good waterproof effect and IP65 protection grade, it is suitable for outdoor using environment.
2. Advertising effect: High definition, high brightness, high refresh rate and high gray level, which makes the images showed on it vivid and lively. It can achieve audio and video synchronization, meeting the requirements of high visual quality of commercial use.
3. High Brightness: Advertising LED screen or LED panel with high brightness and color correction functions, making it show more abundant and attractive pictures.
4. Far transmission distance: It adopts efficient optical fiber transmission system, which can effectively reduce the signal delay phenomenon because of far transmission distance and ensure the screen showing consistency.
5. Double line hot backup; Our advertising LED displays possess the function of double line hot backup. Two computers control a screen at the same time. When a computer fails, the other computer can automatically replace it to ensure normal work of the display.
6. Network control function: Advertising LED screen has network control function, so that customers in one place can control several displays in different cities and change the content you want to play.
7. Remote control: Remote network control can be used for all types of display information. Customers only need to click the mouse to easily replace the picture information, so as to realize the advertising display network clustering of cities and regions.
8. Environmental monitoring: Apexls advertising LED displays are designed with environmental monitoring system. Clients can know displays' running situation anytime and anywhere.
9. Multi-function card: Advertising LED screens or LED panels can be used with multi-function card configured by us, thus, they can realize software timing or manually switching at any time.
10. Provide whole solution: We not only provide installation support, but also supply a full range of LED display system, including control system, power supply (socket), software, accessories, installation drawings and others.
11. Customized: The size of advertising LED displays can be customized so that they can meet different pixel requirements.
Model: P3, P4, P5, P6, P7.62, P8, P10, P12
| Model | P3 | P4 | P5 | P6 | P7.62 | P8 | P10 | P12 |
| Pixel Pitch | 3mm | 4 mm | 5 mm | 6 mm | 7.62 mm | 8mm | 10 mm | 12 mm |
| LED Encapsulation | 2121 | 2121 | 3528 | 3528 | 3528 | 3528 | 3528 | 3528 |
| Pixel Density (Dots/M² ) | 111111 | 62500 | 40000 | 27777 | 17222 | 15625 | 10000 | 6944 |
| Optimum Viewing Distance | ≥ 4m | ≥ 4m | ≥ 5m | ≥ 6m | ≥ 7.5m | ≥ 8m | ≥ 10m | ≥ 12m |
| Viewing Angel (V/H) | 120° /120° | 120° /120° | 120° /120° | 120° /120° | 160° /160° | 160° /160° | 160° /160° | 160° /160° |
| Brightness (Nits/M² ) | ≥ 2600 | ≥ 2500 | ≥ 2200 | ≥ 1800 | ≥ 1300 | ≥ 1200 | ≥ 950 | ≥ 800 |
Maximum Power
Consumption | 1210 W/M² | 845 W/M² | 540 W/M² | 680 W/M² | 425 W/M² | 395 W/M² | 295 W/M² | 205 W/M² |
Average Power
Consumption | 726 W/M² | 500 W/M² | 320 W/M² | 400 W/M² | 255 W/M² | 235 W/M² | 175 W/M² | 120 W/M² |
| Working Voltage | AC 220± 10% 50Hz or AC 110± 10% 60Hz |
| Operating Temperature | -40º C~50º C |
| Input Signal Format | RF, S-Video, RGB, RGBHV, YUV, YC & Composite, etc |
| Life Span | > 100, 000 Hours |
Established in 2004, with 23million RMB registered capital, Shenzhen Topled Opto-Electronic Technology Co., Ltd is one of the pioneer high-tech corporations specialized in indoor SMD full color LED display in China. With rapid development, Apexls become and integrated manufacture of LED products, covering development, production, marketing and service of LED display, LED lighting and Ultra-thin LED display power supply. Apexls industry park locates in Baoan district, which takes only needs 20 minutes by car to Shenzhen International Airport. The industry park includes a factory building of 36000 m2 and a living building of 12000 m2 with more than 300 employees. Now our LED products have been sold to more than 80 countries and areas, such as USA, Spain, Croatia, Bulgaria, Romania, Poland, Russia, Australia, Chile, Argentina, Brazil, Paraguay, Mexico, Singapore, Thailand, Malaysia, Indonesia, Vietnam, Saudi Arabia, Iran, South Korea, Hongkong, Taiwan and so on. We have more than 5 branch offices in China and subsidiary company in Malaysia.
We have advanced R&D base and modernized workshop which covers the whole automatic production process from DIP, SMT, glue filling, assembling to aging test. Both our major key management personnel and R&D engineers all have more than 10 years' experience in LED industry. We have established a company academy to concentrate on LED key technology and innovation. So far, we have developed three products series: LED display, LED lighting and ultra-thin LED power supply, which cover outdoor advertising display, stage background display, football field display, stadium display, traffic guidance display, truck display, message display, billboard display, LED street lamp, fluorescent lamp, LED tube, LED down light, LED flood light. We strictly enforce ISO9001: 2008 system. Our products passed various certificates such as ISO, CE, ROSH, FCC, UL, CCC etc.
As a powerful high-tech company, we have established long term partnership with world known giants such as Nicha. Toyoda Gosei, CREE, Optotech corporation and Acbel Polytechnic Inc., which fully represents the modern enterprise of efficient resources sharing, well-round participation cooperation, mutual benefit common development and high-efficiency operation.
Our mission: Robust employees diversified products; Fine worker virtue &good company reputation, achieve burning ambition by all.
Apexls will continue to break new ground on the basis of past achievements, to strive to world top-class channel supplier, to make its share of contribution to world LED cause.
