Prod Model: |
JC-P10-FCO-RGB-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
P10 |
DOT Pitch: |
10mm |
LED Chip Spec: |
DIP346 |
Full White Brightness: |
>5500 CD Per Square Meter |
Resolution: |
32* 16dots 10000 Dots/Sqm |
Certifications: |
CE, RoHS, FC, 3c, ISO9001 |
Function: |
Video, Animation, Graphics |
Original: |
Southern Fujian China |
Lifetime: |
Excellent with 10,000 Mtbf |
Exporting: |
Asia, America, Europe etc |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Certification: |
FCC, ISO9001:2008 |
Pixel Pitch: |
10mm |
Display Function: |
Video Display |
Scanning Mode: |
1/4 Scan |
Pixel Density: |
10000 dot / m² |
Average Power Consumption: |
375 |
Product Description

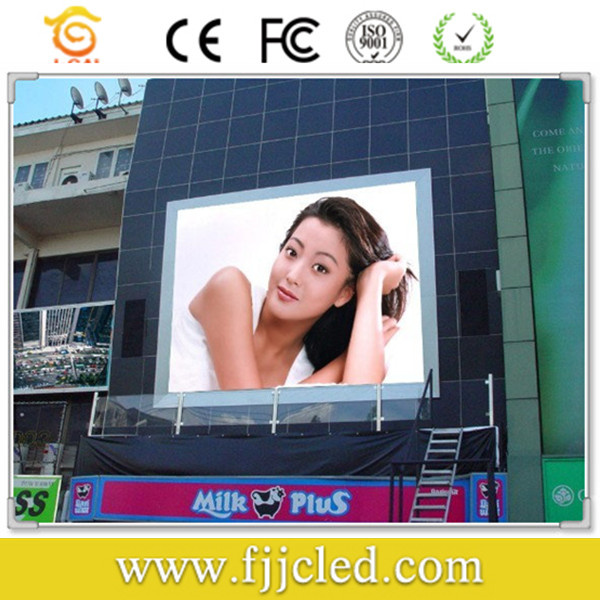

Brilliantopto - P10 Highly Waterproof Outdoor Display
Pixel Pitch: 10mm
Pixel Density: 10000 Dots/m2
Tube Chip Color: 1R1G1B
Led Chip Spec: DIP346
Module Size: (W)32dots× (H)16 dots
Int. Protection: IP65/IP54
Best View Distance: 10~150m
Viewing Angle(H): 120 Degree
Viewing Angle(V): 90 Degree
Working Temp: -20C~ +50C
Environment Temp: -40C ~ +85C
Operating Humidity: ≤ 90~95%
Module Weight: About 830g/pc
Operating Voltage: 220V± 5%
Average Power: 375W/m2
Maximum Power: 635W/m2
-------------------------------
Brilliantopto - About Us
Brilliantopto specializes in manufacturing led displays in Quanzhou Fujian,
Close to Xiamen port.
You can get the following products from us:
P3/ P4/ P5/ P6...Indoor full color led display
P10/ P12/ P12.5/ P16/ P20/ P25...Outdoor full color led display
Indoor/ outdoor/ semi-outdoor single/dual color led display etc.
-------------------------------
Brilliantopto - Guarantee
1) Our products are the CE certified, ROHS compliant, FCC identified.
2) Passing the system of ISO 9001 with IP65.
3) Free training is provided for our customers.
4) 1-year quality guarantee.
-----------------------------
Brilliantopto - Features
1). Good price
Our price is 10% lower than the market because of the introduction of full
Automatic production line with the characteristics of reducing the cost of
Labor and management.
2). Lightweight
Aluminum cabinet greatly saving fright cost and conveniently installing.
3). Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction
Dot rate less than 0.0001. MTBF more than 1000 hours.
4). Best quality LED chip tube
The GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5). Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6). Quality insured by CPIC and 1-year QA.
-------------------------------------------------
Brilliantopto - Payment and shipment
1) 30% deposit before production and balance paid before shipment.
2) Carton package, wooden case, flight case and customized package.
3) Shipment by express, by sea or by air within 10 working days.
P10 Highly Waterproof Outdoor Display |
Items | P10 |
Pixel Pitch | 10mm |
Module Size | 320mm*160mm |
Dot Density | 10000 dots/sqm |
Tube Chip Color | 1R1G1B |
Module Resolution | 32*16 |
|
|
Red Wavelength | 625±5nm |
Green Wavelength | 525±5nm |
Blue Wavelength | 470±5nm |
Viewing Angle (H) | 160° |
Viewing Angle (V) | 110° |
Display Brightness | >6800 cd/sqm |
Power Consumption | Max. below 750W |
|
|
Gray Scale | > 4096 |
Driving Mode | 1/4, constant current |
Control Mode | Synchronization |
Frame Frequency | 60Hz |
Refresh Frequency | > 300Hz |
|
|
IP Grade | IP65 |
Operate Environment | -20°C±50°C |
Working Voltage Range | 220V±10% |
Mean Time Between Failure | > 10,000 hours |
Led Display Working Lifespan | > 100,000 hours |
