| Prod Model: |
HX-CP1.5-O |
| Markets: |
North America,South America,Eastern Asia,Western Europe |
| Pixel Composing: |
COB Integration 3-in-1 1r1g1b |
| Pixel Size(Mm): |
1.5mm |
| Pixel Density(Dots/M2): |
444444 |
| Module Resolution(Pixel): |
160X160 |
| Module Size(Mm): |
240X240 |
| Module Weight: |
660g |
| Cabinet Resolution(Pixel): |
256 X256 |
| Cabinet Size(Mm): |
480 × 480 |
| Cabinet Weight: |
10.5 Kg |
| Display Weight: |
46 Kg/M2 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Certification: |
RoHS |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
TV Set |
| IP Rating: |
IP54 |
| Scanning Mode: |
20s |
| Pixel Pitch: |
1.5 |
| Pixel Density: |
444444 |
Product Description

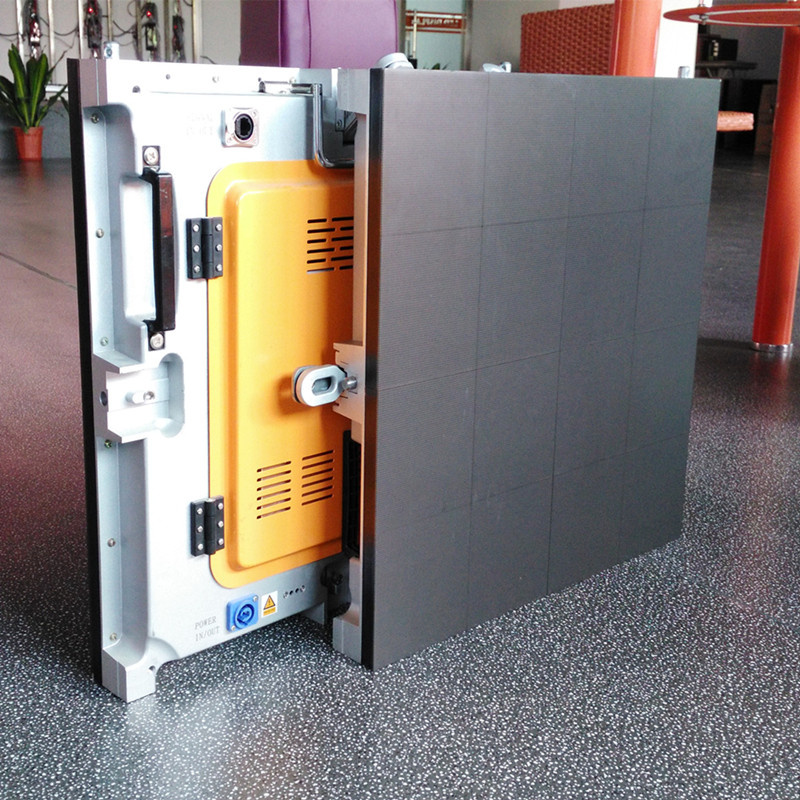

Adopted the lasted COM technology for the high resolution led display.High resolution brings delicate display effect, and it is a perfect embodiment of the new generation of ultra-high-definition LED display technology. Pixel pitch is 1.5mm.
Advanced original design
High grayscale even at low brightness, more delicate display
Multifunctional connecting piece, fast, simple and convenient
Seamless splicing and installation type to assemble screen freely
Pixel-by-pixel calibration to ensure consistency
| item | description |
| product type | NP1.25 | NP1.5 | NP3 | NP2.5 | NP1.875 |
| suitable occassion | indoor |
| pixel parameter |
|
| pixel composing | COB integration 3-in-1 1R1G1B |
| pixel size(mm) | 1.25mm | 1.5mm | 3 mm | 2.5 mm | 1.875 mm |
| pixel density(dots/m2) | 640000 | 444444 | 111111 | 160000 | 284444 |
| module parameter |
|
| module resolution(pixel) | 192 × 192 | 160 × 160 | 64 × 64 | 96 × 96 | 128 × 128 |
| module size(mm) | 240 × 240 | 240 × 240 | 192 × 192 | 240 × 240 | 240 × 240 |
| module weight | 660g | 660g | 565g | 660g | 660g |
| cabinet parameter |
|
| cabinet resolution(pixel) | 384 × 384 | 320 × 320 | 256 ×256 | 192 × 192 | 256 × 256 |
| cabinet size(mm) | 480 × 480 | 480 × 480 | 768 ×768 | 480 × 480 | 480 × 480 |
| cabinet weight | 10.5 kg | 10.5 kg | 25.5 kg | 10.5 kg | 10.5 kg |
| cabinet weight | 46 kg/m2 | 46 kg/m2 | 44 kg/m2 | 46 kg/m2 | 46 kg/m2 |
| cabinet material | die cast aluminium | die cast aluminium | die cast aluminium |
| maintenance | front maintenance/back maintenance |
| system parameter |
|
| drive method | constant 1/32 scan | constant 1/20 scan | constant 1/16scan | constant 1/32 scan | constant 1/32 scan |
| Brightness/color temperature(9300K) | >800 cd/m2 | >800 cd/m2 | >800 cd/m2 | >800 cd/m2 | >800 cd/m2 |
| horizontal view angle | 140° |
| vertical view angle | 120° |
| mixmum view distance | > 1.5 m | > 2 m | > 3 m | > 2.5 m | > 2 m |
| Peak power consp. | < 800W/m2 | < 800W/m2 | < 800W/m2 | < 600W/m2 | < 800W/m2 |
| Average power consp. | < 260W/m2 | < 260W/m2 | < 260W/m2 | < 200W/m2 | < 260W/m2 |
| luminance uniformity | > 95% |
| Refresh frequency | ≥1200 Hz | ≥1200 Hz | ≥ 1200Hz | ≥ 1200Hz | ≥1200 Hz |
| Grey scale/colors | (14bit) |
| Brightness adjustment | 256 level adjustment |
| color temperature | 3000 K ~ 10000 K |
| screen life(h) | ≥ 50000 Hours |
| work temperature | -10 ºC ~ +50 ºC |
| work humidity | 10% ~ 90% RH |
| work voltage | AC 220 V ± 10% or AC 110 V ± 10% |
| software | Windows XP,Windows 7,HuaXia broadcast studio |
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
