| Prod Model: |
HX-P1.875 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Pixel: |
1.875mm |
| Module Size: |
120mm120mm |
| Cabinet Size: |
480mm X 480mm |
| High Resolution: |
280000dots/Sqm |
| IC Brand: |
Jxi5020 |
| LED Chip: |
Epistar&Sanan |
| Life Time: |
About 100, 000hours |
| Warranty: |
Full 2 Years |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP54 |
| Certification: |
ETL |
| Pixel Pitch: |
1.875mm |
| Pixel Density: |
280000dots/Sqm |
| Scanning Mode: |
1/32scan |

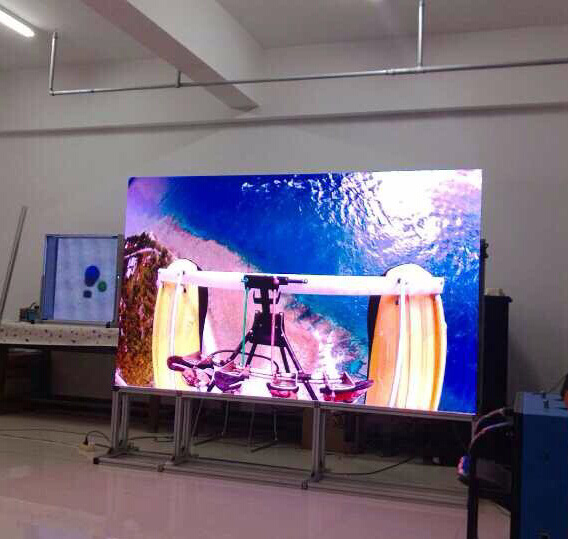

Product Description
Indoor features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable
| Item | Parameters |
| Pixel Pitch(mm) | 1.875mm |
| Pixel Configuration | COB 3-in-1 |
| Pixel Density(pixels/) | 284444 |
| Module Size(mm) | 240*240 |
| Module Size(inch) | 9.45*9.45 |
| Module Pixel Resolution | 128dots(W)*128dots(H) |
| Module Weight | 0.6kg |
| Module thickness | 13.07mm |
| LED Type | INTEEGRATION 3IN1 -1010 |
| Cabinet Size(mm) | 480*480 |
| Cabinet Size(inch) | 18.90*18.90 |
| Cabinet Pixel Resolution | 256dots(W)*256dots(H) |
| Flatness of Cabinet | ≤1mm |
| Cabinet Surface Area() | 0.2304 |
| Cabinet Thickness | 85mm |
| Brightness(nits) | ≥800cd/ |
| Brightness Uniformity | ≥97% |
| Drive Method | 1/32scan |
| Port Type | HUB75-A |
| Viewing Angle(Deg.) | H: 120/ W: 160 |
| Best Viewing Distance | 2M~10M |
| Average Power Consumption(W/) | 260W/ |
| Max Power Consumption(W/) | ≤800W/ |
| Protection Grade(Front/Rear) | IP40 |
| Working Voltage | AC220V±10% |
| Refresh Rate(Hz) | ≥600 |
| Grey Level(bit) | 16 |
| Operating Temperature/Humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage Temperature/ Humidity | temperature:-35ºC~ 85ºC humidity:10~95%RH |
| Operation System | WIN98/2000/NT/XP/WIN7 |
| Lifetime(Half Brightness) | 100,000hours |
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
