| Prod Model: |

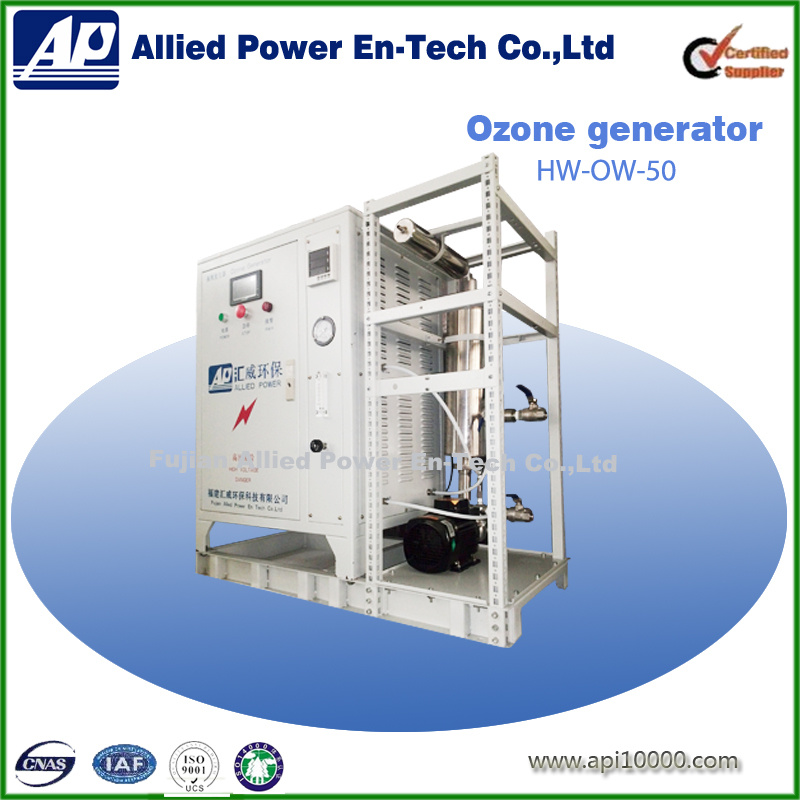

HW-OW-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Efficient Filtration |
| Motive Force: |
Electric Power |
| Usage: |
Chemical Industry, Water Treatment |
| Style: |
Micro-Gap Corona Discharge +Quartz Glass Tube |
| Model Number: |
Hw-Ow-50 |
| Ozone Output: |
50g/H |
| Ozone Concentration: |
100mg/L |
| Ozone Water Concentration: |
1-10ppm |
| Air Flow Rate: |
0.5m3/H |
| Rated Power: |
3.5kw |
Product Description
Product Description
Item NO. |
Output |
Concentration |
Rated
power |
Air flow rate | Flow Of Cooling Water | Air dew point |
Power
supply
(V/Hz) |
Weight |
| HW-A-300 | 300g/h | 20mg/L | 5.1kw | 15m3/h | 1.2m3/h | -45° | 380V/50HZ | 250kg |
Technical details
High frequency invert power supply system with own international patents.
Micro-gap corona discharge technology, quartz glass tubes honeycomb discharge.
Water cooling system.
Pure oxygen or air as gas feed.
Stainless steel ozone reaction cavity and discharging tubes.
Wecon PLC micro computer control, touch screen human-machine display.
Multiple proteftion designs in case of over current,overvoltage, overheeated, high and low air pressure.
Efficiency& reliable
Power factor>0.95.
PFC≥0.95
The adverage power consumption of per kilogramozone output is about 7 degree.
Ozone concentration could reach 230mg/l with pure oxygen asgas feed.
Multiple abnormality protection. Light alarm system.
Easy operatiion
Ozone concentration adjustable.
Ozone production adjustable.
Time switch machine Settings, realize unattended.
Transport gas without any external equipments during certain scope.
Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.
About Us
With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.
Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.
Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.
Catalogue
Air supply Ozone generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-A-10 | 10g | 0.1m3/h | 0.2kw | 8.3N*L/min |
| HW-A-20 | 20g | 0.1m3/h | 0.4kw | 16.7N*L/min |
| HW-A-30 | 30g | 0.1m3/h | 0.6kw | 25N*L/min |
| HW-A-50 | 50g | 0.2m3/h | 1kw | 41.7N*L/min |
| HW-A-80 | 80g | 0.3m3/h | 1.5kw | 66.7N*L/min |
| HW-A-100 | 100g | 0.4m3/h | 1.7kw | 83.3N*L/min |
| HW-A-150 | 150g | 0.6m3/h | 2.5kw | 7.5N*m3/h |
| HW-A-200 | 200g | 0.8m3/h | 3.4kw | 10N*m3/h |
| HW-A-250 | 250g | 1m3/h | 4.4kw | 12.5N*m3/h |
| HW-A-300 | 300g | 1.2m3/h | 5.1kw | 15N*m3/h |
| HW-A-500 | 500g | 2m3/h | 8.5kw | 25N*m3/h |
| HW-A-800 | 800g | 3.2m3/h | 136kw | 40N*m3/h |
| HW-A-1K | 1kg | 4m3/h | 17kw | 50N*m3/h |
| HW-A-1.2K | 1.2kg | 5m3/h | 21kw | 60N*m3/h |
| HW-A-1.5K | 1.5kg | 6m3/h | 26kw | 75N*m3/h |
| HW-A-3K | 3kg | 12m3/h | 51kw | 150N*m3/h |
| HW-A-5K | 5kg | 20m3/h | 85kw | 250N*m3/h |
| HW-A-10K | 10kg | 40m3/h | 170kw | 500N*m3/h |
| HW-A-20K | 20kg | 80m3/h | 340kw | 1000N*m3/h |
Oxygen supply ozone generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-O-10 | 10g | 0.1m3/h | 0.1kw | 1.7N*L/min |
| HW-O-20 | 20g | 0.1m3/h | 0.2kw | 3.3N*L/min |
| HW-O-30 | 30g | 0.1m3/h | 0.3kw | 5N*L/min |
| HW-O-50 | 50g | 0.1m3/h | 0.5kw | 8.3N*L/min |
| HW-O-80 | 80g | 0.15m3/h | 0.8kw | 13.3N*L/min |
| HW-O-100 | 100g | 0.2m3/h | 0.9kw | 16.7N*L/min |
| HW-O-200 | 200g | 0.4m3/h | 1.8kw | 2N*m3/h |
| HW-O-300 | 300g | 1m3/h | 2.5kw | 3N*m3/h |
| HW-O-500 | 500g | 1m3/h | 4.3kw | 5N*m3/h |
| HW-O-700 | 700g | 1.4m3/h | 6kw | 7N*m3/h |
| HW-O-800 | 800g | 1.6m3/h | 7kw | 8N*m3/h |
| HW-O-1K | 1kg | 2m3/h | 8.5kw | 10N*m3/h |
| HW-O-2K | 2kg | 4m3/h | 17kw | 20N*m3/h |
| HW-O-2.5K | 2.5kg | 5m3/h | 22kw | 25N*m3/h |
| HW-O-3K | 3kg | 6m3/h | 26kw | 30N*m3/h |
| HW-O-5K | 5kg | 10m3/h | 45kw | 50N*m3/h |
| HW-O-10K | 10kg | 20m3/h | 85kw | 100N*m3/h |
| HW-O-30K | 30kg | 60m3/h | 260kw | 300N*m3/h |
| HW-O-50K | 50kg | 100m3/h | 440kw | 500N*m3/h |
Ozone water generator
Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-OW-10 | 10g | 0.1m3/h | 0.8kw | 1.7N*L/min |
| HW-OW-20 | 20g | 0.1m3/h | 0.9kw | 3.3N*L/min |
| HW-OW-30 | 30g | 0.1m3/h | 1.1kw | 5N*L/min |
| HW-OW-50 | 50g | 0.1m3/h | 2.2kw | 8.3N*L/min |
