| Prod Model: |
HW-A-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

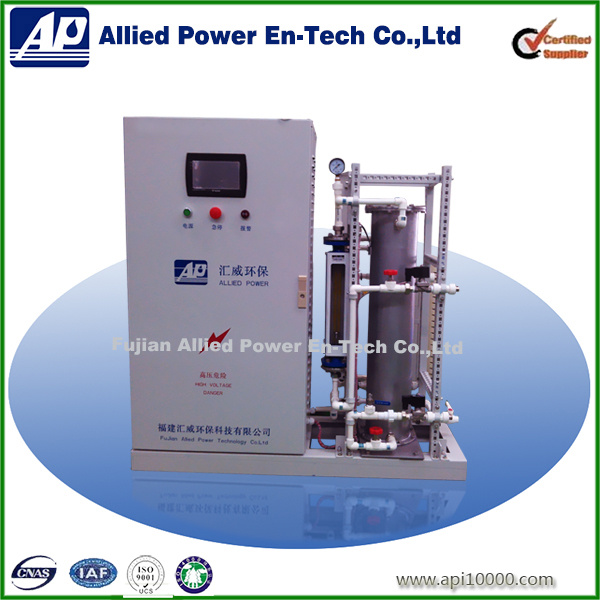

Ozone Generator |
| Output: |
100g/H |
| Rated Power: |
1.9kw |
| Concentration: |
35mg/L |
| Air Flow Rate: |
46L/Min |
| Flow Of Cooling Water: |
0.4m3/H |
| Gas Feed: |
Air |
| Air Dew Point: |
-45 |
| Size: |
900X700X1560mm |
| Powe Supply: |
380V/50Hz |
| Installation: |
According Clients Requires |
Product Description
| Item NO. | Output | Concentration | Rated power | Air flow rate | Flow Of Cooling Water | Air dew point | Power supply (V/Hz) | Weight |
| HW-A-100 | 100g | 35mg/L | 1.9kw | 46L/min | 0.4m3/h | -45° | 350/50 | 130kg |
Technical details
High frequency invert power supply system with own international patents.
Micro-gap corona discharge technology, quartz glass tubes honeycomb discharge.
Water cooling system.
Pure oxygen or air as gas feed.
Stainless steel ozone reaction cavity and discharging tubes.
Wecon PLC micro computer control, touch screen human-machine display.
Multiple proteftion designs in case of over current,overvoltage, overheeated, high and low air pressure.
Efficiency& reliable
Power factor>0.95.
PFC≥0.95
The adverage power consumption of per kilogramozone output is about 7 degree.
Ozone concentration could reach 230mg/l with pure oxygen asgas feed.
Multiple abnormality protection. Light alarm system.
Easy operatiion
Ozone concentration adjustable.
Ozone production adjustable.
Time switch machine Settings, realize unattended.
Transport gas without any external equipments during certain scope.
Group control function, digital remote monitoring
Real-time analysis and system failure diagnosis.
About Us
With advanced technology, mighty R&D and hard work, Allied Power base on ozone generating mechanism and ozone application research, ozone equipment manufacturing, devote to environmental protection, against industrial pollution.
Allied Power has developed most efficient and reliable ozone generator with output from 10g/h to 50kg/h. Our ozone generators adopt medium dielectric barrier corona discharge (DBCD) technology, quartz glass tubes with micro-discharge chamber and SS304 tubes as dielectric medium, ensure high ozone concentration, stable operation. Not only high technology in ozone generating mechanism, we also own international patents on soft-switch power system. Our high frequency inverters power rated could over 440KW, high frequency reach 30KHZ.
Being applications in drinking water, wastewater, process water, industrial oxidation , bleaching, deodorization, waste gas treatment, space disinfection etc., our products have widely used in North America, South America, South-East Asia, Middle East and Europe.
Catalogue
Air supply Ozone generator
| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-A-10 | 10g | 0.1m3/h | 0.2kw | 8.3N*L/min |
| HW-A-20 | 20g | 0.1m3/h | 0.4kw | 16.7N*L/min |
| HW-A-30 | 30g | 0.1m3/h | 0.6kw | 25N*L/min |
| HW-A-50 | 50g | 0.2m3/h | 1kw | 41.7N*L/min |
| HW-A-80 | 80g | 0.3m3/h | 1.5kw | 66.7N*L/min |
| HW-A-100 | 100g | 0.4m3/h | 1.7kw | 83.3N*L/min |
| HW-A-150 | 150g | 0.6m3/h | 2.5kw | 7.5N*m3/h |
| HW-A-200 | 200g | 0.8m3/h | 3.4kw | 10N*m3/h |
| HW-A-250 | 250g | 1m3/h | 4.4kw | 12.5N*m3/h |
| HW-A-300 | 300g | 1.2m3/h | 5.1kw | 15N*m3/h |
| HW-A-500 | 500g | 2m3/h | 8.5kw | 25N*m3/h |
| HW-A-800 | 800g | 3.2m3/h | 136kw | 40N*m3/h |
| HW-A-1K | 1kg | 4m3/h | 17kw | 50N*m3/h |
| HW-A-1.2K | 1.2kg | 5m3/h | 21kw | 60N*m3/h |
| HW-A-1.5K | 1.5kg | 6m3/h | 26kw | 75N*m3/h |
| HW-A-3K | 3kg | 12m3/h | 51kw | 150N*m3/h |
| HW-A-5K | 5kg | 20m3/h | 85kw | 250N*m3/h |
| HW-A-10K | 10kg | 40m3/h | 170kw | 500N*m3/h |
| HW-A-20K | 20kg | 80m3/h | 340kw | 1000N*m3/h |
Oxygen supply ozone generator| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-O-10 | 10g | 0.1m3/h | 0.1kw | 1.7N*L/min |
| HW-O-20 | 20g | 0.1m3/h | 0.2kw | 3.3N*L/min |
| HW-O-30 | 30g | 0.1m3/h | 0.3kw | 5N*L/min |
| HW-O-50 | 50g | 0.1m3/h | 0.5kw | 8.3N*L/min |
| HW-O-80 | 80g | 0.15m3/h | 0.8kw | 13.3N*L/min |
| HW-O-100 | 100g | 0.2m3/h | 0.9kw | 16.7N*L/min |
| HW-O-200 | 200g | 0.4m3/h | 1.8kw | 2N*m3/h |
| HW-O-300 | 300g | 1m3/h | 2.5kw | 3N*m3/h |
| HW-O-500 | 500g | 1m3/h | 4.3kw | 5N*m3/h |
| HW-O-700 | 700g | 1.4m3/h | 6kw | 7N*m3/h |
| HW-O-800 | 800g | 1.6m3/h | 7kw | 8N*m3/h |
| HW-O-1K | 1kg | 2m3/h | 8.5kw | 10N*m3/h |
| HW-O-2K | 2kg | 4m3/h | 17kw | 20N*m3/h |
| HW-O-2.5K | 2.5kg | 5m3/h | 22kw | 25N*m3/h |
| HW-O-3K | 3kg | 6m3/h | 26kw | 30N*m3/h |
| HW-O-5K | 5kg | 10m3/h | 45kw | 50N*m3/h |
| HW-O-10K | 10kg | 20m3/h | 85kw | 100N*m3/h |
| HW-O-30K | 30kg | 60m3/h | 260kw | 300N*m3/h |
| HW-O-50K | 50kg | 100m3/h | 440kw | 500N*m3/h |
Ozone water generator| Product Model | Ozone Output | Flow Of Cooling Water | Rated Power | Air flow rate |
| HW-OW-10 | 10g | 0.1m3/h | 0.8kw | 1.7N*L/min |
| HW-OW-20 | 20g | 0.1m3/h | 0.9kw | 3.3N*L/min |
| HW-OW-30 | 30g | 0.1m3/h | 1.1kw | 5N*L/min |
| HW-OW-50 | 50g | 0.1m3/h | 2.2kw | 8.3N*L/min
|
Based on ozone technology, Fujian Allied Power EnTech Co., Ltd is a new high-technology enterprise which specializes in the line of ozone generation mechanism, ozone application, ozone material research and ozone equipment making. We cater to diversified industries and applications, which includes drinking water treatment, sewage treatment, swimming pools, public fields in hospital, pharmacy, paper making, printing and dyeing, etc. With an experienced Research & Development team, the company creates and produces the full series of ozone equipment based on the advanced technology and the right market location. We have the intellectual property of the whole series of ozone equipment core accessories. In a full range from the inverter to ozone discharge system, we apply a series of patented technology; We solve the matching problem between the power supply and discharge system to the full extent; We advance the efficiency and concentration of ozone generation. Then, the overall system of ozone generator has been recognized and appreciated by a lot of customers for its excellent reliability. Our company puts its business creed as "Allied technology, perfect quality. " We dedicates ourselves to the manufacture and technology innovation of ozone equipment and do our best for economic development and environmental protection.
