| Prod Model: |
RAN-1000CF |
| Style: |
Headband |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Dynamic Headphones |
| Function: |
Two Way Radios/Walkie Talkies |
| Use: |
Industrial |
| Earpad Size: |
Small |
| Wire Material: |
PU |
| Jack Type: |
Depends on Radio Connector |
| Color: |
Black/Yellow/Blue/Carbon Fiber |
Product Description

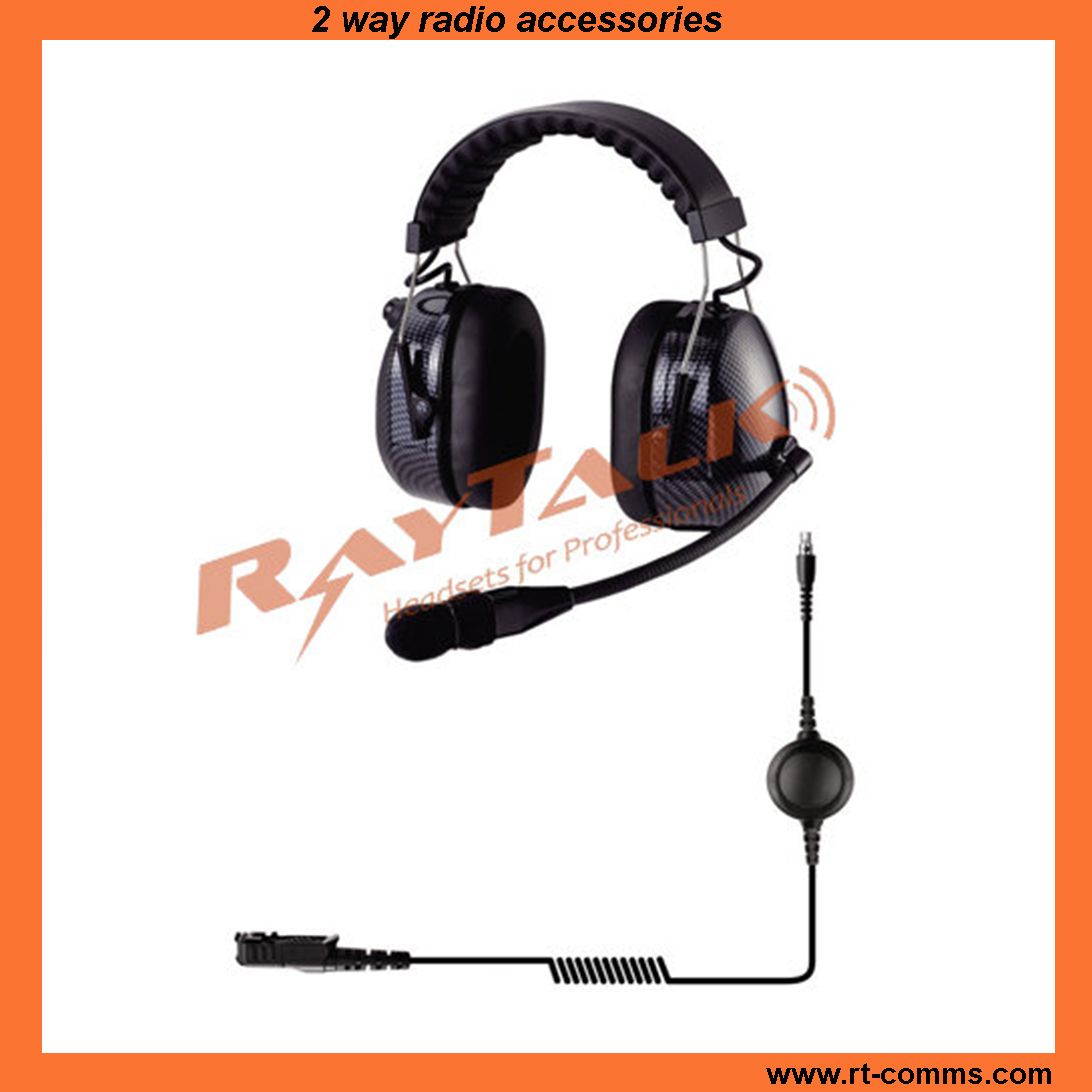

Carbon Fiber headset with dynamic microphone
Overhead Noise Canceling Radio Headset With Flexible Boom Microphone For All Walkie Talkies Communication
Ideal For Airport Tarmacs, Fans At Car Races, Construction Sites And Other Intense Noise Environment. For Motorola, Kenwood And Icom, Verter Yaesu, HYT, etc.
Specification
1.can be worn in most of the helmets.
2.Universal 5-pin cable connector port and 3.5 audio port
3.Quick release cable port, for easily attaching cables for any 2-way radio or Sprint/Nextel phone
4.Soft and wide sealing rings filled with a high density foam to offer optimum sealing and low pressure
5. Weather sealed PTT button with silicone rubber cover
6.Velcro adjustable headband and spring steel flake neckband.
| RAN1000 Series Racing Radio headset |
| 1 | Earphone | Size | Outer Diameter 50mm |
| Weight | 14.8 gram |
| Magnet | Materials Ferrite Size Φ20.5*4.5mm |
| Impedance | 32Ω At around 1KHz |
| Power Rating | Normal 30mW RMS
Maximum 100mW |
| Output Sound Pressure | 95±3dB /1mW /1cm
With Artificial ear per channel |
| Level | Average at 1.0K, 1.2K, 1.5K, 2.0KHz |
| Resonance Fo | 100Hz |
| Frequency Range | 100Hz~3000Hz |
| Distortion | 5% Maximum at 1KHz /1mW /1cm |
| Abnormal Sound Test | Must be Normal Tested by
3.0Voltage Sine Wave |
| Load test | 30mW RMS
White noise for 48hrs |
| 2 | Microphone | Type | Noise Cancelling Dynamic Mic. |
| Case Material | ABS Plastic |
| Sensitivity | 0°-71dB±3dB (at L=50cm)
(0dB=1V/Pa,1KHz) |
| Impedance | Low impedance 150Ω |
| Frequency | 150Hz~7000Hz |
| Pattern | Hypercardioid |
| 3 | Boom Type | Universal Flexible |
| 4 | Headband | Padded headband for increased comfort, Adjustable headband |
| 5 | Plug | Microphone&Earphone 5P Mini Chassis XLR Connector, Male |
| 6 | Colour | Black/Blue/Yellow/Carbon Fiber |
| 7 | Switch | Type | Push To Talk Button(PTT) |
| Case Material | ABS Plastic |
| Colour | Black/Blue/Red |
