| Prod Model: |
P5 SMD Outdoor Poster LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160*160 |
| Cabinet Size: |
800*1600 |
| Warranty: |
Two Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/16 Scan |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40000 DOT / Sqm |
| Average Power Consumption: |
500W/Sqm |
Product Description
Poster LED Display Application:

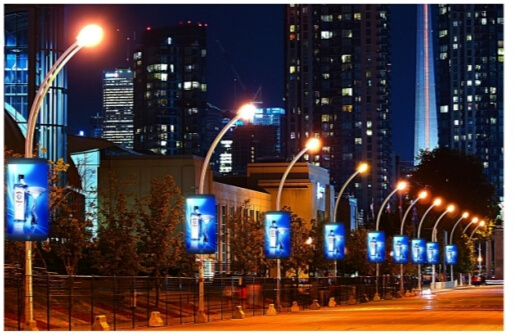

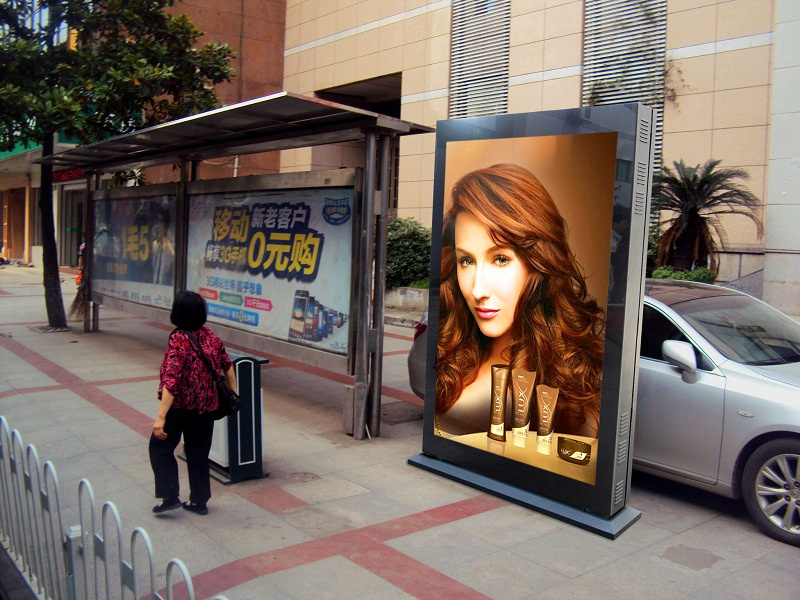

Outdoor advertising, Shopping mall, Street light pole, Pedestrian street
Detail specification Outdoor Poster LED Display
Item | Outdoor Poster LED Display |
| Pixel Pitch: | 5mm |
| Pixel Density: | 27777dot/m2 |
| Brightness: | ≥5000CD/m2 |
| LED Configuration: | SMD2727 |
| Viewing Angle | 120 |
| Refresh Rate: | 960HZ |
| IP Rating(F/B): | IP65 |
| Cabinet size: | 800X1600mm |
| LED Display Size | 800X1280mm |
| Environmental: | Outdoor |
| Cabinet weight: | 65kg |
| Operating temperature | -20ºC to +60ºC |
| Lifetime | 100,000 hours |

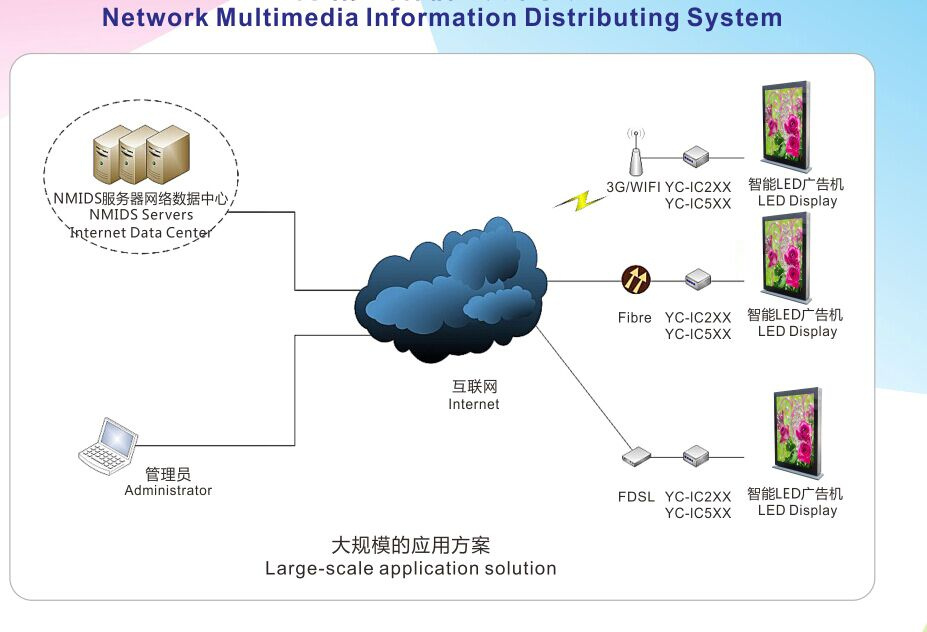

Wifi , 3G /4G intelligent management core modules inside, it can change advertisement any place , any time .
With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology to make a super wide viewing angle and a better surface evenness and stability.
RGB deep gray processing to show any color.
Support point correction function, ensure the consistency of the color and the brightness in the process of use.
Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.
Accurate, shortcut, flexile installation, can be applied to any different installation environment.
With the protection rating of IP65, face any bad weather.
Complete series, customized to satiny any requirements of customers.
With the professional aviation plug as the connectors ensure the quality
and safety.
With the high quality raw material, mature process and scale production,
the quality is ensured.
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
